ELECTRICAL/POWERTRAIN CONTROL for 2002 Toyota Sequoia

Select POWERTRAIN CONTROL Part

2002 Toyota Sequoia

Change vehicle

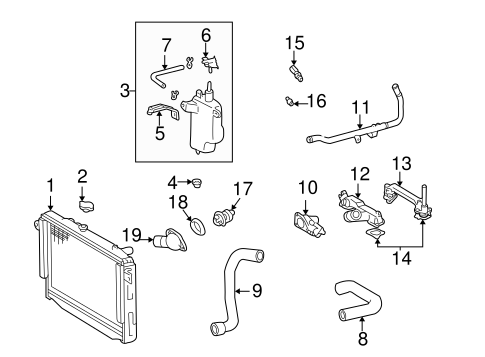

No. Part # Part # / Description List Price Price
1 16410-AZ012 16410-AZ012 / Radiator Assembly

$209.25 $153.72
2 16401-20353 16401-20353 / Cap

Radiator Cap

$14.96 $10.98
3 16470-0F010 16470-0F010 / Reservoir Assembly

$96.49 $70.77
4 90480-25025 90480-25025 / Reservoir Grommet

Reservoir Assembly Grommet

$10.54 $7.73
5 16402-0F010 16402-0F010 / Reservoir Assembly Bracket

$34.74 $25.47
6 16471-03010 16471-03010 / Reservoir Cap

$5.63 $4.12
7 90080-44115 90080-44115 / Overflow Hose

- -
8 16571-0F030 16571-0F030 / Upper Hose

- -
9 16572-0F010 16572-0F010 / Lower Hose

- -
10 16032-50110 16032-50110 / Thermostat Housing

Thermostat Hsng

$113.55 $83.29
11 16206-50120 16206-50120 / By-Pass Pipe

$62.61 $45.92
12 16355-50080 16355-50080 / By-Pass Valve

Joint

BY-PASS, FRONT

$141.13 $103.52
13 16356-50120 16356-50120 / By-Pass Pipe

Joint

BY-PASS, REAR

$97.63 $71.61
14 16341-50020 16341-50020 / Joint Gasket

Joint Gasket, RIGHT

$9.74 $7.15
14 16341-50020 16341-50020 / Joint Gasket

Joint Gasket, LEFT

$9.74 $7.15
15 89422-30030 89422-30030 / Temp Sensor

$72.15 $52.91
15 89422-30030 89422-30030 / Temp Sensor

Coolant Temp Sensor

SEQUOIA

$72.15 $52.91
16 83420-AA010 83420-AA010 / Sending Unit

WATER TEMP GAUGE

$35.74 $26.22
16 83420-AA010 83420-AA010 / Sending Unit

Temp Sending Unit

SEQUOIA

$35.74 $26.22
17 90916-03100 90916-03100 / Thermostat

$24.08 $17.65
18 16346-50010 16346-50010 / Thermostat Gasket

$5.03 $3.68
19 16321-0F010 16321-0F010 / Thermostat Housing

Thermostat Cover

$62.61 $45.92
No. Part # Part # / Description List Price Price
1 89465-34130 89465-34130 / Oxygen Sensor

Oxygen Sensor, RIGHT

FRONT, JAPAN BUILT

$204.71 $150.15
1 89465-34130 89465-34130 / Oxygen Sensor

SEQUOIA; FRONT; RIGHT

$204.71 $150.15
2 89465-34120 89465-34120 / Oxygen Sensor

Oxygen Sensor, LEFT

FRONT, JAPAN BUILT

$204.71 $150.15
2 89465-34120 89465-34120 / Oxygen Sensor

SEQUOIA; FRONT; LEFT

$204.71 $150.15
3 89465-09310 89465-09310 / Oxygen Sensor

Oxygen Sensor, RIGHT

REAR, 4WD

$178.75 $131.11
3 89465-09310 89465-09310 / Oxygen Sensor

SEQUOIA; REAR; 4WD; RIGHT

$178.75 $131.11
4 89465-09320 89465-09320 / Oxygen Sensor

Oxygen Sensor, LEFT

REAR, 4WD

$178.75 $131.11
4 89465-09320 89465-09320 / Oxygen Sensor

SEQUOIA; REAR; 4WD; LEFT

$178.75 $131.11
5 89466-20020-83 89466-20020-83 / Sensor Gasket

Oxygen Sensor Gasket, RIGHT

$7.24 $5.31
5 89466-20020-83 89466-20020-83 / Sensor Gasket

Oxygen Sensor Gasket, LEFT

$7.24 $5.31
6 89437-60030 89437-60030 / Oxygen Sensor Cover

Oxygen Sensor Cover, LEFT

$17.47 $12.81
6 89437-60030 89437-60030 / Oxygen Sensor Cover

Oxygen Sensor Cover, RIGHT

$17.47 $12.81
7 77740-0C011 77740-0C011 / Vapor Canister

$367.29 $269.39
8 77751-0C010 77751-0C010 / Vapor Canister Bracket

$16.66 $12.22
9 77752-0C010 77752-0C010 / Vapor Canister Support

$12.58 $9.24
10 77754-0C020 77754-0C020 / Vacuum Hose

$34.97 $25.64
No. Part # Part # / Description List Price Price
1 13407-50090 13407-50090 / Crankshaft Damper

2001-04

$298.53 $218.95
2 90109-18003 90109-18003 / Crankshaft Damper Bolt

2001-04

$9.80 $7.19
3 13521-0F010 13521-0F010 / Timing Gear Set

Crank Pulley

2001-04

$43.50 $31.90
4 11304-AC010 11304-AC010 / Front Cover

Upper Timing Cover, RIGHT

2001-04

$84.53 $62.00
5 11308-AC010 11308-AC010 / Front Cover

Upper Timing Cover, LEFT

2001-04

$88.06 $64.59
6 11303-AC010 11303-AC010 / Front Cover

Center Timing Cover

2001-04

$51.29 $37.61
7 11302-AC010 11302-AC010 / Front Cover

Lower Timing Cover

2001-04

$62.26 $45.66
8 11338-AC010 11338-AC010 / Timing Cover Gasket

Lower Timing Cover Gasket

2001-04

$4.74 $3.48
9 11348-AC010 11348-AC010 / Spacer

Lower Timing Cover Spacer

2001-04

$10.23 $7.50
10 11341-50030 11341-50030 / Front Cover

Inner Cover, RIGHT

2001-04

$21.61 $15.85
11 11342-50030 11342-50030 / Front Cover

Inner Cover, LEFT

2001-04

$21.61 $15.85
12 13568-09070 13568-09070 / Timing Belt

2001-04

$62.32 $45.71
13 13523-50040 13523-50040 / Timing Gear Set

Timing Pulley, RIGHT

2001-04

$73.99 $54.27
14 13056-50030 13056-50030 / Timing Gear Set

Timing Pulley, LEFT

2001-04

$103.64 $76.02
15 13505-0F010 13505-0F010 / Tensioner Pulley

Pulley

2001-04, IDLER

$111.42 $81.73
16 13503-0F010 13503-0F010 / Tensioner Pulley

Pulley

2001-04, TENSIONER

$111.77 $81.97
17 13540-50030 13540-50030 / Belt Tensioner

2001-04

$67.00 $49.14
18 13553-50020 13553-50020 / Belt Tensioner Dust Shield

2001-04

$8.02 $5.88
19 15100-0F010 15100-0F010 / Oil Pump

2001-04

$85.28 $62.55
20 90919-A5001 90919-A5001 / Crankshaft Position Sensor

Crankshaft Sensor

2001-04

$135.10 $99.09
20 90919-A5001 90919-A5001 / Crankshaft Position Sensor

SEQUOIA

$135.10 $99.09
21 11202-0F010 11202-0F010 / Valve Cover

Valve Cover, LEFT

2001-04

$275.83 $202.31
21 11201-50041 11201-50041 / Valve Cover

Valve Cover, RIGHT

2001-04

$282.96 $207.53
22 11193-70010 11193-70010 / Valve Cover Gasket

Valve Cover Gasket, RIGHT

2001-04, SPARK PLUG TUBE

$3.51 $2.57
22 11193-70010 11193-70010 / Valve Cover Gasket

Valve Cover Gasket, LEFT

2001-04, SPARK PLUG TUBE

$3.51 $2.57
23 11214-50011 11214-50011 / Valve Cover Gasket

Valve Cover Gasket, LEFT

2001-04, VALVE COVER

$17.96 $13.18
23 11213-50031 11213-50031 / Valve Cover Gasket

Valve Cover Gasket, RIGHT

2001-04, VALVE COVER

$17.96 $13.18
24 12185-50020 12185-50020 / Oil Filler Tube

2001-04

$49.88 $36.59
25 12180-50031 12180-50031 / Filler Cap

2001-04

$11.84 $8.69
26 12196-50010 12196-50010 / Oil Filler Tube Gasket

Filler Cap Gasket

2001-04, OIL FILLER TUBE

$7.79 $5.71
27 12195-50010 12195-50010 / Filler Cap Gasket

2001-04, FILLER CAP

$7.93 $5.82
28 12111-50112 12111-50112 / Oil Pan

2001-04, UPPER

$256.81 $188.36
29 12102-0F010 12102-0F010 / Oil Pan

2001-04, LOWER

$249.14 $182.73
30 12121-50141 12121-50141 / Baffle Plate

2001-04

$41.37 $30.34
31 15301-0F010 15301-0F010 / Dipstick

2001-04

$17.76 $13.03
32 11452-0F010 11452-0F010 / Oil Tube

2001-04

$30.34 $22.25
33 90915-YZZD3 90915-YZZD3 / Oil Filter

SEQUOIA

$5.41 $3.95
34 15609-50110 15609-50110 / Flange

2001-04

$55.19 $40.48
35 15692-50020 15692-50020 / Flange Gasket

2001-04

$1.12 $0.82
No. Part # Part # / Description List Price Price
layer_4 89465-09300 89465-09300 / Oxygen Sensor

SEQUOIA; REAR; 2WD

$178.75 $131.11
layer_8 90080-87010 90080-87010 / Relay Box Relay

ECM Relay

SEQUOIA

$29.19 $21.41
No. Part # Part # / Description List Price Price
N/A 89452-30140 89452-30140 / Throttle Position Sensor

TUNDRA, SEQUOIA; 4.7L

$105.33 $77.26
layer_4 89615-52010 89615-52010 / Knock Sensor

SEQUOIA

$209.40 $153.59
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
