STEERING/STEERING COLUMN ASSEMBLY for 2002 Toyota Prius

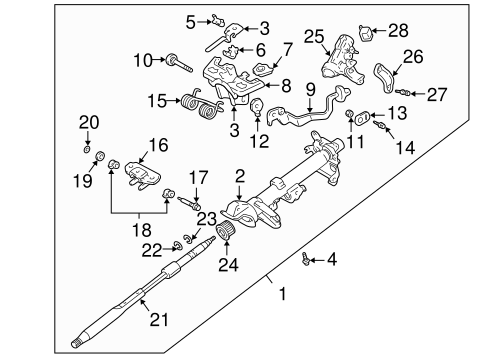

Select STEERING COLUMN ASSEMBLY Part

2002 Toyota Prius

Change vehicle

No. Part # Part # / Description List Price Price
1 45250-47020-BO 45250-47020-BO / Column Assembly

- -
2 45205-47020 45205-47020 / Jacket

Tube

$98.44 $72.20
3 45257-12070 45257-12070 / Plate

$6.23 $4.58
4 90119-10478 90119-10478 / Plate Mount Bolt

$3.05 $2.23
5 45875-06010 45875-06010 / Energy Absorber Pin

Plate Pin

$2.18 $1.60
6 45246-12110 45246-12110 / Plate Guide

$2.44 $1.79
7 45879-12050 45879-12050 / Pad

BREAKAWAY

$17.47 $12.81
8 45878-12220 45878-12220 / Upper Bracket

$37.15 $27.24
9 45826-47020-B0 45826-47020-B0 / Tilt Lever

$31.98 $23.46
10 45831-12020 45831-12020 / Tilt Lever Adjust Bolt

$8.73 $6.41
11 45833-12010 45833-12010 / Tilt Lever Nut

$1.78 $1.31
12 45827-12030 45827-12030 / Lever

$4.60 $3.37
13 45821-12010 45821-12010 / Reinforcement

$1.49 $1.10
14 45832-12010 45832-12010 / Reinforcement Bolt

$3.99 $2.93
15 90949-03027 90949-03027 / Column Housing Spring

Spring

$17.76 $13.03
16 45277-20110 45277-20110 / Lower Bracket

- -
17 45897-12040 45897-12040 / Lower Bracket Adjust Bolt

$8.13 $5.97
18 45813-12010 45813-12010 / Lower Bracket Collar

$1.41 $1.04
19 94613-10601 94613-10601 / Tilt Lever Washer

Lower Bracket Washer

$1.41 $1.04
20 94183-60601 94183-60601 / Lower Bracket Nut

$0.95 $0.70
21 45210-47011 45210-47011 / Steering Shaft

$441.24 $323.63
22 90520-17042 90520-17042 / Main-Shaft Snap Ring

Steering Shaft Snap Ring

LOWER

$1.24 $0.90
23 90520-17269 90520-17269 / Snap Ring

Steering Shaft Snap Ring

UPPER

$1.87 $1.37
24 45273-12020 45273-12020 / Bushing

$9.86 $7.22
25 45280-47010 45280-47010 / Upper Bracket

$256.78 $188.34
26 45271-16020 45271-16020 / Upper Bracket Clamp

$10.72 $7.86
27 45897-12020 45897-12020 / Column Assembly Lock Bolt

Upper Bracket Bolt

$3.96 $2.90
28 85432-47010 85432-47010 / Solenoid

KEY INTERLOCK

$98.32 $72.11
