MAINTENANCE & LUBRICATION/FILTERS for 2002 Toyota Echo

Select FILTERS Part

2002 Toyota Echo

Change vehicle

No. Part # Part # / Description List Price Price
1 13407-21020 13407-21020 / Crankshaft Pulley

$278.70 $204.41
2 90119-12345 90119-12345 / Crankshaft Pulley Bolt

$3.96 $2.90
3 90250-03095 90250-03095 / Crankshaft Pulley Pin

$0.12 $0.09
4 15100-21042 15100-21042 / Oil Pump

ASSEMBLY

$152.21 $111.64
5 15111-21042 15111-21042 / Oil Pump

COVER

$44.22 $32.43
6 15103-21020 15103-21020 / Gear Set

Oil Pump

GEAR ASSEMBLY

$54.82 $40.21
7 15115-21030 15115-21030 / Oil Pump

COVER PLATE

$14.88 $10.92
8 15131-21020 15131-21020 / Pressure Valve

Oil Pump

PRESSURE VALVE

$5.09 $3.73
9 15132-21020 15132-21020 / Oil Pump Spring

$1.95 $1.43
10 15133-21020 15133-21020 / Oil Pump Plug

$3.16 $2.32
11 90311-25032 90311-25032 / Front Cover Seal

Front Seal

$9.45 $6.93
12 11201-21051 11201-21051 / Valve Cover

INNER

$333.90 $244.90
13 11212-21032 11212-21032 / Upper Cover

Valve Cover

OUTER

$123.81 $90.80
14 11213-21011 11213-21011 / Valve Cover Gasket

$20.44 $14.99
15 12180-21021 12180-21021 / Filler Cap

$11.84 $8.69
16 90430-37140 90430-37140 / Filler Cap Gasket

Filler Cap O-Ring

$2.38 $1.74
17 15301-21061 15301-21061 / Gage Sub-Assembly Oil L

Dipstick

$15.98 $11.71
18 11452-21030 11452-21030 / Tube

$19.16 $14.05
19 96721-19010 96721-19010 / Guide Tube O-Ring

Tube O-Ring

$2.44 $1.79
20 12111-21033 12111-21033 / Oil Pan

UPPER, FROM 4/01

$493.62 $362.05
21 12102-21010 12102-21010 / Oil Pan

LOWER

$70.37 $51.61
22 90126-A0004 90126-A0004 / Oil Cooler Stud

Oil Pan Stud

$1.41 $1.04
23 90182-A0010 90182-A0010 / Oil Pan Nut

$0.95 $0.70
24 90080-11289 90080-11289 / Oil Pan Bolt

$0.86 $0.63
25 90341-12012 90341-12012 / Drain Plug

$5.03 $3.68
26 90430-12031 90430-12031 / Drain Plug Gasket

$1.13 $0.83
27 90915-YZZF2 90915-YZZF2 / Oil Filter

ECHO

$5.41 $3.95
28 17120-21020 17120-21020 / Intake Manifold

ECHO; FROM 11/01

$228.13 $167.32
29 17177-21030 17177-21030 / Manifold Gasket

Intake Manifold Gasket

$16.17 $11.86
29 17177-21030 17177-21030 / Manifold Gasket

ECHO

$16.17 $11.86
30 22271-21020 22271-21020 / Intake Manifold Seal

$3.53 $2.59
30 22271-21020 22271-21020 / Intake Manifold Seal

Gasket

ECHO; TO 11/01

$3.53 $2.59

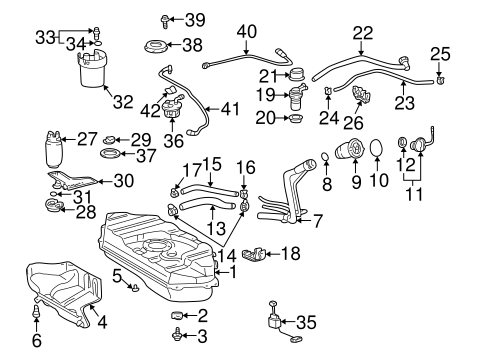

No. Part # Part # / Description List Price Price
1 77001-52050 77001-52050 / Fuel Tank

- -
2 77113-52010 77113-52010 / Fuel Tank Mount Plate

$7.99 $5.86
3 90119-A0318 90119-A0318 / Reinforced Beam Bolt

Fuel Tank Bolt

$1.41 $1.04
4 77606-52040 77606-52040 / Tank Shield

$103.29 $75.76
5 77299-06070 77299-06070 / Tank Shield Clip

$1.95 $1.43
6 77283-52010 77283-52010 / Tank Shield Plug

$1.95 $1.43
7 77201-52060 77201-52060 / Filler Pipe

$158.46 $116.22
8 77391-02040 77391-02040 / Pocket O-Ring

Filler Pipe O-Ring

$2.93 $2.15
9 77291-52040 77291-52040 / Shield

$32.41 $23.77
10 77391-52010 77391-52010 / Shield O-Ring

$3.56 $2.61
11 77300-53010 77300-53010 / Filler Cap

Fuel Cap

FROM 5/00

$25.92 $19.01
12 77316-16010 77316-16010 / Fuel Cap Gasket

$16.58 $12.16
13 77213-52040 77213-52040 / Hose

$47.03 $34.50
14 90460-37003 90460-37003 / Connector Hose Clamp

Hose Clamp

$4.77 $3.50
15 95327-04026 95327-04026 / Connector Hose

$9.34 $6.84
16 96132-41000 96132-41000 / Vent Hose Clamp

Connector Hose Clamp

SPRING TYPE

$1.70 $1.24
17 90460-22001 90460-22001 / Connector Hose Clamp

WORM TYPE

$7.18 $5.27
18 77281-52010 77281-52010 / Clamp

$13.62 $9.99
19 77390-52010 77390-52010 / Check Valve

$43.85 $32.16
20 77177-33010 77177-33010 / Gasket

Check Valve Gasket

$12.90 $9.47
21 77393-52010 77393-52010 / Check Valve Protector

$18.04 $13.24
22 77404-52010 77404-52010 / Vent Hose

$23.27 $17.07
23 95327-08055 95327-08055 / Tube

$27.44 $20.13
25 96132-51300 96132-51300 / Vapor Hose Clamp

Tube Clamp

TO FILLER PIPE

$2.18 $1.60
26 77285-52030 77285-52030 / Retainer

$15.89 $11.65
27 23221-21060 23221-21060 / Fuel Pump

$343.09 $251.65
28 23249-0A020 23249-0A020 / Fuel Pump Cushion

$18.39 $13.49
29 77175-47010 77175-47010 / Fuel Pump Support

$13.02 $9.55
30 23217-21030 23217-21030 / Fuel Filter

Fuel Strainer

$12.21 $8.95
30 23217-21030 23217-21030 / Fuel Filter

ECHO; IN TANK; FOR FUEL PUMP

$12.21 $8.95
31 23219-03010 23219-03010 / Fuel Strainer Clip

$1.12 $0.82
32 23300-0A020 23300-0A020 / Fuel Filter

ECHO; IN TANK; FOR FUEL TANK

$38.23 $28.04
33 23280-22010 23280-22010 / Fuel Pressure Regulator

Pressure Reg

$151.39 $111.04
33 23280-22010 23280-22010 / Fuel Pressure Regulator

ECHO

$151.39 $111.04
34 90301-07020 90301-07020 / Pressure Reg O-Ring

$3.96 $2.90
35 83320-52070 83320-52070 / Fuel Gauge Sending Unit

Fuel Sender Unit

$77.81 $57.07
35 83320-52070 83320-52070 / Fuel Gauge Sending Unit

ECHO

$77.81 $57.07
36 77024-52030 77024-52030 / Plate

$58.70 $43.05
37 77169-33020 77169-33020 / Fuel Pump Gasket

Plate Gasket

$15.37 $11.27
38 77168-52010 77168-52010 / Fuel Pump Retainer Plate

Cover

$17.10 $12.54
39 90159-A0022 90159-A0022 / Cover Bolt

$1.09 $0.81
40 77027-52030 77027-52030 / Tube Assembly

TO VAPOR CANISTER

$23.27 $17.07
41 77209-52020 77209-52020 / Tube Assembly

TO ENGINE

$21.15 $15.51
42 77241-06020 77241-06020 / Suction Tube Retainer Clip

Tube Assembly Clip

$1.18 $0.87
