FRONT SUSPENSION/SUSPENSION COMPONENTS for 2002 Toyota Celica

Select SUSPENSION COMPONENTS Part

2002 Toyota Celica

Change vehicle

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2002 Toyota Celica #1
No. Part # Part # / Description List Price Price
N/A 43502-32080 43502-32080 / Hub Assembly

Front Hub

CELICA

$130.90 $98.18
1 90080-36136 90080-36136 / Bearing

Front Wheel Bearing

CELICA

$59.07 $44.30
3 43212-39025 43212-39025 / Knuckle

CELICA; LEFT; W/O ABS

$262.24 $196.68
3 43212-32120 43212-32120 / Knuckle

CELICA; LEFT; W/ABS

$262.24 $196.68
3 43211-39035 43211-39035 / Knuckle

CELICA; RIGHT; W/O ABS

$262.24 $196.68
3 43211-32120 43211-32120 / Knuckle

CELICA; RIGHT; W/ABS

$262.24 $196.68
4 48068-20381 48068-20381 / Lower Control Arm

CELICA; RIGHT; FROM 10/99

$211.81 $158.86
4 48069-20381 48069-20381 / Lower Control Arm

CELICA; LEFT; FROM 10/99

$211.81 $158.86
6 43330-09230 43330-09230 / Ball Joint

Lower Ball Joint

CELICA

$74.46 $55.85
7 48510-80324 48510-80324 / Strut

CELICA; RIGHT; GT-S

$153.78 $115.34
7 48520-80101 48520-80101 / Strut

CELICA; LEFT; GT

$153.78 $115.34
8 48609-20471 48609-20471 / Upper Mount

Strut Mount

CELICA

$108.46 $81.35
9 48131-2T380 48131-2T380 / Coil Spring

CELICA; MANUAL TRANS; GT-S

$80.16 $60.12
9 48131-2T350 48131-2T350 / Coil Spring

CELICA; MANUAL TRANS; GT; ALL

$91.73 $68.80
9 48131-2T360 48131-2T360 / Coil Spring

CELICA; AUTO TRANS; GT; ALL

$95.85 $71.89
9 48131-2T390 48131-2T390 / Coil Spring

CELICA; AUTO TRANS; GT-S

$80.16 $60.12
10 48811-2B060 48811-2B060 / Stabilizer Bar

CELICA; ALL

$120.16 $90.12
11 48815-20280 48815-20280 / Stabilizer Bar Bushing

Bushings

CELICA; ALL

$15.40 $11.55
12 48820-32010 48820-32010 / Stabilizer Link

Link

CELICA

$117.86 $88.40

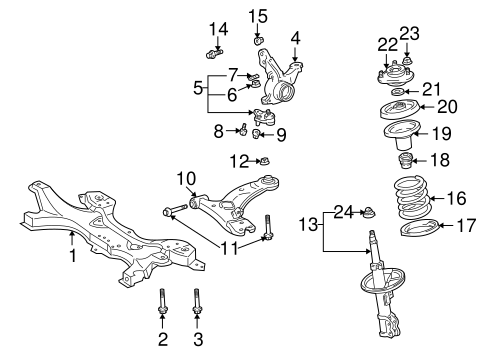

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2002 Toyota Celica #2
No. Part # Part # / Description List Price Price
1 51201-20352 51201-20352 / Engine Cradle

$1,304.47 $978.35
2 90119-14101 90119-14101 / Engine Cradle Front Bolt

$5.89 $4.42
3 90119-A0014 90119-A0014 / Engine Cradle Mount Bolt

Engine Cradle Rear Bolt

$6.21 $4.66
4 43211-32120 43211-32120 / Knuckle

Knuckle, RIGHT

W/ABS

$262.24 $196.68
4 43212-32120 43212-32120 / Knuckle

Knuckle, LEFT

W/ABS

$262.24 $196.68
4 43212-39025 43212-39025 / Knuckle

Knuckle, LEFT

W/O ABS

$262.24 $196.68
4 43211-39035 43211-39035 / Knuckle

Knuckle, RIGHT

W/O ABS

$262.24 $196.68
5 43330-09230 43330-09230 / Ball Joint

Ball Joint, LEFT

$74.46 $55.85
5 43330-09230 43330-09230 / Ball Joint

Ball Joint, RIGHT

$74.46 $55.85
6 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Ball Joint Castle Nut, LEFT

$3.22 $2.42
6 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Ball Joint Castle Nut, RIGHT

$3.22 $2.42
7 95381-03025 95381-03025 / Outer Tie Rod Cotter Pin

Ball Joint Cotter Pin, LEFT

$1.03 $0.77
7 95381-03025 95381-03025 / Outer Tie Rod Cotter Pin

Ball Joint Cotter Pin, RIGHT

$1.03 $0.77
8 90080-10130 90080-10130 / Ball Joint Bolt

Ball Joint Bolt, LEFT

$2.61 $1.96
8 90080-10130 90080-10130 / Ball Joint Bolt

Ball Joint Bolt, RIGHT

$2.61 $1.96
9 90080-17222 90080-17222 / Stabilizer Link Nut

Ball Joint Nut, LEFT

$2.64 $1.98
9 90080-17222 90080-17222 / Stabilizer Link Nut

Ball Joint Nut, RIGHT

$2.64 $1.98
10 48068-20381 48068-20381 / Lower Control Arm

Lower Control Arm, RIGHT

$211.81 $158.86
10 48069-20381 48069-20381 / Lower Control Arm

Lower Control Arm, LEFT

$211.81 $158.86
11 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$4.97 $3.73
11 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$4.97 $3.73
12 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, LEFT

$1.64 $1.23
12 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, RIGHT

$1.64 $1.23
13 48510-80324 48510-80324 / Strut

Strut, RIGHT

GT

$153.78 $115.34
13 48520-80101 48520-80101 / Strut

Strut, LEFT

GT

$153.78 $115.34
14 90105-15005 90105-15005 / Strut Bolt

Strut Bolt, LEFT

13.3 O.D.

$4.02 $3.02
14 90105-15005 90105-15005 / Strut Bolt

Strut Bolt, RIGHT

13.3 O.D.

$4.02 $3.02
14 90105-15001 90105-15001 / Knuckle Mount Bolt

Strut Bolt, LEFT

15.0 O.D.

$5.43 $4.07
14 90105-15004 90105-15004 / Strut Bolt

Strut Bolt, LEFT

13.9 O.D.

$4.02 $3.02
14 90105-15006 90105-15006 / Strut Bolt

Strut Bolt, LEFT

12.4 O.D.

$4.02 $3.02
14 90105-15001 90105-15001 / Knuckle Mount Bolt

Strut Bolt, RIGHT

15.0 O.D.

$5.43 $4.07
14 90105-15004 90105-15004 / Strut Bolt

Strut Bolt, RIGHT

13.9 O.D.

$4.02 $3.02
14 90105-15006 90105-15006 / Strut Bolt

Strut Bolt, RIGHT

12.4 O.D.

$4.02 $3.02
15 90105-A0038 90105-A0038 / Knuckle Nut

Strut Nut, LEFT

$4.28 $3.21
15 90105-A0038 90105-A0038 / Knuckle Nut

Strut Nut, RIGHT

$4.28 $3.21
16 48131-2T360 48131-2T360 / Coil Spring

Spring, LEFT

GT, AUTO TRANS

$95.85 $71.89
16 48131-2T350 48131-2T350 / Coil Spring

Spring, LEFT

GT, MANUAL TRANS

$91.73 $68.80
16 48131-2T360 48131-2T360 / Coil Spring

Spring, RIGHT

GT, AUTO TRANS

$95.85 $71.89
16 48131-2T350 48131-2T350 / Coil Spring

Spring, RIGHT

GT, MANUAL TRANS

$91.73 $68.80
17 48158-47010 48158-47010 / Lower Insulator

Lower Insulator, LEFT

$15.63 $11.72
17 48158-47010 48158-47010 / Lower Insulator

Lower Insulator, RIGHT

$15.63 $11.72
18 48331-20150 48331-20150 / Bumper

Bumper, LEFT

$14.74 $11.06
18 48331-20150 48331-20150 / Bumper

Bumper, RIGHT

$14.74 $11.06
19 48157-47010 48157-47010 / Upper Insulator

Upper Insulator, LEFT

$39.65 $29.74
19 48157-47010 48157-47010 / Upper Insulator

Upper Insulator, RIGHT

$39.65 $29.74
20 48044-47010 48044-47010 / Spring Seat

Spring Seat, RIGHT

$21.26 $15.95
20 48044-47010 48044-47010 / Spring Seat

Spring Seat, LEFT

$21.26 $15.95
21 90303-22049 90303-22049 / Seal

Dust Seal, LEFT

$5.17 $3.88
21 90303-22049 90303-22049 / Seal

Dust Seal, RIGHT

$5.17 $3.88
22 48609-20471 48609-20471 / Upper Mount

Upper Mount, LEFT

$108.46 $81.35
22 48609-20471 48609-20471 / Upper Mount

Upper Mount, RIGHT

$108.46 $81.35
23 90178-08009 90178-08009 / Upper Mount Nut

Upper Mount Nut, RIGHT

$1.47 $1.10
23 90178-08009 90178-08009 / Upper Mount Nut

Upper Mount Nut, LEFT

$1.47 $1.10
24 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, LEFT

$6.01 $4.51
24 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, RIGHT

$6.01 $4.51
No. Part # Part # / Description List Price Price
N/A 48684-12070 48684-12070 / Dust Cover

Cap, LEFT

$12.21 $9.16
No. Part # Part # / Description List Price Price
N/A 48684-12070 48684-12070 / Dust Cover

Cap, RIGHT

$12.21 $9.16
