COOLING SYSTEM/RADIATOR & COMPONENTS for 2002 Toyota Celica

Select RADIATOR & COMPONENTS Part

2002 Toyota Celica

Change vehicle

COOLING SYSTEM/RADIATOR & COMPONENTS for 2002 Toyota Celica #1
No. Part # Part # / Description List Price Price
N/A 16475-51010 16475-51010 / Cap

Reservoir Cap

CELICA

$10.20 $7.65
N/A 90080-87010 90080-87010 / Relay Box Relay

Fan Relay

CELICA

$28.85 $21.64
1 16400-22070 16400-22070 / Radiator Assembly

Radiator

CELICA; ALL; AUTO TRANS

$388.82 $291.62
1 16400-22060 16400-22060 / Radiator Assembly

Radiator

CELICA; ALL; MANUAL TRANS

$346.55 $259.91
2 16571-22050 16571-22050 / Hose

Upper Hose

CELICA; GT

$30.54 $22.91
2 16571-22080 16571-22080 / Hose

Upper Hose

CELICA; GT-S; MANUAL TRANS

$30.54 $22.91
3 16572-22020 16572-22020 / Hose

Lower Hose

CELICA; ALL

$21.57 $16.18
4 16100-29415-83 16100-29415-83 / Water Pump

CELICA; GT

$76.43 $57.32
4 16100-29145 16100-29145 / Water Pump

CELICA; GT-S

- -
5 90916-A3003 90916-A3003 / Thermostat

CELICA; GT; FROM 3/96

$24.05 $18.04
6 16321-88600 16321-88600 / Thermostat Housing

CELICA; GT-S

$47.87 $35.90
6 16321-22070 16321-22070 / Thermostat Housing

CELICA; GT

$18.04 $13.53
7 16325-62010 16325-62010 / Thermostat Gasket

CELICA

$6.35 $4.76
8 16361-22060 16361-22060 / Fan Blade

CELICA; RIGHT

$80.16 $60.12
8 16361-22050 16361-22050 / Fan Blade

CELICA; LEFT

$64.06 $48.05
9 16363-22060 16363-22060 / Fan Motor

CELICA; RIGHT

$226.15 $169.61
9 16363-22050 16363-22050 / Fan Motor

CELICA; LEFT

$226.15 $169.61
10 16711-22060 16711-22060 / Fan Shroud

CELICA

$103.06 $77.30

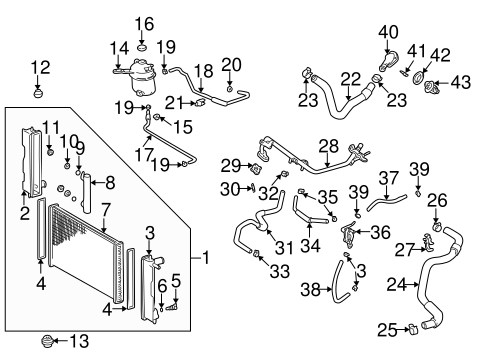

COOLING SYSTEM/RADIATOR & COMPONENTS for 2002 Toyota Celica #2
No. Part # Part # / Description List Price Price
1 16400-22060 16400-22060 / Radiator Assembly

GT, MANUAL TRANS

$346.55 $259.91
1 16400-22070 16400-22070 / Radiator Assembly

GT, AUTO TRANS

$388.82 $291.62
2 16461-22060 16461-22060 / Tank

GT, RIGHT SIDE, MANUAL TRANS

$166.42 $124.82
2 16461-22070 16461-22070 / Tank

GT, RIGHT SIDE, AUTO TRANS

$166.42 $124.82
3 16441-22070 16441-22070 / Tank

GT, LEFT SIDE

$185.01 $138.76
4 16462-22070 16462-22070 / Tank Gasket

Tank Gasket, LEFT

GT

$55.71 $41.78
4 16462-22070 16462-22070 / Tank Gasket

Tank Gasket, RIGHT

GT

$55.71 $41.78
5 23322-54010 23322-54010 / Drain Plug

Drain Valve

GT

$7.44 $5.58
6 16492-21050 16492-21050 / Drain Plug O-Ring

Drain Valve O-Ring

GT

$3.00 $2.25
7 16403-22070 16403-22070 / Core

GT

$231.02 $173.27
8 16491-7A070 16491-7A070 / Trans Cooler

GT

$382.14 $286.61
9 16492-62060 16492-62060 / Trans Cooler O-Ring

GT

$9.65 $7.24
10 16493-62060 16493-62060 / Oil Cooler Washer

Trans Cooler Washer

GT

$1.75 $1.31
11 16406-0A230 16406-0A230 / Trans Cooler Support

GT

$2.70 $2.03
12 16523-22010 16523-22010 / Upper Insulator

Upper Insulator, LEFT

GT

$21.64 $16.23
12 16523-22010 16523-22010 / Upper Insulator

Upper Insulator, RIGHT

GT

$21.64 $16.23
13 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Lower Insulator, LEFT

GT

$12.10 $9.08
13 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Lower Insulator, RIGHT

GT

$12.10 $9.08
14 16480-22020 16480-22020 / Reservoir

GT

$235.35 $176.51
15 90480-18010 90480-18010 / Reservoir Tank Grommet

Reservoir Grommet

GT

$3.28 $2.46
16 16475-51010 16475-51010 / Cap

GT

$10.20 $7.65
17 16264-22040 16264-22040 / Overflow Hose

GT, INLET

$11.55 $8.66
18 16261-22050 16261-22050 / Overflow Hose

GT, OUTLET

$11.55 $8.66
19 90467-15022 90467-15022 / Clamp

Overflow Hose Clamp

GT, LARGE

$1.52 $1.14
20 90467-13128 90467-13128 / Overflow Hose Clamp

GT, SMALL

$1.84 $1.38
21 90469-15003 90469-15003 / Overflow Hose Retainer Clip

GT

$1.61 $1.21
22 16572-22020 16572-22020 / Hose

Upper Hose

GT

$21.57 $16.18
23 90467-37005 90467-37005 / Hose Clamp

Upper Hose Clamp

GT

$5.18 $3.89
24 16571-22050 16571-22050 / Hose

Lower Hose

GT

$30.54 $22.91
25 90466-37002 90466-37002 / Hose Clamp

Lower Hose Clamp

GT, TO RADIATOR

$9.14 $6.86
26 90467-33005 90467-33005 / Lower Hose Clamp

GT, TO ENGINE

$5.11 $3.83
27 16581-22030 16581-22030 / Lower Hose Retainer Clip

GT

$15.40 $11.55
28 16268-22042 16268-22042 / Inlet Pipe

GT

$74.27 $55.70
29 16258-0D010 16258-0D010 / By-Pass Pipe Gasket

Inlet Pipe Gasket

GT

$1.47 $1.10
30 90126-06009 90126-06009 / Inlet Pipe Stud

GT

$1.72 $1.29
31 16281-22031 16281-22031 / Inlet Hose

GT

$16.78 $12.59
32 90467-15022 90467-15022 / Clamp

Inlet Hose Clamp

GT, UPPER

$1.52 $1.14
33 90080-46345 90080-46345 / Inlet Hose Clamp

GT, LOWER

$2.13 $1.60
34 16267-22010 16267-22010 / By-Pass Hose

GT

$7.49 $5.62
35 96135-51300 96135-51300 / Hose Clamp

By-Pass Hose Clamp

GT

$3.25 $2.44
36 16278-22010 16278-22010 / Outlet Pipe

GT

$22.58 $16.94
37 16261-22040 16261-22040 / Outlet Hose

GT, UPPER

$7.49 $5.62
38 16264-22030 16264-22030 / Outlet Hose

GT, LOWER

$7.49 $5.62
39 96135-51300 96135-51300 / Hose Clamp

Outlet Hose Clamp

GT

$3.25 $2.44
40 16321-22070 16321-22070 / Thermostat Housing

Thermostat Hsng

GT

$18.04 $13.53
41 90126-A0002 90126-A0002 / Water Pump Stud

Thermostat Hsng Stud

GT

$1.72 $1.29
42 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Hsng Gasket

GT

$6.35 $4.76
43 90916-A3003 90916-A3003 / Thermostat

GT

$24.05 $18.04
No. Part # Part # / Description List Price Price
N/A 90080-11216 90080-11216 / Shroud Bolt

Reservoir Bolt

GT

$1.03 $0.77
N/A 90178-A0032 90178-A0032 / Seat Back Frame Nut

Thermostat Hsng Nut

GT

$0.83 $0.62
No. Part # Part # / Description List Price Price
N/A 90080-10185 90080-10185 / Door Check Bolt

Inlet Pipe Bolt

GT

$0.89 $0.67
N/A 94150-10641 94150-10641 / ABS Sensor Nut

Inlet Pipe Nut

GT

$1.15 $0.86
