HVAC/CONDENSER, COMPRESSOR & LINES for 2002 Toyota Camry

Select CONDENSER, COMPRESSOR & LINES Part

2002 Toyota Camry

Change vehicle

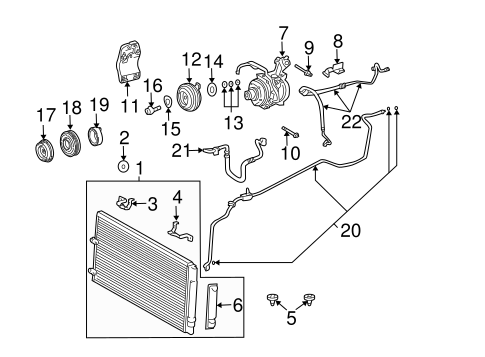

No. Part # Part # / Description List Price Price
1 88460-06070 88460-06070 / Condenser

$343.04 $251.60
2 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Condenser Nut

$0.98 $0.72
3 88688-06140 88688-06140 / Condenser Bracket

Condenser Bracket, RIGHT

$6.95 $5.10
4 88688-06120 88688-06120 / Condenser Bracket

Condenser Bracket, LEFT

$6.95 $5.10
5 88467-06060 88467-06060 / Condenser Lower Bushing

Condenser Lower Bushing, RIGHT

$3.66 $2.68
5 88467-06060 88467-06060 / Condenser Lower Bushing

Condenser Lower Bushing, LEFT

$3.66 $2.68
6 88474-47010 88474-47010 / Dehydrator

$67.03 $49.17
6 88474-47010 88474-47010 / Dehydrator

Drier

CAMRY; W/O SOLARA

$67.03 $49.17
7 88320-06080-84 88320-06080-84 / Compressor

2.4 LITER, US BUILT

$443.41 $324.57
7 88320-48080-84 88320-48080-84 / Compressor

2.4 LITER, JAPAN BUILT

$541.54 $396.40
8 88688-48070 88688-48070 / Compressor Bracket

2.4 LITER

$7.89 $5.80
9 90119-08B42 90119-08B42 / Compressor Assembly Mount Bolt

Compressor Upper Bolt

2.4 LITER

$1.34 $0.99
10 90119-08B42 90119-08B42 / Compressor Assembly Mount Bolt

Compressor Lower Bolt

2.4 LITER

$1.34 $0.99
12 88410-42040 88410-42040 / Clutch & Pulley

2.4 LITER

$310.34 $227.62
12 88410-42040 88410-42040 / Clutch & Pulley

Clutch

CAMRY; 2.4L

$310.34 $227.62
13 88335-14020 88335-14020 / Clutch & Pulley Repair Kit

$1.34 $0.99
14 90099-07114 90099-07114 / Clutch & Pulley Snap Ring

$1.05 $0.77
15 90099-07065 90099-07065 / Clutch & Pulley Washer

$1.84 $1.35
16 90099-04349 90099-04349 / Clutch & Pulley Bolt

$0.71 $0.52
17 88403-32010 88403-32010 / Clutch Plate & Hub Assembly

Clutch

2.4 LITER

$135.70 $99.53
18 88412-42010 88412-42010 / Pulley

Rotor

2.4 LITER

$290.82 $213.30
18 88412-42010 88412-42010 / Pulley

CAMRY; 2.4L; W/O SOLARA; USA BUILT

$290.82 $213.30
19 88411-44010 88411-44010 / Clutch Coil

Stator

2.4 LITER

$115.94 $85.03
19 88411-44010 88411-44010 / Clutch Coil

CAMRY; 2.4L; W/SOLARA

$115.94 $85.03
20 88710-33260 88710-33260 / Liquid Line

JAPAN BUILT

$219.94 $161.32
20 88716-06200 88716-06200 / Liquid Line

US BUILT

$140.54 $103.08
21 88711-06120 88711-06120 / Discharge Hose

2.4 LITER

$119.52 $87.66
22 88712-06060 88712-06060 / Suction Hose

2.4 LITER, US BUILT

$231.59 $169.86
22 88704-33290 88704-33290 / Suction Hose

2.4 LITER, JAPAN BUILT

$224.83 $164.91
No. Part # Part # / Description List Price Price
layer_10 88688-33380 88688-33380 / Suction Hose Bracket

$2.39 $1.76
layer_12 88718-06070 88718-06070 / Liquid Line Clamp

$3.50 $2.56
layer_8 88897-06010 88897-06010 / Suction Hose Grommet

$7.24 $5.31
layer_26 88645-60030 88645-60030 / High Pressure Cut-Off Switch

Pressure Switch

US BUILT

$133.10 $97.62
layer_1 88460-06050 88460-06050 / Condenser

CAMRY; ALL; W/SOLARA

$434.78 $318.90
layer_9 88515-22240 88515-22240 / Expansion Valve

CAMRY; W/SOLARA

$93.55 $68.61
No. Part # Part # / Description List Price Price
layer_3 88501-06030 88501-06030 / Evaporator Core

CAMRY; W/SOLARA

$438.30 $321.47
layer_8 88471-34010 88471-34010 / Drier

CAMRY; W/SOLARA

$44.17 $32.40
layer_14 88703-06100 88703-06100 / Discharge Hose

CAMRY; 2.4L; W/SOLARA

$165.01 $121.02
N/A 88335-48070 88335-48070 / Gasket Kit

CAMRY; 2.4L; W/SOLARA

$141.07 $103.47
layer_16 88704-06130 88704-06130 / Suction Hose

CAMRY; 2.4L; W/SOLARA

$287.40 $210.79
N/A 88360-32010 88360-32010 / Shaft Seal Kit

Shaft Seals

CAMRY; 2.4L; W/SOLARA

$69.64 $51.08
