FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2001 Toyota Prius

Select FUEL SYSTEM COMPONENTS Part

2001 Toyota Prius

Change vehicle

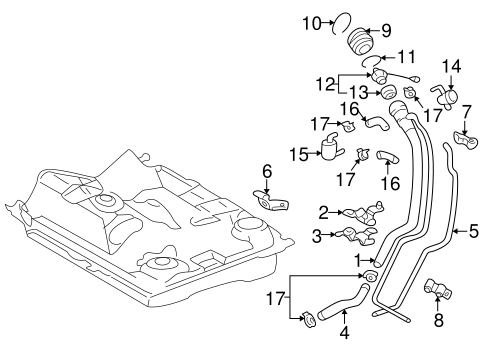

No. Part # Part # / Description List Price Price
1 77201-47051 77201-47051 / Filler Pipe

FILLER PIPE & COMPONENTS

$169.06 $124.00
2 77216-47020 77216-47020 / Filler Pipe Support

FILLER PIPE & COMPONENTS, #1

$12.21 $8.95
3 77218-47020 77218-47020 / Filler Pipe Support

FILLER PIPE & COMPONENTS, #2

$13.48 $9.88
4 77213-47030 77213-47030 / Connector Hose

FILLER PIPE & COMPONENTS

$53.76 $39.43
5 77221-47020 77221-47020 / Breather Tube

FILLER PIPE & COMPONENTS

$55.17 $40.47
6 77275-47010 77275-47010 / Breather Tube Support

FILLER PIPE & COMPONENTS

$16.26 $11.93
7 77273-47010 77273-47010 / Breather Tube Bracket

FILLER PIPE & COMPONENTS, UPPER

$14.71 $10.78
8 77274-47010 77274-47010 / Breather Tube Bracket

FILLER PIPE & COMPONENTS, LOWER

$13.27 $9.74
9 77291-47010 77291-47010 / Shield

FILLER PIPE & COMPONENTS

$34.16 $25.06
10 77371-47010 77371-47010 / Shield Snap Ring

FILLER PIPE & COMPONENTS, UPPER

$3.48 $2.55
11 77391-02040 77391-02040 / Pocket O-Ring

Shield Snap Ring

FILLER PIPE & COMPONENTS, LOWER

$2.93 $2.15
12 77300-20010 77300-20010 / Fuel Cap

FILLER PIPE & COMPONENTS

$29.49 $21.63
13 77316-16010 77316-16010 / Fuel Cap Gasket

FILLER PIPE & COMPONENTS

$16.58 $12.16
14 77720-47011 77720-47011 / Valve

FILLER PIPE & COMPONENTS, FUEL OUTLET

$128.03 $93.90
15 77420-47020 77420-47020 / Valve

FILLER PIPE & COMPONENTS, FUEL CUT OFF

$54.10 $39.69
16 77394-47010 77394-47010 / Elbow

FILLER PIPE & COMPONENTS

$12.38 $9.09
17 90959-04001 90959-04001 / Vent Hose Clamp

Elbow Clamp

FILLER PIPE & COMPONENTS

$8.07 $5.92

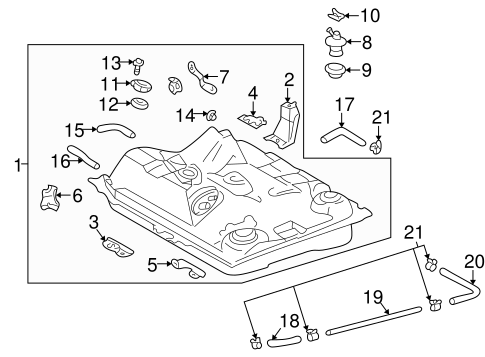

No. Part # Part # / Description List Price Price
1 77001-47071 77001-47071 / Fuel Tank

FUEL TANK & COMPONENTS

- -
2 77512-47020 77512-47020 / Fuel Tank Mount Bracket

FUEL TANK & COMPONENTS, REAR

- -
3 77511-47010 77511-47010 / Fuel Tank Mount Bracket

FUEL TANK & COMPONENTS, FRONT

$12.56 $9.21
4 77115-47010 77115-47010 / Fuel Tank Mount Plate

FUEL TANK & COMPONENTS, REAR

- -
5 77114-47010 77114-47010 / Fuel Tank Mount Plate

FUEL TANK & COMPONENTS, FRONT

$13.82 $10.14
6 77113-47010 77113-47010 / Fuel Tank Mount Plate

FUEL TANK & COMPONENTS, SIDE

$16.52 $12.11
7 77625-47010 77625-47010 / Fuel Tank Bracket

FUEL TANK & COMPONENTS

- -
8 77119-47010 77119-47010 / Fuel Tank Retainer

FUEL TANK & COMPONENTS

$15.80 $11.59
9 77179-33010 77179-33010 / Cut-Off Valve Gasket

Fuel Tank Gasket

FUEL TANK & COMPONENTS

$4.80 $3.51
10 77241-60320 77241-60320 / Tube Clip

Fuel Tank Clip

FUEL TANK & COMPONENTS

$1.18 $0.87
11 77118-47010 77118-47010 / Fuel Tank Plate

Plate

FUEL TANK & COMPONENTS, FUEL PUMP CONNECTOR

$10.75 $7.88
12 77169-14020 77169-14020 / Gauge Gasket

Plate Gasket

FUEL TANK & COMPONENTS, FUEL TUBES

$4.91 $3.60
13 90159-40155 90159-40155 / Plate Screw

FUEL TANK & COMPONENTS

$0.98 $0.72
14 90178-A0032 90178-A0032 / Seat Back Frame Nut

Plate Nut

FUEL TANK & COMPONENTS

$0.86 $0.63
15 77224-47010 77224-47010 / Breather Tube

FUEL TANK & COMPONENTS, #1

- -
16 77225-47010 77225-47010 / Breather Tube

FUEL TANK & COMPONENTS, #2

- -
17 77754-47010 77754-47010 / Hose

FUEL TANK & COMPONENTS, TO CANISTER

$23.53 $17.26
18 77394-47010 77394-47010 / Elbow

Hose

FUEL TANK & COMPONENTS, BULK

$12.38 $9.09
19 77229-47020 77229-47020 / Tube

FUEL TANK & COMPONENTS, EVAPORATION VENT

$34.91 $25.61
20 77259-47010 77259-47010 / Vent Hose

FUEL TANK & COMPONENTS

$18.79 $13.79
21 90959-04001 90959-04001 / Vent Hose Clamp

FUEL TANK & COMPONENTS

$8.07 $5.92
No. Part # Part # / Description List Price Price
N/A 23291-41010 23291-41010 / Injector Insulators

PRIUS

$3.74 $2.75
N/A 23209-21020 23209-21020 / Injector

PRIUS

$161.64 $118.56
No. Part # Part # / Description List Price Price
N/A 90301-07024 90301-07024 / Injector O-Ring

PRIUS

$3.36 $2.46
N/A 23901-21040 23901-21040 / Fuel Rail

PRIUS

$87.38 $64.09
