COOLING SYSTEM/RADIATOR & COMPONENTS for 2001 Toyota Celica

Select RADIATOR & COMPONENTS Part

2001 Toyota Celica

Change vehicle

COOLING SYSTEM/RADIATOR & COMPONENTS for 2001 Toyota Celica #1
No. Part # Part # / Description List Price Price
N/A 16475-51010 16475-51010 / Cap

Reservoir Cap

CELICA

$10.20 $7.65
N/A 90080-87010 90080-87010 / Relay Box Relay

Fan Relay

CELICA

$28.85 $21.64
1 16400-22070 16400-22070 / Radiator Assembly

Radiator

CELICA; ALL; AUTO TRANS

$388.82 $291.62
1 16400-22060 16400-22060 / Radiator Assembly

Radiator

CELICA; ALL; MANUAL TRANS

$346.55 $259.91
2 16571-22050 16571-22050 / Hose

Upper Hose

CELICA; GT

$30.54 $22.91
2 16571-22080 16571-22080 / Hose

Upper Hose

CELICA; GT-S; MANUAL TRANS

$30.54 $22.91
3 16572-22020 16572-22020 / Hose

Lower Hose

CELICA; ALL

$21.57 $16.18
4 16100-29145 16100-29145 / Water Pump

CELICA; GT-S

- -
4 16100-29095 16100-29095 / Water Pump

CELICA; GT

- -
5 90916-A3003 90916-A3003 / Thermostat

CELICA; GT; FROM 3/96

$24.05 $18.04
6 16321-88600 16321-88600 / Thermostat Housing

CELICA; GT-S

$47.87 $35.90
6 16321-22070 16321-22070 / Thermostat Housing

CELICA; GT

$18.04 $13.53
7 16325-62010 16325-62010 / Thermostat Gasket

CELICA

$6.35 $4.76
8 16361-22060 16361-22060 / Fan Blade

CELICA; RIGHT

$80.16 $60.12
8 16361-22050 16361-22050 / Fan Blade

CELICA; LEFT

$64.06 $48.05
9 16363-22060 16363-22060 / Fan Motor

CELICA; RIGHT

$226.15 $169.61
9 16363-22050 16363-22050 / Fan Motor

CELICA; LEFT

$226.15 $169.61
10 16711-22060 16711-22060 / Fan Shroud

CELICA

$103.06 $77.30

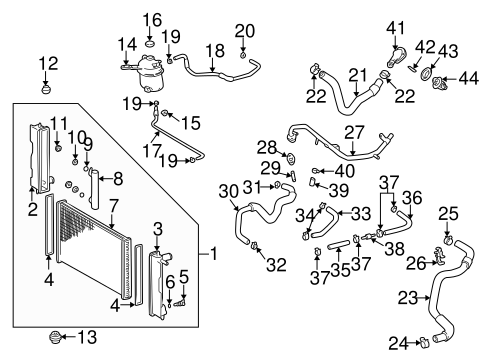

COOLING SYSTEM/RADIATOR & COMPONENTS for 2001 Toyota Celica #2
No. Part # Part # / Description List Price Price
1 16400-22060 16400-22060 / Radiator Assembly

GT-S, MANUAL TRANS

$346.55 $259.91
1 16400-22070 16400-22070 / Radiator Assembly

GT-S, AUTO TRANS

$388.82 $291.62
2 16461-22060 16461-22060 / Tank

GT-S, RIGHT SIDE, MANUAL TRANS

$166.42 $124.82
2 16461-22070 16461-22070 / Tank

GT-S, RIGHT SIDE, AUTO TRANS

$166.42 $124.82
3 16441-22070 16441-22070 / Tank

GT-S, LEFT SIDE

$185.01 $138.76
4 16462-22070 16462-22070 / Tank Gasket

Tank Gasket, LEFT

GT-S

$55.71 $41.78
4 16462-22070 16462-22070 / Tank Gasket

Tank Gasket, RIGHT

GT-S

$55.71 $41.78
5 23322-54010 23322-54010 / Drain Plug

Drain Valve

GT-S

$7.44 $5.58
6 16492-21050 16492-21050 / Drain Plug O-Ring

Drain Valve O-Ring

GT-S

$3.00 $2.25
7 16403-22070 16403-22070 / Core

GT-S

$231.02 $173.27
8 16491-7A070 16491-7A070 / Trans Cooler

GT-S

$382.14 $286.61
9 16492-62060 16492-62060 / Trans Cooler O-Ring

GT-S

$9.65 $7.24
10 16493-62060 16493-62060 / Oil Cooler Washer

Trans Cooler Washer

GT-S

$1.75 $1.31
11 16406-0A230 16406-0A230 / Trans Cooler Support

GT-S

$2.70 $2.03
12 16523-22010 16523-22010 / Upper Insulator

Upper Insulator, LEFT

GT-S

$21.64 $16.23
12 16523-22010 16523-22010 / Upper Insulator

Upper Insulator, RIGHT

GT-S

$21.64 $16.23
13 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Lower Insulator, RIGHT

GT-S

$12.10 $9.08
13 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Lower Insulator, LEFT

GT-S

$12.10 $9.08
14 16480-22020 16480-22020 / Reservoir

GT-S

$235.35 $176.51
15 90480-18010 90480-18010 / Reservoir Tank Grommet

Reservoir Grommet

GT-S

$3.28 $2.46
16 16475-51010 16475-51010 / Cap

GT-S

$10.20 $7.65
17 16264-22040 16264-22040 / Overflow Hose

GT-S, INLET

$11.55 $8.66
18 16261-22060 16261-22060 / Overflow Hose

GT-S, OUTLET

$16.78 $12.59
19 90467-15022 90467-15022 / Clamp

Overflow Hose Clamp

GT-S, LARGE

$1.52 $1.14
20 90467-13128 90467-13128 / Overflow Hose Clamp

GT-S, SMALL

$1.84 $1.38
21 16572-22020 16572-22020 / Hose

Upper Hose

GT-S

$21.57 $16.18
22 90467-37005 90467-37005 / Hose Clamp

Upper Hose Clamp

GT-S

$5.18 $3.89
23 16571-22050 16571-22050 / Hose

Lower Hose

GT-S, AUTO TRANS

$30.54 $22.91
23 16571-22080 16571-22080 / Hose

Lower Hose

GT-S, MANUAL TRANS

$30.54 $22.91
24 90466-37002 90466-37002 / Hose Clamp

Lower Hose Clamp

GT-S, TO RADIATOR

$9.14 $6.86
25 90467-33005 90467-33005 / Lower Hose Clamp

GT-S, TO ENGINE

$5.11 $3.83
26 16581-22030 16581-22030 / Lower Hose Retainer Clip

GT-S

$15.40 $11.55
27 16268-22120 16268-22120 / Inlet Pipe

GT-S

$61.08 $45.81
28 16258-88600 16258-88600 / Inlet Pipe Gasket

GT-S

$4.45 $3.34
29 90080-12001 90080-12001 / By-Pass Pipe Stud

Inlet Pipe Stud

GT-S

$1.12 $0.84
30 16472-88600 16472-88600 / Inlet Hose

GT-S

$22.96 $17.22
31 90467-15004 90467-15004 / Inlet Hose Clamp

GT-S, UPPER

$2.18 $1.64
32 90080-46345 90080-46345 / Inlet Hose Clamp

GT-S, LOWER

$2.13 $1.60
33 16264-88601 16264-88601 / By-Pass Hose

GT-S

$7.49 $5.62
34 90467-13128 90467-13128 / Overflow Hose Clamp

By-Pass Hose Clamp

GT-S

$1.84 $1.38
35 16295-88570 16295-88570 / Outlet Hose

GT-S, FRONT

$7.49 $5.62
36 16282-88600 16282-88600 / Outlet Hose

GT-S, REAR

$7.09 $5.32
37 90467-13128 90467-13128 / Overflow Hose Clamp

Outlet Hose Clamp

GT-S

$1.84 $1.38
38 90916-03124 90916-03124 / Outlet Hose Joint

GT-S

$43.77 $32.83
39 90339-13006 90339-13006 / Plug

GT-S

$2.79 $2.09
40 90080-46349 90080-46349 / Clamp

Plug Clamp

GT-S

$4.40 $3.30
41 16321-88600 16321-88600 / Thermostat Housing

Thermostat Hsng

GT-S

$47.87 $35.90
42 90126-A0002 90126-A0002 / Water Pump Stud

Thermostat Hsng Stud

GT-S

$1.72 $1.29
43 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Hsng Gasket

GT-S

$6.35 $4.76
44 90916-A3003 90916-A3003 / Thermostat

GT-S

$24.05 $18.04
No. Part # Part # / Description List Price Price
N/A 90080-17191 90080-17191 / Instrument Panel Nut

Inlet Pipe Nut

GT-S

$1.35 $1.01
N/A 90080-17197 90080-17197 / Thermostat Hsng Nut

GT-S

$1.12 $0.84
N/A 90105-A0047 90105-A0047 / Inlet Pipe Bolt

GT-S, REAR

$1.18 $0.89
No. Part # Part # / Description List Price Price
N/A 90080-11216 90080-11216 / Shroud Bolt

Reservoir Bolt

GT-S

$1.03 $0.77
N/A 91641-80616 91641-80616 / Inlet Pipe Bolt

GT-S, FRONT

$1.01 $0.76
