ELECTRICAL/SENDERS for 2000 Toyota MR2 Spyder

Select SENDERS Part

2000 Toyota MR2 Spyder

Change vehicle

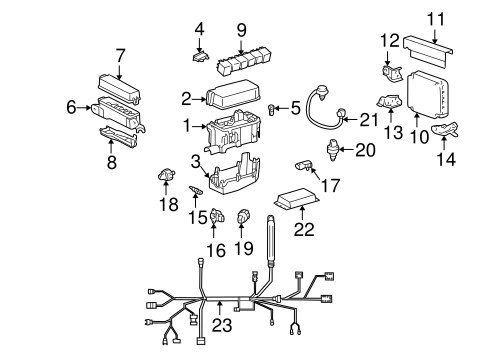

No. Part # Part # / Description List Price Price
1 82610-17010 82610-17010 / Fuse & Relay Box

ENGINE ROOM

$154.55 $113.36
2 82611-17020 82611-17020 / Fuse & Relay Box Upper Cover

ENGINE ROOM

- -
3 82611-17010 82611-17010 / Fuse & Relay Box Lower Cover

ENGINE ROOM

$45.63 $33.46
4 90080-82021 90080-82021 / Mini Fuse

Fuse

ENGINE ROOM, 10 AMP

$1.86 $1.37
4 90080-82024 90080-82024 / Mini Fuse

Fuse

ENGINE ROOM, 30 AMP

$1.86 $1.37
4 90080-82020 90080-82020 / Mini Fuse

Fuse

ENGINE ROOM, 7.5 AMP

$1.86 $1.37
4 90080-82033 90080-82033 / Mini Fuse

Fuse

ENGINE ROOM, 25 AMP

$2.38 $1.74
5 82616-20010 82616-20010 / Fuse Puller

ENGINE ROOM

$3.53 $2.59
6 82741-17010 82741-17010 / Relay Box

ENGINE ROOM

$64.36 $47.20
7 82662-17010 82662-17010 / Relay Box Upper Cover

ENGINE ROOM

- -
8 82663-33010 82663-33010 / Lower Cover

Relay Box Lower Cover

ENGINE ROOM

$13.48 $9.88
9 28300-10020 28300-10020 / Relay Box Relay

Relay

ENGINE ROOM, STARTER

$73.21 $53.69
9 89531-17010 89531-17010 / Sensor

Relay

ENGINE ROOM, TRANS CONTROL

$77.46 $56.82
10 89661-17722 89661-17722 / ECM

MR2

$985.72 $722.98
10 89661-17630 89661-17630 / ECM

ENGINE ROOM, W/SHIFTMATIC, TO 05-01

- -
11 89279-17030 89279-17030 / ECM Cover

ENGINE ROOM

- -
12 89667-17050 89667-17050 / Side Bracket

ENGINE ROOM, UPPER

$7.82 $5.73
13 89668-17080 89668-17080 / Side Bracket

ENGINE ROOM, LOWER

$8.91 $6.53
14 89669-17070 89669-17070 / Lower Bracket

ENGINE ROOM

$9.77 $7.16
15 89422-35010 89422-35010 / Coolant Temp Sensor

Temp Sensor

ENGINE ROOM

$72.15 $52.91
15 89422-35010 89422-35010 / Coolant Temp Sensor

MR2

$72.15 $52.91
15 89422-35010 89422-35010 / Coolant Temp Sensor

Temp Sending Unit

MR2

$72.15 $52.91
16 89452-30150 89452-30150 / Throttle Position Sensor

Position Sensor

ENGINE ROOM, W/SHIFTMATIC

$96.05 $70.46
16 89452-02020 89452-02020 / Sensor

Position Sensor

ENGINE ROOM, W/O SHIFTMATIC

$81.14 $59.51
16 89452-02020 89452-02020 / Sensor

Throttle Position Sensor

MR2; W/O SEQUENTIAL SHIFT

$81.14 $59.51
17 89461-0C010 89461-0C010 / Pressure Sensor

MR2

$245.46 $180.04
18 89615-12120 89615-12120 / Knock Sensor

MR2

$230.26 $168.88
19 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

Switch

ENGINE ROOM, OIL PRESSURE, YAZAKI

$48.39 $35.49
19 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

MR2; DENSO

$48.39 $35.49
20 84540-17010 84540-17010 / Clutch Switch

Switch

ENGINE ROOM, NEUTRAL START, W/SHIFTMATIC ONLY

$303.21 $222.39
21 84210-52050 84210-52050 / Switch

ENGINE ROOM, BACK UP LAMP, W/SHIFTMATIC

$41.75 $30.62
21 84210-14040 84210-14040 / Back-Up Switch

Switch

ENGINE ROOM, BACK UP LAMP, W/O SHIFTMATIC

$55.54 $40.74
21 84210-14040 84210-14040 / Back-Up Switch

MR2; W/O SEQUENTIAL SHIFT

$55.54 $40.74
22 89535-0W041 89535-0W041 / Computer

ENGINE ROOM, TRANSMISSION, W/SHIFTMATIC ONLY

$1,101.83 $808.14
23 82111-17720 82111-17720 / Harness

ENGINE ROOM, MAIN, W/O SHIFTMATIC

- -
23 82111-17680 82111-17680 / Harness

ENGINE ROOM, MAIN, W/SHIFTMATIC

- -

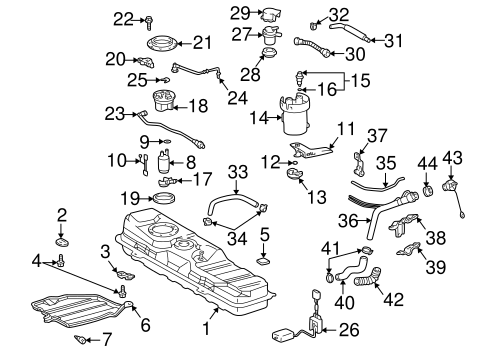

No. Part # Part # / Description List Price Price
1 77001-17070 77001-17070 / Fuel Tank

- -
2 77113-52020 77113-52020 / Fuel Tank Plate

Fuel Tank Plate, LEFT

$8.73 $6.41
2 77113-52020 77113-52020 / Fuel Tank Plate

Fuel Tank Plate, RIGHT

$8.73 $6.41
3 77616-17010 77616-17010 / Fuel Tank Bracket

Fuel Tank Bracket, LEFT

$9.94 $7.30
3 77616-17010 77616-17010 / Fuel Tank Bracket

Fuel Tank Bracket, RIGHT

$9.94 $7.30
4 90119-A0318 90119-A0318 / Reinforced Beam Bolt

Fuel Tank Bolt, LEFT

$1.41 $1.04
4 90119-A0318 90119-A0318 / Reinforced Beam Bolt

Fuel Tank Bolt, RIGHT

$1.41 $1.04
5 77651-20090 77651-20090 / Fuel Tank Cushion

Pad

$5.17 $3.79
6 77642-17030 77642-17030 / Protector

Protector, LEFT

$153.86 $112.85
6 77641-17030 77641-17030 / Protector

Protector, RIGHT

$153.86 $112.85
7 90467-10018 90467-10018 / Wheelhouse Liner Clip

Protector Clip, LEFT

$1.55 $1.13
7 90467-10018 90467-10018 / Wheelhouse Liner Clip

Protector Clip, RIGHT

$1.55 $1.13
8 23221-21020 23221-21020 / Fuel Pump

$343.09 $251.65
9 90301-09021 90301-09021 / Suction Valve O-Ring

Fuel Pump O-Ring

$3.36 $2.46
10 77785-32010 77785-32010 / Harness

$5.78 $4.23
11 23217-21030 23217-21030 / Fuel Filter

Strainer

$12.21 $8.95
11 23217-21030 23217-21030 / Fuel Filter

MR2; FUEL PUMP

$12.21 $8.95
12 23219-03010 23219-03010 / Fuel Strainer Clip

Strainer Clip

$1.12 $0.82
13 23249-74610 23249-74610 / Fuel Pump Cushion

Cushion

$12.67 $9.30
14 23300-23040 23300-23040 / Fuel Filter

MR2; FUEL TANK

$37.17 $27.27
15 23280-22010 23280-22010 / Fuel Pressure Regulator

Pressure Reg

$151.39 $111.04
15 23280-22010 23280-22010 / Fuel Pressure Regulator

MR2

$151.39 $111.04
16 90301-07020 90301-07020 / Pressure Reg O-Ring

$3.96 $2.90
17 77175-52020 77175-52020 / Support

$11.06 $8.11
18 77024-17020 77024-17020 / Suction Valve

Plate

$70.74 $51.89
19 77169-33020 77169-33020 / Fuel Pump Gasket

Plate Gasket

$15.37 $11.27
20 77643-17010 77643-17010 / Plate Protector

$10.98 $8.05
21 77168-52010 77168-52010 / Fuel Pump Retainer Plate

Cover

$17.10 $12.54
22 90159-A0022 90159-A0022 / Cover Bolt

$1.09 $0.81
23 77027-17030 77027-17030 / Evaporator Tube

$18.65 $13.68
24 77209-17010 77209-17010 / Tube Assembly

$25.86 $18.97
25 77241-32060 77241-32060 / Tube Assembly Clip

$1.18 $0.87
26 83320-17050 83320-17050 / Fuel Gauge Sending Unit

Gauge Unit

$122.37 $89.76
26 83320-17050 83320-17050 / Fuel Gauge Sending Unit

MR2

$122.37 $89.76
27 77390-20070 77390-20070 / Check Valve

$43.85 $32.16
28 77177-33010 77177-33010 / Gasket

Check Valve Gasket

$12.90 $9.47
29 77393-52010 77393-52010 / Check Valve Protector

Check Valve Cover

$18.04 $13.24
30 77404-17010 77404-17010 / Vent Hose

$21.00 $15.41
31 77394-17010 77394-17010 / Hose

$22.10 $16.20
32 90467-13061 90467-13061 / Hose Clamp

$1.03 $0.76
33 77259-17030 77259-17030 / Breather

$19.94 $14.63
34 96132-41000 96132-41000 / Vent Hose Clamp

Breather Clamp

$1.70 $1.24
35 77226-17010 77226-17010 / Breather Tube

$33.39 $24.49
36 77201-17130 77201-17130 / Filler Neck

$152.80 $112.07
37 77216-17030 77216-17030 / Support Bracket

#1

$6.58 $4.83
38 77217-17020 77217-17020 / Support Bracket

#2

$15.20 $11.15
39 77218-17010 77218-17010 / Support Bracket

#3

$8.56 $6.28
40 77213-17020 77213-17020 / Filler Tube

$49.51 $36.31
41 90460-37003 90460-37003 / Connector Hose Clamp

Filler Tube Clamp

$4.77 $3.50
42 77219-44010 77219-44010 / Filler Tube Shield

$7.61 $5.59
43 77300-20010 77300-20010 / Fuel Cap

$29.49 $21.63
44 77316-16010 77316-16010 / Fuel Cap Gasket

$16.58 $12.16
