HVAC/AUTOMATIC TEMPERATURE CONTROLS for 1998 Toyota Avalon

Select AUTOMATIC TEMPERATURE CONTROLS Part

1998 Toyota Avalon

Change vehicle

HVAC/AUTOMATIC TEMPERATURE CONTROLS for 1998 Toyota Avalon #1
No. Part # Part # / Description List Price Price
1 55401-07011-C0 55401-07011-C0 / Instrument Panel

UPPER COMPONENTS, BLACK

$1,357.14 $1,017.86
1 55401-07011-E3 55401-07011-E3 / Instrument Panel

UPPER COMPONENTS, SANDALWOOD

$1,247.87 $935.90
1 55401-07011-E2 55401-07011-E2 / Instrument Panel

UPPER COMPONENTS, ROSE

$1,357.14 $1,017.86
3 55328-12060 55328-12060 / Instrument Panel Pin

UPPER COMPONENTS

$3.85 $2.89
4 55377-AC010 55377-AC010 / Instrument Panel Upper Bracket

UPPER COMPONENTS

- -
5 55375-AC010 55375-AC010 / Instrument Panel Lower Bracket

Instrument Panel Lower Bracket, RIGHT

UPPER COMPONENTS

$22.24 $16.68
6 55374-AC010 55374-AC010 / Instrument Panel Lower Bracket

Instrument Panel Lower Bracket, LEFT

UPPER COMPONENTS

- -
7 55458-AC010-C0 55458-AC010-C0 / Instrument Panel Cap

UPPER COMPONENTS, BLACK

- -
7 55458-AC010-E5 55458-AC010-E5 / Instrument Panel Cap

UPPER COMPONENTS, ROSE

- -
7 55458-AC010-E6 55458-AC010-E6 / Instrument Panel Cap

UPPER COMPONENTS, SANDALWOOD

- -
8 55548-AC010 55548-AC010 / Instrument Panel Hole Cover

Instrument Panel Hole Cover, LEFT

UPPER COMPONENTS, BLACK

$13.04 $9.78
8 55549-AC010-C0 55549-AC010-C0 / Instrument Panel Hole Cover

Instrument Panel Hole Cover, RIGHT

UPPER COMPONENTS, BLACK

- -
9 55330-AC011 55330-AC011 / Reinforced Beam

UPPER COMPONENTS

- -
10 55306-AC010 55306-AC010 / Center Brace

UPPER COMPONENTS, FLOOR SHIFT

- -
10 55306-AC020 55306-AC020 / Center Brace

UPPER COMPONENTS, COLUMN SHIFT

- -
11 55981-AC010-C0 55981-AC010-C0 / Defroster Trim

Defroster Trim, RIGHT

UPPER COMPONENTS, BLACK

- -
11 55982-AC010-C0 55982-AC010-C0 / Defroster Trim

Defroster Trim, LEFT

UPPER COMPONENTS, BLACK

- -
12 55950-AC010 55950-AC010 / Defroster Nozzle

UPPER COMPONENTS, UPPER

$55.37 $41.53
13 55961-AC010-C0 55961-AC010-C0 / Defroster Nozzle

UPPER COMPONENTS, LEFT SIDE, BLACK

$15.57 $11.68
13 55961-AC010-E3 55961-AC010-E3 / Defroster Nozzle

UPPER COMPONENTS, LEFT SIDE, SANDALWOOD

- -
13 55961-AC010-E2 55961-AC010-E2 / Defroster Nozzle

UPPER COMPONENTS, LEFT SIDE, ROSE

- -
14 55971-AC010 55971-AC010 / Duct

UPPER COMPONENTS

$25.17 $18.88
16 55680-AC010-C0 55680-AC010-C0 / Vent Grille

UPPER COMPONENTS, BLACK

$133.92 $100.44
16 55680-AC010-E2 55680-AC010-E2 / Vent Grille

UPPER COMPONENTS, ROSE STONE

$133.92 $100.44
16 55680-AC010-E3 55680-AC010-E3 / Vent Grille

UPPER COMPONENTS, SANDALWOOD

$133.92 $100.44
17 55405-AC030-E0 55405-AC030-E0 / Center Panel

UPPER COMPONENTS, XL, ROSE

$200.35 $150.26
17 55405-AC040 55405-AC040 / Center Panel

UPPER COMPONENTS, XLS, ALL

$287.15 $215.36
17 55405-AC030-C0 55405-AC030-C0 / Center Panel

UPPER COMPONENTS, XL, BLACK

$200.35 $150.26
17 55405-AC030-E1 55405-AC030-E1 / Center Panel

UPPER COMPONENTS, XL, SANDALWOOD

$200.35 $150.26
18 55410-AC010 55410-AC010 / Cluster Trim

UPPER COMPONENTS

$241.78 $181.34
20 55404-AC030-E3 55404-AC030-E3 / Side Trim

UPPER COMPONENTS, XL, ROSE

$118.92 $89.19
20 55404-AC030-E4 55404-AC030-E4 / Side Trim

UPPER COMPONENTS, XL, SANDALWOOD

$118.92 $89.19
20 55404-AC030-C1 55404-AC030-C1 / Side Trim

UPPER COMPONENTS, XL, BLACK

$118.92 $89.19
20 55405-AC040 55405-AC040 / Center Panel

Side Trim

UPPER COMPONENTS, XLS, ALL

$287.15 $215.36
21 89120-41010 89120-41010 / Sensor

UPPER COMPONENTS, AUTO LAMP CONTROL

$693.48 $520.11
22 89128-41010 89128-41010 / Sensor Retainer

UPPER COMPONENTS

$11.29 $8.47
23 88625-41010 88625-41010 / Sunload Sensor

Sunlight Sensor

UPPER COMPONENTS

$61.25 $45.94
23 88625-41010 88625-41010 / Sunload Sensor

AVALON

$61.25 $45.94

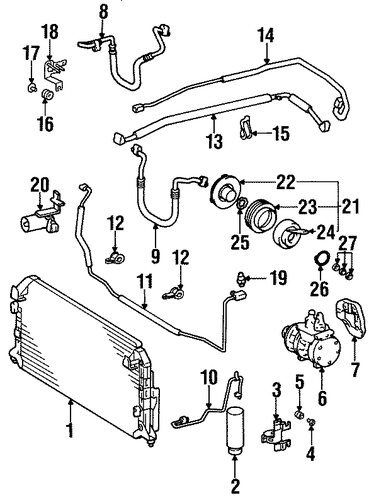

No. Part # Part # / Description List Price Price
1 88460-07010 88460-07010 / Condenser

$435.86 $326.90
2 88471-20050 88471-20050 / Dehydrator

Receiver

$71.95 $53.96
2 88471-20050 88471-20050 / Dehydrator

Drier

AVALON

$71.95 $53.96
3 88473-33040 88473-33040 / Receiver Bracket

$73.24 $54.93
4 88467-14070 88467-14070 / Fan Blade Retainer

Receiver Bracket

RETAINER

$0.11 $0.08
5 90099-32127 90099-32127 / Receiver Bracket

BUSHING

$3.18 $2.39
6 88320-33030-84 88320-33030-84 / Compressor

$464.89 $348.67
6 90099-04395 90099-04395 / Compressor Assembly Mount Bolt

Compressor

MOUNTING BOLT, LOWER

$2.87 $2.15
6 90099-04394 90099-04394 / Compressor Mount Bolt

Compressor

MOUNTING BOLT, UPPER

$2.29 $1.72
7 88431-07010 88431-07010 / Compressor Bracket

$154.67 $116.00
8 88711-06061 88711-06061 / Discharge Hose

FROM 2/95

$118.31 $88.73
9 88704-33110 88704-33110 / Suction Hose

$134.52 $100.89
10 88716-07070 88716-07070 / AC Hose

Pipe

CONDENSOR TO DRIER

$65.06 $48.80
11 88716-07031 88716-07031 / Pipe

EVAPORATOR TO DRIER, AT DRIER

$121.47 $91.10
12 88718-33030 88718-33030 / Pipe Clamp

Pipe Clamp, RIGHT

$6.18 $4.64
12 88718-33030 88718-33030 / Pipe Clamp

Pipe Clamp, LEFT

$6.18 $4.64
13 88717-07011 88717-07011 / Suction Pipe

$220.12 $165.09
14 88716-07041 88716-07041 / Pipe

AT EVAPORATOR

$95.71 $71.78
15 88569-33040 88569-33040 / Pipe Clamp

$3.37 $2.53
16 90099-32130 90099-32130 / Fan Blade Bushing

Pipe Bushing

$2.96 $2.22
17 88469-28010 88469-28010 / Pipe Retainer

$2.74 $2.06
18 88688-33170 88688-33170 / Pipe Bracket

$39.57 $29.68
19 88645-20050 88645-20050 / High Pressure Cut-Off Switch

Pressure Switch

$39.78 $29.84
19 88645-20050 88645-20050 / High Pressure Cut-Off Switch

Pressure Cut-Off Switch

AVALON

$39.78 $29.84
20 88625-33080 88625-33080 / Ambient Temp Sensor

Sensor

AMBIENT TEMPERATURE

$72.82 $54.62
20 88625-33080 88625-33080 / Ambient Temp Sensor

AVALON

$72.82 $54.62
21 88410-33040 88410-33040 / Clutch

$219.94 $164.96
22 88403-06050 88403-06050 / Clutch Plate & Hub Assembly

Clutch

HUB

$98.87 $74.15
23 88411-33030 88411-33030 / Clutch Coil

Clutch

STATOR

$137.36 $103.02
23 88411-33030 88411-33030 / Clutch Coil

AVALON

$137.36 $103.02
24 88412-33010 88412-33010 / Pulley

Clutch

ROTOR

$257.69 $193.27
24 88412-33010 88412-33010 / Pulley

AVALON

$257.69 $193.27
25 90099-07125 90099-07125 / Clutch

WASHER

$2.05 $1.54
26 90099-32130 90099-32130 / Fan Blade Bushing

Clutch

WASHER, SNAP RING

$2.96 $2.22
27 88335-14020 88335-14020 / Clutch & Pulley Repair Kit

Clutch

WASHER, WASHER KIT

$1.34 $1.01
No. Part # Part # / Description List Price Price
1 87050-07011 87050-07011 / AC & Heater Assembly

MANUAL AC, XL, W/FLOOR SHIFT

$1,919.95 $1,439.96
1 87050-07041 87050-07041 / AC & Heater Assembly

MANUAL AC, XLS, W/COLUMN SHIFT

- -
1 87050-07021 87050-07021 / AC & Heater Assembly

MANUAL AC, XL, W/COLUMN SHIFT

- -
4 88515-22240 88515-22240 / Expansion Valve

AVALON

$92.58 $69.44
5 88625-33070 88625-33070 / In-Car Sensor

Thermistor

MANUAL AC

$10.73 $8.05
5 88625-33070 88625-33070 / In-Car Sensor

AVALON

$10.73 $8.05
6 88710-07040 88710-07040 / Pipe

MANUAL AC

$153.30 $114.98
7 88605-07020 88605-07020 / Harness

MANUAL AC

$16.13 $12.10
8 87138-33010 87138-33010 / Resistor

MANUAL AC

$75.71 $56.78
9 87106-07010 87106-07010 / Mode Motor

MANUAL AC

$207.13 $155.35
13 87201-07050 87201-07050 / Duct

MANUAL AC, SIDE, TYPE 1

$62.15 $46.61
16 87212-33010 87212-33010 / Heat Duct

Rear Duct, RIGHT

MANUAL AC, W/O BENCH SEAT

$104.30 $78.23
17 87213-AC010 87213-AC010 / Rear Duct

Rear Duct, LEFT

MANUAL AC, W/BENCH SEAT

- -
18 55087-AC010 55087-AC010 / Duct

MANUAL AC, PASSENGER SIDE

$84.36 $63.27
19 55847-AC010 55847-AC010 / Duct

MANUAL AC, DRIVER SIDE #1

- -
22 87211-07010 87211-07010 / Duct

MANUAL AC, DRIVER SIDE LOWER

$51.40 $38.55
23 55845-AC010 55845-AC010 / Duct

MANUAL AC, CENTER

$56.57 $42.43
