MAINTENANCE & LUBRICATION/FILTERS for 1996 Toyota Tercel

Select FILTERS Part

1996 Toyota Tercel

Change vehicle

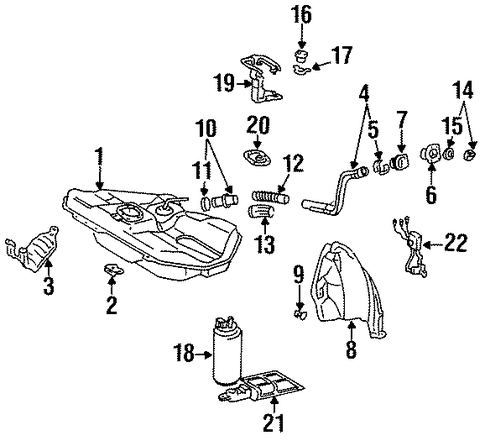

No. Part # Part # / Description List Price Price
1 77001-16230 77001-16230 / Fuel Tank

- -
2 77113-10020 77113-10020 / Fuel Tank Mount Plate

$6.92 $5.08
3 58321-10020 58321-10020 / Heat Shield

$24.39 $17.90
4 77201-16270 77201-16270 / Filler Neck

$151.02 $110.76
5 77219-06010 77219-06010 / Cover

Filler Neck Cover

$2.79 $2.05
6 77290-16110 77290-16110 / Filler Neck Shield

UPPER, W/O REMOTE OPENER

- -
6 77290-16120 77290-16120 / Filler Neck Shield

UPPER, W/REMOTE OPENER

$36.09 $26.47
7 77293-16100 77293-16100 / Filler Neck Shield

LOWER, W/O REMOTE OPENER

- -
7 77293-16110 77293-16110 / Filler Neck Shield

LOWER, W/REMOTE OPENER

$34.34 $25.18
8 77277-16120 77277-16120 / Protector

$91.97 $67.45
9 90467-07130 90467-07130 / Protector Clip

$1.32 $0.96
10 77011-10060 77011-10060 / Lower Pipe

$42.09 $30.88
11 77178-20030 77178-20030 / Lower Pipe Gasket

$1.64 $1.20
12 77213-16090 77213-16090 / Connector Hose

- -
13 77276-10020 77276-10020 / Connector Hose Protector

- -
14 77310-12140 77310-12140 / Cap

Fuel Cap

$29.31 $21.50
15 77316-16010 77316-16010 / Fuel Cap Gasket

$16.58 $12.16
16 77380-26010 77380-26010 / Valve

Cut-Off Valve

$15.26 $11.19
17 77189-18010 77189-18010 / Cut-Off Valve Retainer

$2.93 $2.15
18 23221-11070 23221-11070 / Fuel Pump

$343.09 $251.65
19 23206-11430 23206-11430 / Fuel Pump Bracket

$105.76 $77.57
20 77169-16030 77169-16030 / Sending Unit Gasket

Fuel Pump Gasket

$7.44 $5.45
21 23217-74030 23217-74030 / Fuel Filter

Filter

$14.11 $10.35
21 23217-74030 23217-74030 / Fuel Filter

TERCEL; IN TANK; FOR FUEL PUMP

$14.11 $10.35
22 83320-80191 83320-80191 / Sending Unit

$82.06 $60.18
22 83320-80191 83320-80191 / Sending Unit

Fuel Gauge Sending Unit

TERCEL

$82.06 $60.18
No. Part # Part # / Description List Price Price
N/A 23300-19385 23300-19385 / Fuel Filter

TERCEL; ON ENGINE

$36.24 $26.57
