ELECTRICAL/SWITCHES for 1996 Toyota T100

Select SWITCHES Part

1996 Toyota T100

Change vehicle

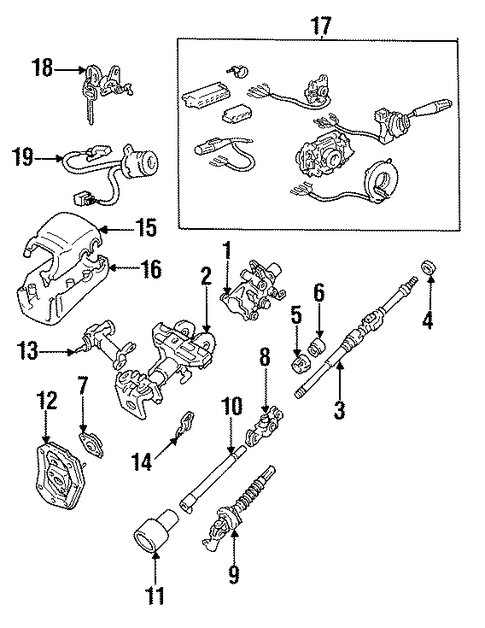

ELECTRICAL/SWITCHES for 1996 Toyota T100 #1
No. Part # Part # / Description List Price Price
1 45205-34020 45205-34020 / Tilt Housing

Tube

W/TILT WHEEL, UPPER

- -
2 45870-34080 45870-34080 / Jacket

Tube

W/TILT WHEEL, LOWER, AUTO TRANS

- -
2 45870-34070 45870-34070 / Tube Assembly

Tube

W/TILT WHEEL, LOWER, MANUAL TRANS

- -
3 45210-35170 45210-35170 / Upper Shaft

Main-shaft

W/TILT WHEEL, UPPER

$378.69 $277.76
4 90363-18011 90363-18011 / Shaft Bearing

Upper Bearing

W/TILT WHEEL, FROM 6/93

$7.84 $5.76
5 45273-16010 45273-16010 / Main-Shaft Bushing

Upper Bearing Lower Bushing

W/TILT WHEEL

$9.02 $6.61
6 45865-12060 45865-12060 / Collar

Upper Bearing Collar

W/TILT WHEEL

$12.21 $8.95
7 45292-35050 45292-35050 / Upper Shaft Dust Shield

Upper Bearing Seal

W/TILT WHEEL

$18.27 $13.41
8 45209-35030 45209-35030 / Yoke Assembly

Yoke

W/TILT WHEEL, LOWER

$181.44 $133.08
12 45025-34020 45025-34020 / Cover Housing

Hole Cover

W/TILT WHEEL, 2WD, AUTO TRANS

- -
12 45025-34040 45025-34040 / Cover Housing

Hole Cover

W/TILT WHEEL, 4WD, AUTO TRANS

- -
12 45025-34010 45025-34010 / Cover Housing

Hole Cover

W/TILT WHEEL, 2WD, MANUAL TRANS

- -
13 45280-34030 45280-34030 / Upper Bracket

W/TILT WHEEL, MANUAL TRANS

- -
13 45280-34040 45280-34040 / Upper Bracket

W/TILT WHEEL, AUTO TRANS

- -
14 45271-12050 45271-12050 / Clamp

W/TILT WHEEL

$16.06 $11.79
15 45286-34040-B0 45286-34040-B0 / Upper Cover

W/TILT WHEEL, AUTO TRANS

- -
15 45286-34030-B0 45286-34030-B0 / Upper Cover

W/TILT WHEEL, MANUAL TRANS

- -
16 45287-34030-B0 45287-34030-B0 / Lower Cover

W/TILT WHEEL, MANUAL TRANS

- -
16 45287-34040-B0 45287-34040-B0 / Lower Cover

W/TILT WHEEL, AUTO TRANS

- -
17 84310-34050 84310-34050 / Multi-Function Switch

Combo Switch

W/TILT WHEEL

$323.10 $236.97
17 84310-34050 84310-34050 / Multi-Function Switch

T100; W/TILT WHEEL

$323.10 $236.97
18 69057-34010 69057-34010 / Ignition Lock Cylinder

Ignition Lock

W/TILT WHEEL

$153.46 $112.56
18 69057-34010 69057-34010 / Ignition Lock Cylinder

T100

$153.46 $112.56
ELECTRICAL/SWITCHES for 1996 Toyota T100 #2
No. Part # Part # / Description List Price Price
1 45870-34070 45870-34070 / Tube Assembly

W/O TILT WHEEL, MANUAL TRANS

- -
1 45870-34060 45870-34060 / Tube Assembly

W/O TILT WHEEL, AUTO TRANS

- -
2 45210-35160 45210-35160 / Upper Shaft

W/O TILT WHEEL

$342.46 $251.19
3 45273-16010 45273-16010 / Main-Shaft Bushing

Upper Shaft Bushing

W/O TILT WHEEL

$9.02 $6.61
4 45292-35050 45292-35050 / Upper Shaft Dust Shield

W/O TILT WHEEL

$18.27 $13.41
5 45220-34011 45220-34011 / Intermediate Shaft

W/O TILT WHEEL, 2WD

- -
5 45860-35151 45860-35151 / Intermediate Shaft

W/O TILT WHEEL, 4WD

$140.41 $102.99
6 45206-34010 45206-34010 / Lower Shaft

W/O TILT WHEEL, 2WD

- -
6 45206-35020 45206-35020 / Lower Shaft

W/O TILT WHEEL, 4WD

- -
7 45636-34010 45636-34010 / Coupling Shield

Protector

W/O TILT WHEEL, 2WD

- -
7 45636-35040 45636-35040 / Coupling Shield

Protector

W/O TILT WHEEL, 4WD

$11.38 $8.34
8 45025-34030 45025-34030 / Cover Housing

Hole Cover

W/O TILT WHEEL, 4WD, MANUAL TRANS

$115.30 $84.57
9 45280-34010 45280-34010 / Upper Bracket

W/O TILT WHEEL, MANUAL TRANS

- -
10 45271-12050 45271-12050 / Clamp

Upper Bracket Clamp

W/O TILT WHEEL

$16.06 $11.79
11 45286-34020-B0 45286-34020-B0 / Upper Cover

W/O TILT WHEEL, AUTO TRANS

- -
11 45286-34050-B1 45286-34050-B1 / Upper Cover

W/O TILT WHEEL, MANUAL TRANS

$68.96 $50.58
12 45287-34010-B0 45287-34010-B0 / Lower Cover

W/O TILT WHEEL, MANUAL TRANS

- -
12 45287-34020-B0 45287-34020-B0 / Lower Cover

W/O TILT WHEEL, AUTO TRANS

- -
13 84310-34020 84310-34020 / Combo Switch

W/O TILT WHEEL, W/O CRUISE CONTROL

- -
13 84310-34030 84310-34030 / Combo Switch

W/O TILT WHEEL, W/CRUISE CONTROL

- -
14 84112-80178 84112-80178 / Headlamp Switch

Signal Switch

W/O TILT WHEEL

$144.29 $105.84
14 84112-80178 84112-80178 / Headlamp Switch

T100

$144.29 $105.84
15 84652-34040 84652-34040 / Wiper Switch

T100; STANDARD

- -
16 84140-35100 84140-35100 / Dimmer Switch

W/O TILT WHEEL

$80.28 $58.88
16 84140-35100 84140-35100 / Dimmer Switch

Headlamp Dimmer Switch

T100

$80.28 $58.88
19 84450-34010 84450-34010 / Ignition Switch

T100

$107.52 $78.86
No. Part # Part # / Description List Price Price
N/A 84231-22060 84231-22060 / Switch Courtesy Lam

Door Jamb Switch

T100

$21.12 $15.49
N/A 84540-30270 84540-30270 / Neutral Safety Switch

T100; AUTO TRANS

$276.13 $202.53
N/A 84332-34010 84332-34010 / Hazard Switch

T100

$69.94 $51.30
N/A 84550-34010 84550-34010 / Park Brake Warning Switch

T100

$37.15 $27.24
layer_9 84340-32050 84340-32050 / Stoplamp Switch

T100; W/O CRUISE CONTROL

$26.84 $19.68
layer_10 84520-24010 84520-24010 / Switch

Neutral Safety Switch

T100; MANUAL TRANS

$57.29 $42.02
No. Part # Part # / Description List Price Price
layer_9 84340-04030 84340-04030 / Switch

Stoplamp Switch

T100; W/CRUISE CONTROL

$64.73 $47.48
N/A 84652-34050 84652-34050 / Wiper Switch

T100; W/TILT WHEEL

- -
N/A 84210-30060 84210-30060 / Back-Up Switch

MANUAL TRANS; T100; 6 CYLINDER

$54.82 $40.21
layer_9 84119-32090 84119-32090 / Instrument Light Rheostat

T100; AUTO TRANS

$183.92 $134.90
layer_9 84119-35010 84119-35010 / Instrument Light Rheostat

T100; MANUAL TRANS; W/TACHOMETER

$122.74 $90.02
layer_9 84119-35020 84119-35020 / Instrument Light Rheostat

T100; MANUAL TRANS; W/O TACHOMETER

- -
