STEERING/STEERING GEAR & LINKAGE for 1996 Toyota RAV4

Select STEERING GEAR & LINKAGE Part

1996 Toyota RAV4

Change vehicle

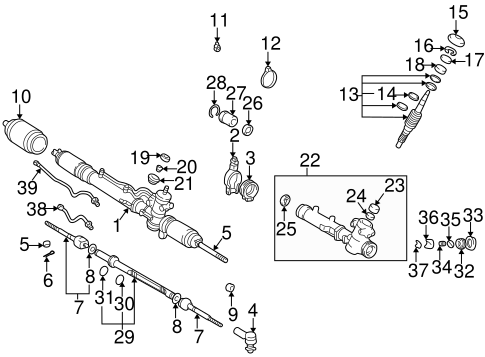

STEERING/STEERING GEAR & LINKAGE for 1996 Toyota RAV4 #1
No. Part # Part # / Description List Price Price
N/A 04445-42020 04445-42020 / Steering Gear Seal Kit

RAV4

$178.23 $133.67
N/A 44320-42011 44320-42011 / Power Steering Pump

RAV4

$453.28 $339.96
N/A 44410-42011 44410-42011 / Pressure Hose

RAV4

$215.35 $161.51
N/A 04446-20031 04446-20031 / Seal Kit

RAV4

$51.92 $38.94
N/A 44406-42020 44406-42020 / Return Hose

RAV4; W/O ABS

$118.20 $88.65
N/A 44406-42030 44406-42030 / Return Hose

RAV4; W/ABS; 2WD

- -
N/A 44406-42010 44406-42010 / Return Hose

RAV4; W/ABS; 4WD

$143.20 $107.40
1 45046-29305 45046-29305 / Outer Tie Rod

RAV4

$54.86 $41.15
2 45535-12100 45535-12100 / Tie Rod Boot

RAV4

$28.22 $21.17
3 45503-19215 45503-19215 / Inner Tie Rod

RAV4

$183.23 $137.42
6 44250-42040 44250-42040 / Steering Gear

RAV4; 4 DOOR

$1,100.25 $825.19
6 44250-42020 44250-42020 / Steering Gear

RAV4; 2 DOOR

$1,044.28 $783.21
7 44201-42021 44201-42021 / Pinion Valve

Control Valve

RAV4

- -
STEERING/STEERING GEAR & LINKAGE for 1996 Toyota RAV4 #2
No. Part # Part # / Description List Price Price
1 44250-42020 44250-42020 / Steering Gear

Gear Assembly

2 DOOR

$1,044.28 $783.21
1 44250-42040 44250-42040 / Steering Gear

Gear Assembly

4 DOOR

$1,100.25 $825.19
2 45514-42010 45514-42010 / Gear Assembly Bracket

$38.93 $29.20
3 45517-42010 45517-42010 / Gear Assembly Insulator

$34.51 $25.88
4 45046-29305 45046-29305 / Outer Tie Rod

Outer Tie Rod, LEFT

$54.86 $41.15
4 45046-29305 45046-29305 / Outer Tie Rod

Outer Tie Rod, RIGHT

$54.86 $41.15
5 90080-17220 90080-17220 / Outer Tie Rod Castle Nut

Outer Tie Rod Nut, RIGHT

$4.74 $3.56
5 90080-17220 90080-17220 / Outer Tie Rod Castle Nut

Outer Tie Rod Nut, LEFT

$4.74 $3.56
6 95381-03025 95381-03025 / Outer Tie Rod Cotter Pin

Outer Tie Rod Cotter Pin, LEFT

$1.03 $0.77
6 95381-03025 95381-03025 / Outer Tie Rod Cotter Pin

Outer Tie Rod Cotter Pin, RIGHT

$1.03 $0.77
7 45503-19215 45503-19215 / Inner Tie Rod

Inner Tie Rod, LEFT

$183.23 $137.42
7 45503-19215 45503-19215 / Inner Tie Rod

Inner Tie Rod, RIGHT

$183.23 $137.42
8 90214-14009 90214-14009 / Inner Tie Rod Washer

Inner Tie Rod Washer, RIGHT

$1.72 $1.29
8 90214-14009 90214-14009 / Inner Tie Rod Washer

Inner Tie Rod Washer, LEFT

$1.72 $1.29
9 90080-17080 90080-17080 / Tie Rod Nut

Inner Tie Rod Nut, RIGHT

- -
9 90080-17080 90080-17080 / Tie Rod Nut

Inner Tie Rod Nut, LEFT

- -
10 45535-12100 45535-12100 / Tie Rod Boot

Boot, LEFT

$28.22 $21.17
10 45535-12100 45535-12100 / Tie Rod Boot

Boot, RIGHT

$28.22 $21.17
11 90467-19019 90467-19019 / Boot Clamp

Boot Clamp, RIGHT

OUTER

$6.49 $4.87
11 90467-19019 90467-19019 / Boot Clamp

Boot Clamp, LEFT

OUTER

$6.49 $4.87
12 90460-52001 90460-52001 / Boot Clamp

Boot Clamp, RIGHT

INNER

$2.93 $2.20
12 90460-52001 90460-52001 / Boot Clamp

Boot Clamp, LEFT

INNER

$2.93 $2.20
13 44201-42021 44201-42021 / Pinion Valve

Pinion Valve, LEFT

- -
13 44201-42021 44201-42021 / Pinion Valve

Pinion Valve, RIGHT

- -
14 90562-33002 90562-33002 / Pinion Valve Ring

Pinion Valve Ring, RIGHT

$9.97 $7.48
14 90562-33002 90562-33002 / Pinion Valve Ring

Pinion Valve Ring, LEFT

$9.97 $7.48
15 45222-42010 45222-42010 / Pinion Valve Cap

Pinion Valve Cap, RIGHT

$8.56 $6.42
15 45222-42010 45222-42010 / Pinion Valve Cap

Pinion Valve Cap, LEFT

$8.56 $6.42
16 90521-41003 90521-41003 / Pinion Valve Snap Ring

Pinion Valve Snap Ring, LEFT

$13.25 $9.94
16 90521-41003 90521-41003 / Pinion Valve Snap Ring

Pinion Valve Snap Ring, RIGHT

$13.25 $9.94
17 90311-19007 90311-19007 / Pinion Valve Seal

Pinion Valve Seal, LEFT

$7.73 $5.80
17 90311-19007 90311-19007 / Pinion Valve Seal

Pinion Valve Seal, RIGHT

$7.73 $5.80
18 90369-19005 90369-19005 / Bearing

UPPER

$70.87 $53.15
19 90363-12008 90363-12008 / Bearing

LOWER

$79.57 $59.68
20 90179-12098 90179-12098 / Lock Nut

Lock Nut, RIGHT

$1.72 $1.29
20 90179-12098 90179-12098 / Lock Nut

Lock Nut, LEFT

$1.72 $1.29
21 44283-12010 44283-12010 / Cover

Cover, LEFT

$11.46 $8.60
21 44283-12010 44283-12010 / Cover

Cover, RIGHT

$11.46 $8.60
22 44240-42020 44240-42020 / Housing

2 DOOR

$488.54 $366.41
22 44240-42040 44240-42040 / Housing

4 DOOR

$630.44 $472.83
23 90389-28001 90389-28001 / Housing Bushing

$26.46 $19.85
24 90310-23005 90310-23005 / Housing Seal

UPPER

$6.52 $4.89
25 90310-24012 90310-24012 / Housing Seal

SIDE, INNER

$7.36 $5.52
27 44275-12090 44275-12090 / Stopper

$38.21 $28.66
28 90521-50002 90521-50002 / Stopper C-Clip

$11.87 $8.90
29 44204-42021 44204-42021 / Rack

$421.42 $316.07
30 90301-33003 90301-33003 / Rack Clamp

INNER

$4.86 $3.65
31 90562-37004 90562-37004 / Rack Clamp

OUTER

$2.18 $1.64
32 90501-30015 90501-30015 / Spring

$3.71 $2.78
33 90179-33003 90179-33003 / Cap Nut

Spring Nut

$9.11 $6.83
34 45524-12041 45524-12041 / Cap

Spring Cap

$10.92 $8.19
35 90208-22003 90208-22003 / Spring Washer

$1.06 $0.80
36 45523-12080 45523-12080 / Rack Guide

Spring Guide

$22.50 $16.88
37 44277-12040 44277-12040 / Spring Seat

$9.60 $7.20
38 44419-42020 44419-42020 / Pressure Line

SHORT

$29.39 $22.04
39 44418-42020 44418-42020 / Pressure Line

LONG

$34.74 $26.06
