REAR SUSPENSION/AXLE & DIFFERENTIAL for 1996 Toyota RAV4

Select AXLE & DIFFERENTIAL Part

1996 Toyota RAV4

Change vehicle

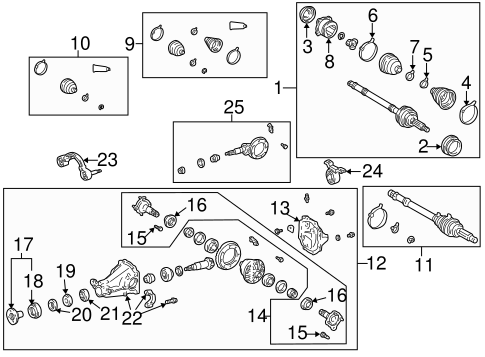

REAR SUSPENSION/AXLE & DIFFERENTIAL for 1996 Toyota RAV4 #1
No. Part # Part # / Description List Price Price
1 42330-42022 42330-42022 / Axle Assembly

Axle Assembly, RIGHT

4WD, W/ABS

- -
1 42340-42012 42340-42012 / Axle Assembly

Axle Assembly, LEFT

4WD, W/O ABS

$569.42 $417.64
1 42340-42022 42340-42022 / Axle Assembly

Axle Assembly, LEFT

4WD, W/ABS

$569.42 $417.64
1 42330-42010 42330-42010 / Axle Assembly

Axle Assembly, RIGHT

4WD, W/O ABS

$359.27 $263.51
2 42451-32010 42451-32010 / Dust Seal

Dust Seal, LEFT

4WD, OUTER, W/O ABS

$21.12 $15.49
2 43247-12010 43247-12010 / Dust Seal

Dust Seal, RIGHT

4WD, OUTER, W/ABS

$11.92 $8.75
2 43247-12010 43247-12010 / Dust Seal

Dust Seal, LEFT

4WD, OUTER, W/ABS

$11.92 $8.75
2 42451-32010 42451-32010 / Dust Seal

Dust Seal, RIGHT

4WD, OUTER, W/O ABS

$21.12 $15.49
3 42343-14010 42343-14010 / Dust Seal

Dust Seal, LEFT

4WD, INNER

$19.42 $14.25
3 42343-14010 42343-14010 / Dust Seal

Dust Seal, RIGHT

4WD, INNER

$19.42 $14.25
4 42345-16020 42345-16020 / Clamp

Clamp, LEFT

4WD, OUTER, LARGE

$9.45 $6.93
4 42345-16020 42345-16020 / Clamp

Clamp, RIGHT

4WD, OUTER, LARGE

$9.45 $6.93
5 42345-16010 42345-16010 / Inner Boot Clamp

Clamp, RIGHT

4WD, OUTER, SMALL

$4.86 $3.56
5 42345-16010 42345-16010 / Inner Boot Clamp

Clamp, LEFT

4WD, OUTER, SMALL

$4.86 $3.56
6 42345-14020 42345-14020 / Clamp

Clamp, LEFT

4WD, INNER, LARGE

$11.35 $8.32
6 42345-14020 42345-14020 / Clamp

Clamp, RIGHT

4WD, INNER, LARGE

$11.35 $8.32
7 42345-16030 42345-16030 / Clamp

Clamp, RIGHT

4WD, INNER, SMALL

$4.86 $3.56
7 42345-16030 42345-16030 / Clamp

Clamp, LEFT

4WD, INNER, SMALL

$4.86 $3.56
8 42350-42020 42350-42020 / Joint Assembly

Joint Assembly, LEFT

4WD

$236.27 $173.29
8 42350-42020 42350-42020 / Joint Assembly

Joint Assembly, RIGHT

4WD

$236.27 $173.29
9 04438-42160 04438-42160 / Boot Kit

Outer Boot, RIGHT

4WD

$61.02 $44.75
9 04438-42160 04438-42160 / Boot Kit

Outer Boot, LEFT

4WD

$61.02 $44.75
10 04438-42150 04438-42150 / Boot Kit

Inner Boot, RIGHT

4WD

$38.14 $27.97
10 04438-42150 04438-42150 / Boot Kit

Inner Boot, LEFT

4WD

$38.14 $27.97
11 42380-49015 42380-49015 / Axle Shafts

Outer Joint, LEFT

4WD, W/O ABS

$465.19 $341.20
11 42380-49025 42380-49025 / Axle Shafts

Outer Joint, LEFT

4WD, W/ABS

$465.19 $341.20
11 42370-49025 42370-49025 / Axle Shafts

Outer Joint, RIGHT

4WD, W/ABS

$337.04 $247.21
11 42370-49015 42370-49015 / Axle Shafts

Outer Joint, RIGHT

4WD, W/O ABS

$337.04 $247.21
12 41110-42011 41110-42011 / Differential Assembly

4WD, W/O LIMITED SLIP

$1,989.39 $1,459.13
12 41110-42020 41110-42020 / Differential Assembly

4WD, W/LIMITED SLIP

$3,741.09 $2,743.93
13 41181-42011 41181-42011 / Differential Cover

4WD

$211.50 $155.12
14 41309-32020 41309-32020 / Stub Shaft

Shaft Assembly, LEFT

4WD, W/O LIMITED SLIP

$135.47 $99.37
14 41309-42011 41309-42011 / Stub Shaft

Shaft Assembly, LEFT

4WD, W/LIMITED SLIP

$199.83 $146.57
14 41309-42011 41309-42011 / Stub Shaft

Shaft Assembly, RIGHT

4WD, W/LIMITED SLIP

$199.83 $146.57
14 41309-32020 41309-32020 / Stub Shaft

Shaft Assembly, RIGHT

4WD, W/O LIMITED SLIP

$135.47 $99.37
15 90114-10028 90114-10028 / Shaft Assembly Bolt

Shaft Assembly Bolt, RIGHT

4WD

$1.72 $1.27
15 90114-10028 90114-10028 / Shaft Assembly Bolt

Shaft Assembly Bolt, LEFT

4WD

$1.72 $1.27
16 41336-14010 41336-14010 / Stub Shaft Dust Shield

Shaft Assembly Seal, LEFT

4WD

$9.74 $7.15
16 41336-14010 41336-14010 / Stub Shaft Dust Shield

Shaft Assembly Seal, RIGHT

4WD

$9.74 $7.15
17 41204-20040 41204-20040 / Companion Flange

Flange

4WD

$67.20 $49.29
18 41252-22010 41252-22010 / Dust Cover

Flange Seal, LEFT

4WD

$16.89 $12.40
18 41252-22010 41252-22010 / Dust Cover

Flange Seal, RIGHT

4WD

$16.89 $12.40
19 41214-20020 41214-20020 / Oil Slinger

Slinger

4WD

$13.53 $9.93
20 90311-38068 90311-38068 / Seal

Slinger Seal, RIGHT

4WD

$10.63 $7.80
20 90311-38068 90311-38068 / Seal

Slinger Seal, LEFT

4WD

$10.63 $7.80
21 90368-30002 90368-30002 / Pinion Bearing

Bearing

4WD

$45.71 $33.53
22 41101-42010 41101-42010 / Differential Carrier

4WD

$453.34 $332.50
23 52380-42071 52380-42071 / Support

4WD, FRONT

$170.47 $125.03
24 52380-42082 52380-42082 / Support

4WD, REAR

$133.35 $97.81
25 41201-29748 41201-29748 / Ring & Pinion Gear

Pinion Assembly

4WD

$1,040.73 $763.33
