HVAC/CONDENSER, COMPRESSOR & LINES for 1996 Toyota Previa

Select CONDENSER, COMPRESSOR & LINES Part

1996 Toyota Previa

Change vehicle

HVAC/CONDENSER, COMPRESSOR & LINES for 1996 Toyota Previa #2

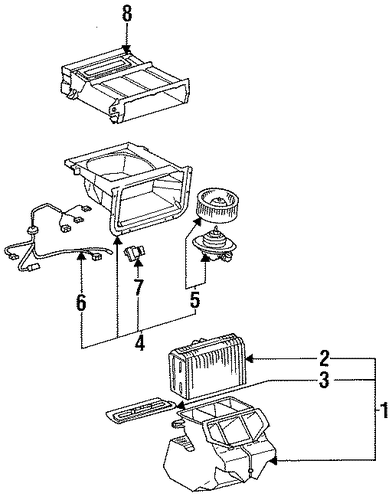

No. Part # Part # / Description List Price Price
1 88510-28440-B0 88510-28440-B0 / Evaporator Assembly

ROOF UNIT, DENSO

$2,511.23 $1,841.88
1 88510-28450-E0 88510-28450-E0 / Evaporator Assembly

ROOF UNIT, MATSUSHITA

- -
2 88501-28130 88501-28130 / Evaporator Core

Core

ROOF UNIT, DENSO

- -
2 88501-28140 88501-28140 / Evaporator Core

Core

ROOF UNIT, MATSUSHITA

- -
2 88501-28140 88501-28140 / Evaporator Core

PREVIA; REAR; MATSUSHITA

- -
2 88501-28130 88501-28130 / Evaporator Core

PREVIA; REAR; NIPPONDENSO

- -
3 88515-28070 88515-28070 / Expansion Valve

PREVIA; REAR; MATSUSHITA

- -
4 88515-28050 88515-28050 / Expansion Valve

PREVIA; REAR; NIPPONDENSO

$111.52 $81.80
5 88710-28890 88710-28890 / Tube Assembly

ROOF UNIT

- -
6 88504-95D01 88504-95D01 / Blower Assembly

Blower Assembly, RIGHT

ROOF UNIT, DENSO

$482.55 $353.93
6 88504-28040 88504-28040 / Blower Assembly

Blower Assembly, RIGHT

ROOF UNIT, MATSUSHITA

- -
6 88504-28030 88504-28030 / Blower Assembly

Blower Assembly, LEFT

ROOF UNIT, MATSUSHITA

- -
6 88504-95D03 88504-95D03 / Blower Assembly

Blower Assembly, LEFT

ROOF UNIT, DENSO

$482.55 $353.93
7 88550-28040 88550-28040 / Blower Motor

ROOF UNIT, ALL

$173.79 $127.47
8 87105-95D02 87105-95D02 / Fan

Fan, RIGHT

ROOF UNIT, DENSO

$35.52 $26.05
8 87105-95D03 87105-95D03 / Fan

Fan, LEFT

ROOF UNIT, DENSO

$35.52 $26.05
8 87105-95D00 87105-95D00 / Fan

Fan, RIGHT

ROOF UNIT, MATSUSHITA

$34.14 $25.05
8 87105-95D01 87105-95D01 / Fan

Fan, LEFT

ROOF UNIT, MATSUSHITA

- -
9 88544-95D02 88544-95D02 / Housing

Housing, RIGHT

ROOF UNIT, MATSUSHITA, UPPER

- -
9 88544-28050 88544-28050 / Housing

Housing, LEFT

ROOF UNIT, MATSUSHITA, UPPER

- -
10 88544-28030 88544-28030 / Housing

Housing, LEFT

ROOF UNIT, MATSUSHITA, LOWER

- -
10 88544-28040 88544-28040 / Housing

Housing, RIGHT

ROOF UNIT, MATSUSHITA, LOWER

- -
10 88544-95D04 88544-95D04 / Housing

Housing, LEFT

ROOF UNIT, DENSO

- -
10 88544-95D04 88544-95D04 / Housing

Housing, RIGHT

ROOF UNIT, DENSO

- -
12 88521-28030-E0 88521-28030-E0 / Trim Panel

ROOF UNIT, UPPER, MATSUSHITA

- -
12 88521-28010-B0 88521-28010-B0 / Trim Panel

ROOF UNIT, UPPER, DENSO

$248.72 $182.43
13 88502-28181-B0 88502-28181-B0 / Trim Panel

ROOF UNIT, LOWER, DENSO

$248.72 $182.43
13 88502-28300-E0 88502-28300-E0 / Trim Panel

ROOF UNIT, LOWER, MATSUSHITA

- -
14 88560-28070 88560-28070 / Louver

Louver, RIGHT

ROOF UNIT, INLET, DENSO

$66.40 $48.70
14 88560-95D01 88560-95D01 / Louver

Louver, LEFT

ROOF UNIT, INLET, MATSUSHITA

- -
14 88560-95D00 88560-95D00 / Louver

Louver, RIGHT

ROOF UNIT, INLET, MATSUSHITA

- -
14 88560-28080 88560-28080 / Louver

Louver, LEFT

ROOF UNIT, INLET, DENSO

$66.40 $48.70
16 88570-28111 88570-28111 / Louver

Louver, LEFT

ROOF UNIT, OUTLET, DENSO

$66.40 $48.70
16 88570-95D00 88570-95D00 / Louver

Louver, RIGHT

ROOF UNIT, OUTLET, MATSUSHITA

- -
16 88570-95D01 88570-95D01 / Louver

Louver, LEFT

ROOF UNIT, OUTLET, MATSUSHITA

- -
16 88570-28101 88570-28101 / Louver

Louver, RIGHT

ROOF UNIT, OUTLET, DENSO

$66.40 $48.70

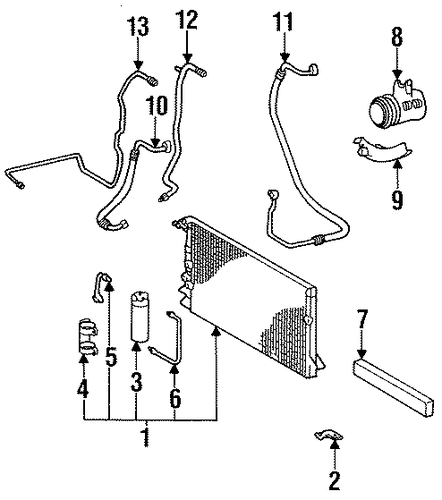

No. Part # Part # / Description List Price Price
1 88460-28220 88460-28220 / Condenser Assembly

$436.04 $319.81
1 88460-28220 88460-28220 / Condenser Assembly

Condenser

PREVIA

$436.04 $319.81
2 88463-28210 88463-28210 / Condenser Assembly Bracket

Condenser Assembly Bracket, LEFT

SIDE

- -
2 88463-28200 88463-28200 / Condenser Assembly Bracket

Condenser Assembly Bracket, RIGHT

SIDE

- -
2 88463-28240 88463-28240 / Condenser Assembly Bracket

LOWER

$18.49 $13.57
3 88471-28070 88471-28070 / Drier

Dehydrator

$80.90 $59.34
3 88471-28070 88471-28070 / Drier

PREVIA

$80.90 $59.34
4 88472-28030 88472-28030 / Dehydrator Bracket

$30.31 $22.23
5 88716-2J040 88716-2J040 / Pipe

TO DRIER

$26.68 $19.57
6 88716-2J050 88716-2J050 / Pipe

TO EVAPORATOR LINE

$40.67 $29.83
7 69759-12060 69759-12060 / Lock Rod Silencer

Pipe Packing

- -
9 88447-95D00 88447-95D00 / Compressor Assembly Adjust Bracket

$19.52 $14.31
10 88712-28190 88712-28190 / Suction Hose

W/SUPERCHARGER

$129.68 $95.11
10 88712-28190 88712-28190 / Suction Hose

AC Hoses

PREVIA; COMPRESSOR TO EVAPORATOR; W/SUPERCHARGER

$129.68 $95.11
13 88716-2J090 88716-2J090 / Pipe

W/REAR AC, W/O COOLER BOX

$198.52 $145.61
13 88716-2J100 88716-2J100 / Pipe

W/REAR AC, W/COOLER BOX

- -
No. Part # Part # / Description List Price Price
N/A 88630-28070 88630-28070 / Relay

PREVIA; DUAL A/C

$64.11 $47.03
N/A 88335-2B030 88335-2B030 / Gasket Kit

PREVIA

$54.41 $39.91
layer_9 88515-22240 88515-22240 / Expansion Valve

PREVIA; FRONT

$93.55 $68.61
layer_13 88403-06050 88403-06050 / Clutch Plate & Hub Assembly

Clutch Hub Assembly

PREVIA

$98.87 $72.52
N/A 88411-28020 88411-28020 / Clutch Coil

PREVIA; W/SUPERCHARGER

- -
N/A 88410-28110 88410-28110 / Clutch Hub Assembly

Clutch

PREVIA; W/SUPERCHARGER

$195.84 $143.64
No. Part # Part # / Description List Price Price
N/A 88412-28050 88412-28050 / Clutch Hub Assembly

Rotor

PREVIA; W/SUPERCHARGER

- -
N/A 88711-28310 88711-28310 / AC Hoses

PREVIA; COMPRESSOR TO CONDENSER; W/SUPERCHARGER

$142.36 $104.41
N/A 88360-2B020 88360-2B020 / Shaft Seal Kit

Shaft Seals

PREVIA

$76.85 $56.36
N/A 88630-95D02 88630-95D02 / Relay

PREVIA; COOLER BOX

$64.11 $47.03
layer_10 88320-60580-84 88320-60580-84 / Compressor Assembly

Compressor

PREVIA; W/SUPERCHARGER

$437.96 $320.58
