REAR SUSPENSION/REAR SUSPENSION for 1996 Toyota Corolla

Select REAR SUSPENSION Part

1996 Toyota Corolla

Change vehicle

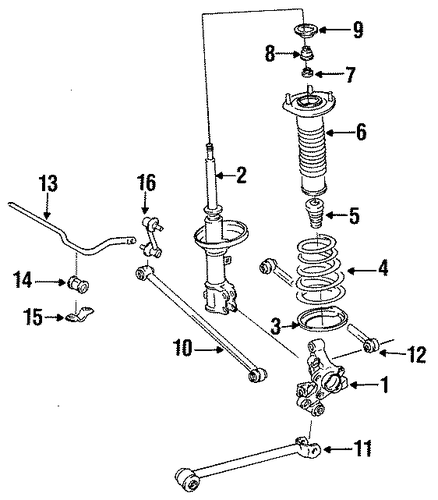

REAR SUSPENSION/REAR SUSPENSION for 1996 Toyota Corolla #1
No. Part # Part # / Description List Price Price
5 42409-19015 42409-19015 / Rear Wheel Bearing

COROLLA; W/O ABS

$213.62 $156.68
1 42450-12010 42450-12010 / Hub & Bearing

Hub Assembly

COROLLA; W/ABS

- -
1 42410-12090 42410-12090 / Hub & Bearing

Hub Assembly

COROLLA; W/O ABS

$427.97 $313.89
2 42305-12130 42305-12130 / Knuckle

COROLLA; LEFT; W/O ABS

$289.68 $212.46
2 42304-12090 42304-12090 / Knuckle

COROLLA; RIGHT; W/ABS

$289.68 $212.46
2 42304-12130 42304-12130 / Knuckle

COROLLA; RIGHT; W/O ABS

$289.68 $212.46
2 42305-12090 42305-12090 / Knuckle

COROLLA; LEFT; W/ABS

$289.68 $212.46
3 48730-12110 48730-12110 / Rear Lower Control Arm

Control Arm

COROLLA; REAR ARM

$234.86 $172.26
3 48710-02060 48710-02060 / Ft Lower Control Arm

Control Arm

COROLLA; FRONT ARM

$191.70 $140.61
4 48780-32060 48780-32060 / Strut Rod

COROLLA

$170.12 $124.78
5 48540-12510 48540-12510 / Strut

COROLLA; LEFT

$196.41 $144.06
5 48530-19715 48530-19715 / Strut

COROLLA; RIGHT

$211.06 $154.81
6 48231-1E090 48231-1E090 / Coil Spring

COROLLA; COUPE, SEDAN

$111.83 $82.02
6 48231-1E890 48231-1E890 / Coil Spring

COROLLA; WAGON

$97.29 $71.36
7 48071-12140 48071-12140 / Strut Mount

COROLLA; RIGHT

$165.53 $121.40
7 48072-12140 48072-12140 / Strut Mount

COROLLA; LEFT

$165.53 $121.40
9 48818-12150 48818-12150 / Stabilizer Bar Bushing

Bushings

COROLLA

$11.35 $8.32
10 48830-20010 48830-20010 / Stabilizer Link

Link

COROLLA

$73.55 $53.95
REAR SUSPENSION/REAR SUSPENSION for 1996 Toyota Corolla #2
No. Part # Part # / Description List Price Price
1 42305-12090 42305-12090 / Knuckle

Knuckle, LEFT

W/ABS

$289.68 $212.46
1 42304-12090 42304-12090 / Knuckle

Knuckle, RIGHT

W/ABS

$289.68 $212.46
1 42305-12130 42305-12130 / Knuckle

Knuckle, LEFT

W/O ABS

$289.68 $212.46
1 42304-12130 42304-12130 / Knuckle

Knuckle, RIGHT

W/O ABS

$289.68 $212.46
2 48540-12510 48540-12510 / Strut

Strut, LEFT

ALL

$196.41 $144.06
2 48530-19715 48530-19715 / Strut

Strut, RIGHT

ALL

$211.06 $154.81
3 48258-12040 48258-12040 / Insulator

Insulator, RIGHT

$29.31 $21.50
3 48258-12040 48258-12040 / Insulator

Insulator, LEFT

$29.31 $21.50
4 48231-1E090 48231-1E090 / Coil Spring

Spring, LEFT

SEDAN, 1.6 LITER

$111.83 $82.02
4 48231-1E090 48231-1E090 / Coil Spring

Spring, RIGHT

SEDAN, 1.6 LITER

$111.83 $82.02
5 48341-12180 48341-12180 / Bumper

Bumper, LEFT

JAPAN BUILT

$54.10 $39.69
5 48341-12180 48341-12180 / Bumper

Bumper, RIGHT

JAPAN BUILT

$54.10 $39.69
5 48341-12130 48341-12130 / Bumper

Bumper, RIGHT

US BUILT

$19.91 $14.60
5 48341-12130 48341-12130 / Bumper

Bumper, LEFT

US BUILT

$19.91 $14.60
6 48072-12130 48072-12130 / Support

Support, LEFT

JAPAN BUILT

$141.48 $103.77
6 48071-12130 48071-12130 / Support

Support, RIGHT

JAPAN BUILT

$141.48 $103.77
6 48071-12140 48071-12140 / Strut Mount

Support, RIGHT

US BUILT

$165.53 $121.40
6 48072-12140 48072-12140 / Strut Mount

Support, LEFT

US BUILT

$165.53 $121.40
7 90080-38148 90080-38148 / Collar

Collar, RIGHT

$9.02 $6.61
7 90080-38148 90080-38148 / Collar

Collar, LEFT

$9.02 $6.61
8 90080-17217 90080-17217 / Top Nut

Collar Nut, LEFT

$3.25 $2.38
8 90080-17217 90080-17217 / Top Nut

Collar Nut, RIGHT

$3.25 $2.38
9 48753-12010 48753-12010 / Upper Cover

Cover, LEFT

$10.29 $7.54
9 48753-12010 48753-12010 / Upper Cover

Cover, RIGHT

$10.29 $7.54
10 48710-02060 48710-02060 / Ft Lower Control Arm

Ft Lower Control Arm, RIGHT

$191.70 $140.61
10 48710-02060 48710-02060 / Ft Lower Control Arm

Ft Lower Control Arm, LEFT

$191.70 $140.61
11 48780-02020 48780-02020 / Trailing Arm

Trailing Arm, LEFT

JAPAN BUILT

$166.59 $122.18
11 48780-02020 48780-02020 / Trailing Arm

Trailing Arm, RIGHT

JAPAN BUILT

$166.59 $122.18
11 48780-33010 48780-33010 / Strut Rod

Trailing Arm, LEFT

US BUILT

$170.12 $124.78
11 48780-33010 48780-33010 / Strut Rod

Trailing Arm, RIGHT

US BUILT

$170.12 $124.78
12 48730-12110 48730-12110 / Rear Lower Control Arm

Rear Lower Control Arm, RIGHT

$234.86 $172.26
12 48730-12110 48730-12110 / Rear Lower Control Arm

Rear Lower Control Arm, LEFT

$234.86 $172.26
13 48812-12170 48812-12170 / Stabilizer Bar

$93.98 $68.93
14 48818-12150 48818-12150 / Stabilizer Bar Bushing

Stabilizer Bar Bushing, LEFT

JAPAN BUILT

$11.35 $8.32
14 48818-12150 48818-12150 / Stabilizer Bar Bushing

Stabilizer Bar Bushing, RIGHT

JAPAN BUILT

$11.35 $8.32
15 48832-20030 48832-20030 / Stabilizer Bar Bracket

Stabilizer Bar Bracket, RIGHT

$5.40 $3.97
15 48832-20030 48832-20030 / Stabilizer Bar Bracket

Stabilizer Bar Bracket, LEFT

$5.40 $3.97
16 48830-20010 48830-20010 / Stabilizer Link

Stabilizer Link, LEFT

$73.55 $53.95
16 48830-20010 48830-20010 / Stabilizer Link

Stabilizer Link, RIGHT

$73.55 $53.95
No. Part # Part # / Description List Price Price
layer_11 90119-12152 90119-12152 / Trailing Arm Bolt

Trailing Arm Bolt, LEFT

$4.54 $3.33
layer_13 90179-A0004 90179-A0004 / Strut Rod Nut

Trailing Arm Nut, RIGHT

BODY SIDE

$2.76 $2.03
N/A 90105-14083 90105-14083 / Ft Lower Control Arm Bolt

Ft Lower Control Arm Bolt, RIGHT

$11.12 $8.15
layer_7 90080-17227 90080-17227 / Stabilizer Link Lock Nut

Stabilizer Link Nut, LEFT

$1.95 $1.43
N/A 90105-14083 90105-14083 / Ft Lower Control Arm Bolt

Ft Lower Control Arm Bolt, LEFT

$11.12 $8.15
layer_8 90209-15002 90209-15002 / Ft Lower Control Arm Washer

Ft Lower Control Arm Washer, LEFT

$8.91 $6.53
No. Part # Part # / Description List Price Price
layer_11 90119-12152 90119-12152 / Trailing Arm Bolt

Trailing Arm Bolt, RIGHT

$4.54 $3.33
N/A 90179-12062 90179-12062 / Trailing Arm Nut

Trailing Arm Nut, LEFT

CARRIER SIDE

$3.05 $2.23
layer_8 90209-15002 90209-15002 / Ft Lower Control Arm Washer

Ft Lower Control Arm Washer, RIGHT

$8.91 $6.53
N/A 90179-12062 90179-12062 / Trailing Arm Nut

Trailing Arm Nut, RIGHT

CARRIER SIDE

$3.05 $2.23
layer_13 90179-A0004 90179-A0004 / Strut Rod Nut

Trailing Arm Nut, LEFT

BODY SIDE

$2.76 $2.03
layer_7 90080-17227 90080-17227 / Stabilizer Link Lock Nut

Stabilizer Link Nut, RIGHT

$1.95 $1.43
