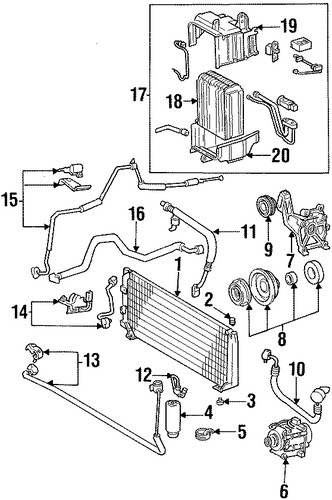

HVAC/EVAPORATOR COMPONENTS for 1996 Toyota Corolla

Select EVAPORATOR COMPONENTS Part

1996 Toyota Corolla

Change vehicle

No. Part # Part # / Description List Price Price
1 88460-12460 88460-12460 / Condenser

$389.53 $285.70
2 88467-12110 88467-12110 / Condenser Insulator

UPPER

$4.45 $3.26
3 88467-12100 88467-12100 / Condenser Insulator

LOWER

$4.45 $3.26
4 88471-02020 88471-02020 / Dehydrator

$78.87 $57.85
4 88471-02020 88471-02020 / Dehydrator

Drier

COROLLA

$78.87 $57.85
5 88473-12080 88473-12080 / Dehydrator Bracket

$43.41 $31.84
6 88320-1A420-84 88320-1A420-84 / Compressor

$424.36 $310.62
7 88431-12550 88431-12550 / Compressor Mount Bracket

$369.19 $270.78
8 88410-1A110 88410-1A110 / Clutch

ALL

$193.00 $141.56
8 88410-12240 88410-12240 / Clutch Drive

Clutch

US BUILT

$189.61 $139.07
9 88440-17010 88440-17010 / Idler Pulley

$54.27 $39.81
10 88711-1A130 88711-1A130 / Discharge Hose

$132.88 $97.47
11 88712-1A150 88712-1A150 / Suction Hose

$139.30 $102.18
12 88726-12410 88726-12410 / AC Line

COND TO DEHYDRATOR

$31.33 $22.98
13 88706-12290 88706-12290 / AC Line

EVAPORATOR TO DEHYDRATOR, FRONT

$117.18 $85.95
14 88705-12080 88705-12080 / Discharge Pipe

$97.03 $71.16
15 88710-12400 88710-12400 / AC Line

EVAPORATOR TO DEHYDRATOR, REAR

$284.19 $208.44
16 88717-12720 88717-12720 / Suction Pipe

$118.73 $87.08
17 88510-1A241 88510-1A241 / Evaporator Assembly

JAPAN BUILT

- -
17 88510-02041 88510-02041 / Evaporator Assembly

US BUILT

$1,690.54 $1,239.93
18 88501-12370 88501-12370 / Evaporator Core

Core

$256.83 $188.37
19 88502-12210 88502-12210 / Case

UPPER

$124.05 $90.99
20 88502-12220 88502-12220 / Case

LOWER

$124.05 $90.99
No. Part # Part # / Description List Price Price
N/A 88710-12340 88710-12340 / Tube

$116.21 $85.23
layer_9 88515-22240 88515-22240 / Expansion Valve

$93.55 $68.61
No. Part # Part # / Description List Price Price
layer_4 88578-20470 88578-20470 / Case Gasket

$9.63 $7.06
