COOLING SYSTEM/RADIATOR & COMPONENTS for 1996 Toyota Corolla

Select RADIATOR & COMPONENTS Part

1996 Toyota Corolla

Change vehicle

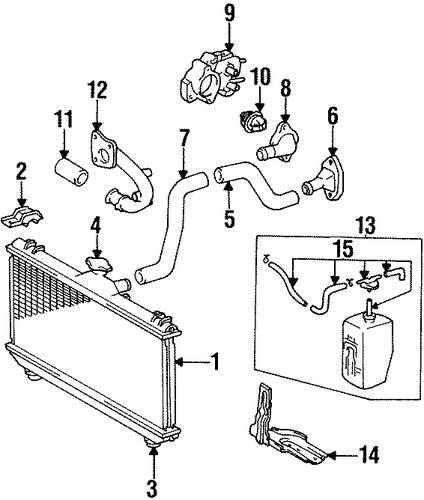

COOLING SYSTEM/RADIATOR & COMPONENTS for 1996 Toyota Corolla #1
No. Part # Part # / Description List Price Price
N/A 16325-63011 16325-63011 / Gasket

COROLLA

$5.98 $4.49
N/A 90987-03003 90987-03003 / Fan Relay

COROLLA

$66.14 $49.61
N/A 89428-12160 89428-12160 / Fan Switch

COROLLA

$108.58 $81.44
1 16400-16660 16400-16660 / Radiator

COROLLA; SEDAN, WAGON; MANUAL TRANS; 1.6L

$459.76 $344.82
1 16400-16720 16400-16720 / Radiator Assembly

Radiator

COROLLA; SEDAN, WAGON; AUTO TRANS; 3-SPEED

$466.20 $349.65
1 16400-16740 16400-16740 / Radiator Assembly

Radiator

COROLLA; SEDAN, WAGON; AUTO TRANS; 4-SPEED

$521.87 $391.40
5 90916-03046 90916-03046 / Thermostat

COROLLA

$24.13 $18.10
6 16321-15040 16321-15040 / Thermostat Housing

COROLLA

$32.75 $24.56
8 16361-11020 16361-11020 / Fan Blade

COROLLA

$63.80 $47.85
9 16363-74020 16363-74020 / Fan Motor

COROLLA

$232.70 $174.53
10 16711-15271 16711-15271 / Fan Shroud

COROLLA

$114.04 $85.53
No. Part # Part # / Description List Price Price
1 16410-02101 16410-02101 / Radiator Assembly

MANUAL TRANS, NIPPON DENSO

$628.14 $471.11
1 16400-16740 16400-16740 / Radiator Assembly

MANUAL TRANS, HARRISON

$521.87 $391.40
1 16400-16720 16400-16720 / Radiator Assembly

AUTO TRANS, JAPAN BUILT, 3 SPEED

$466.20 $349.65
1 16400-16440 16400-16440 / Radiator Assembly

AUTO TRANS, US BUILT, 1.6 LITER

- -
2 16533-15120 16533-15120 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, RIGHT

W/ABS

$41.43 $31.07
2 16533-15130 16533-15130 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, LEFT

W/ABS

$44.99 $33.74
2 16533-15120 16533-15120 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, LEFT

W/O ABS

$41.43 $31.07
3 16535-11030 16535-11030 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, RIGHT

US BUILT, HARRISON

$33.93 $25.45
3 16535-11030 16535-11030 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, LEFT

US BUILT, ND, AUTO TRANS

$33.93 $25.45
3 90916-04002 90916-04002 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, LEFT

US BUILT, ND, MANUAL TRANS

$15.00 $11.25
3 90916-04002 90916-04002 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, RIGHT

US BUILT, ND, MANUAL TRANS

$15.00 $11.25
4 16401-16020 16401-16020 / Radiator Cap

US BUILT, W/O NIPPONDENSO

$18.80 $14.10
4 16401-20353 16401-20353 / Cap

Radiator Cap

JAPAN BUILT, ALL

$14.82 $11.12
5 16571-15160 16571-15160 / Upper Hose

1.6 LITER

$21.54 $16.16
6 16331-15080 16331-15080 / Outlet Hose

Water Outlet

$16.92 $12.69
7 16572-02020 16572-02020 / Lower Hose

1.6 LITER, JAPAN BUILT

$34.36 $25.77
8 16321-15040 16321-15040 / Thermostat Housing

Inlet

$32.75 $24.56
9 16323-16410 16323-16410 / Housing

$108.92 $81.69
10 90916-03046 90916-03046 / Thermostat

$24.13 $18.10
11 16262-16030 16262-16030 / Inlet Hose

$10.56 $7.92
12 16322-15050 16322-15050 / Inlet Pipe

1.6 LITER

$65.37 $49.03
13 16470-15090 16470-15090 / Reservoir

JAPAN BUILT

$74.52 $55.89
13 16470-15081 16470-15081 / Reservoir

US BUILT

$74.82 $56.12
14 16611-15020 16611-15020 / Reservoir Bracket

$21.43 $16.07
15 16405-15100 16405-15100 / Reservoir Cap

JAPAN BUILT

$14.18 $10.64
15 16405-02021 16405-02021 / Reservoir Cap

US BUILT

$31.16 $23.37
