FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 1996 Toyota Camry

Select FUEL SYSTEM COMPONENTS Part

1996 Toyota Camry

Change vehicle

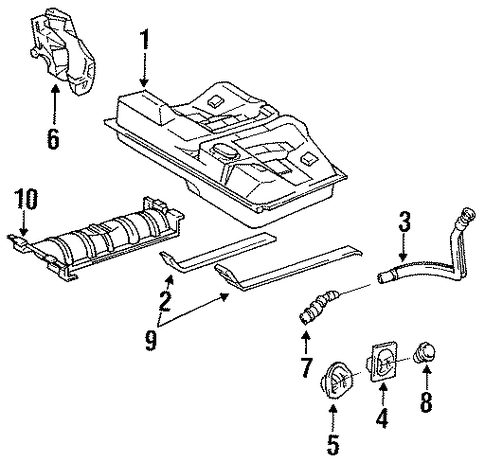

No. Part # Part # / Description List Price Price
1 77001-39315 77001-39315 / Fuel Tank

- -
2 77681-32060 77681-32060 / Mount Strap Insulator

Strap Insulator, LEFT

$28.13 $20.63
2 77681-32060 77681-32060 / Mount Strap Insulator

Strap Insulator, RIGHT

$28.13 $20.63
3 77201-33010 77201-33010 / Filler Neck

$182.16 $133.61
4 77290-32030 77290-32030 / Protector

SEDAN

$40.31 $29.57
5 77293-32020 77293-32020 / Inner Shield

SEDAN & WAGON

$48.82 $35.81
6 77277-33010 77277-33010 / Shield

SEDAN, COUPE

$57.67 $42.30
7 77213-33020 77213-33020 / Connector Hose

Hose

$54.10 $39.69
8 77310-12140 77310-12140 / Cap

Filler Cap

JAPAN BUILT

$29.31 $21.50
8 77310-48020 77310-48020 / Cap

Filler Cap

US BUILT

$29.31 $21.50
9 77602-33010 77602-33010 / Fuel Tank Mount Strap

Tank Strap, LEFT

$71.08 $52.14
9 77601-33010 77601-33010 / Fuel Tank Mount Strap

Tank Strap, RIGHT

$71.08 $52.14
10 77631-06011 77631-06011 / Tank Shield

Shield

$62.61 $45.92
No. Part # Part # / Description List Price Price
1 88200-33020 88200-33020 / Plenum Gasket

Actuator

4 CYLINDER, JAPAN BUILT

- -
1 88200-33010 88200-33010 / Plenum Gasket

Actuator

4 CYLINDER, US BUILT

- -
1 88200-33020 88200-33020 / Plenum Gasket

CAMRY; 2.2L

- -
2 78100-33020 78100-33020 / Linkage Rod

NIPPON DENSO

- -
2 78100-33010 78100-33010 / Linkage Rod

AISIN

- -
3 78021-33010 78021-33010 / Linkage Rod Bracket

- -
4 78113-33010 78113-33010 / Cover

AISIN

- -
4 78113-33020 78113-33020 / Cover

NIPPON DENSO

- -
5 78180-33100 78180-33100 / Throttle Cable

Control Cable

ALL

$114.24 $83.79
5 78180-33100 78180-33100 / Throttle Cable

CAMRY; 2.2L; W/O SOLARA; W/CRUISE CONTROL

$114.24 $83.79
6 78024-33020 78024-33020 / Control Cable Bracket

- -
7 78150-33040 78150-33040 / Cable

ACCELERATOR, 4 CYLINDER

$87.00 $63.81
8 88240-33070 88240-33070 / Computer

ALL

- -
8 88240-33070 88240-33070 / Computer

Module

CAMRY

- -
No. Part # Part # / Description List Price Price
23 83320-80204 83320-80204 / Fuel Gauge Sending Unit

Gauge

$199.83 $146.57
N/A 77391-16011 77391-16011 / Inner Shield O-Ring

$4.14 $3.04
layer_44 77316-16010 77316-16010 / Fuel Cap Gasket

Filler Cap Gasket

$16.58 $12.16
21 23206-62010 23206-62010 / Fuel Pump Bracket

$145.73 $106.88
19 23217-62020 23217-62020 / Fuel Filter

Filter

$12.24 $8.98
17 77011-41010 77011-41010 / Lower Pipe

$33.73 $24.74
No. Part # Part # / Description List Price Price
18 23220-03020 23220-03020 / Fuel Pump

ALL

$432.79 $317.43
N/A 23807-74060 23807-74060 / Fuel Rail

CAMRY; 2.2L

- -
N/A 23209-74100 23209-74100 / Injector

CAMRY; 2.2L; FEDERAL

$202.32 $148.39
5 78180-33040 78180-33040 / Throttle Cable

CAMRY; 2.2L; W/O SOLARA; W/O CRUISE CONTROL

$123.43 $90.54
N/A 23280-74100 23280-74100 / Fuel Pressure Regulator

CAMRY; 2.2L

$189.58 $139.04
N/A 23209-74140 23209-74140 / Injector

CAMRY; 2.2L; CALIFORNIA

$202.32 $148.39
