FRONT SUSPENSION/SUSPENSION COMPONENTS for 1996 Toyota Avalon

Select SUSPENSION COMPONENTS Part

1996 Toyota Avalon

Change vehicle

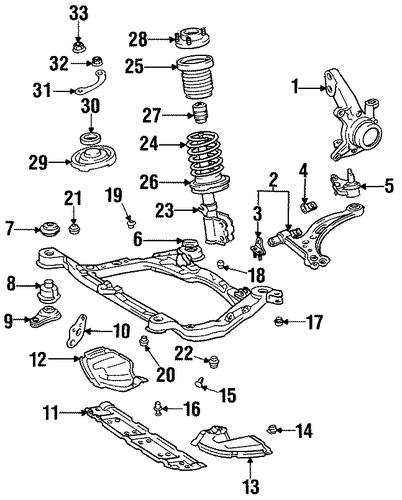

FRONT SUSPENSION/SUSPENSION COMPONENTS for 1996 Toyota Avalon #1
No. Part # Part # / Description List Price Price
1 43212-33011 43212-33011 / Knuckle

Knuckle, LEFT

$315.28 $236.46
1 43211-33011 43211-33011 / Knuckle

Knuckle, RIGHT

$315.28 $236.46
2 48068-33020 48068-33020 / Lower Control Arm

Lower Control Arm, RIGHT

$378.23 $283.67
2 48069-33020 48069-33020 / Lower Control Arm

Lower Control Arm, LEFT

$378.23 $283.67
3 48837-33011 48837-33011 / Lower Control Arm Bracket

Lower Control Arm Bracket, LEFT

$16.55 $12.41
3 48836-33011 48836-33011 / Lower Control Arm Bracket

Lower Control Arm Bracket, RIGHT

$24.25 $18.19
4 48657-33020 48657-33020 / Lower Control Arm Stopper

Lower Control Arm Stopper, RIGHT

$14.14 $10.61
4 48657-33020 48657-33020 / Lower Control Arm Stopper

Lower Control Arm Stopper, LEFT

$14.14 $10.61
5 43330-39435 43330-39435 / Ball Joint

Lower Ball Joint, RIGHT

$74.29 $55.72
5 43330-39435 43330-39435 / Ball Joint

Lower Ball Joint, LEFT

$74.29 $55.72
6 51100-33030 51100-33030 / Engine Cradle

$2,016.00 $1,512.00
7 52213-07010 52213-07010 / Engine Cradle Stopper

Engine Cradle Stopper, RIGHT

UPPER, FRONT

$31.20 $23.40
7 52216-07010 52216-07010 / Engine Cradle Stopper

Engine Cradle Stopper, LEFT

UPPER, REAR

$39.28 $29.46
7 52213-07010 52213-07010 / Engine Cradle Stopper

Engine Cradle Stopper, LEFT

UPPER, FRONT

$31.20 $23.40
7 52216-07010 52216-07010 / Engine Cradle Stopper

Engine Cradle Stopper, RIGHT

UPPER, REAR

$39.28 $29.46
8 52211-07010 52211-07010 / Engine Cradle Cushion

Engine Cradle Cushion, RIGHT

FRONT

$109.99 $82.49
8 52215-07010 52215-07010 / Engine Cradle Cushion

Engine Cradle Cushion, RIGHT

REAR

$98.21 $73.66
8 52211-07010 52211-07010 / Engine Cradle Cushion

Engine Cradle Cushion, LEFT

FRONT

$109.99 $82.49
8 52215-07010 52215-07010 / Engine Cradle Cushion

Engine Cradle Cushion, LEFT

REAR

$98.21 $73.66
9 52256-33010 52256-33010 / Mount Cushion Brace

Engine Cradle Brace, LEFT

FRONT

$42.15 $31.61
9 52255-33010 52255-33010 / Mount Cushion Brace

Engine Cradle Brace, RIGHT

FRONT

$42.15 $31.61
9 51024-33010 51024-33010 / Engine Cradle Brace

Engine Cradle Brace, LEFT

REAR

$79.27 $59.45
9 51023-33010 51023-33010 / Engine Cradle Brace

Engine Cradle Brace, RIGHT

REAR

$79.27 $59.45
10 51963-AC010 51963-AC010 / Tow Hook

Tow Hook, LEFT

$50.37 $37.78
10 51963-AC010 51963-AC010 / Tow Hook

Tow Hook, RIGHT

$50.37 $37.78
11 51447-33010 51447-33010 / Splash Shield

Under Cover

CENTER

$70.37 $52.78
12 51441-AC010 51441-AC010 / Under Cover

Under Cover, RIGHT

SIDE

$71.08 $53.31
13 51442-AC010 51442-AC010 / Under Cover

Under Cover, LEFT

SIDE

$71.08 $53.31
14 90467-04023 90467-04023 / Fender Liner Clip

Under Cover Clip, RIGHT

$2.33 $1.75
14 90467-04023 90467-04023 / Fender Liner Clip

Under Cover Clip, LEFT

$2.33 $1.75
15 90189-A0002 90189-A0002 / Fender Liner Grommet

Under Cover Grommet, LEFT

$1.12 $0.84
15 90189-A0002 90189-A0002 / Fender Liner Grommet

Under Cover Grommet, RIGHT

$1.12 $0.84
16 90467-07138-C0 90467-07138-C0 / Trunk Lid Trim Clip

Under Cover Retainer, LEFT

$2.47 $1.85
16 90467-07138-C0 90467-07138-C0 / Trunk Lid Trim Clip

Under Cover Retainer, RIGHT

$2.47 $1.85
18 90950-01766 90950-01766 / Bumper

Bumper, LEFT

UPPER REAR

$3.39 $2.54
18 90950-01766 90950-01766 / Bumper

Bumper, RIGHT

UPPER REAR

$3.39 $2.54
20 90950-01765 90950-01765 / Engine Cradle Nut

Bumper, LEFT

LOWER FRONT

$3.05 $2.29
20 90950-01765 90950-01765 / Engine Cradle Nut

Bumper, RIGHT

LOWER FRONT

$3.05 $2.29
21 90950-A1006 90950-A1006 / Bumper

Bumper, LEFT

UPPER SIDE

$3.05 $2.29
21 90950-A1006 90950-A1006 / Bumper

Bumper, RIGHT

UPPER SIDE

$3.05 $2.29
22 90950-01433 90950-01433 / Bumper

Bumper, LEFT

LOWER SIDE

$3.65 $2.74
22 90950-01433 90950-01433 / Bumper

Bumper, RIGHT

LOWER SIDE

$3.65 $2.74
23 48520-09035 48520-09035 / Strut

Strut, LEFT

$198.28 $148.71
23 48510-09045 48510-09045 / Strut

Strut, RIGHT

$198.28 $148.71
24 48131-33010 48131-33010 / Coil Spring

Spring, RIGHT

$142.86 $107.15
24 48131-33010 48131-33010 / Coil Spring

Spring, LEFT

$142.86 $107.15
25 48157-07010 48157-07010 / Upper Insulator

Upper Insulator, RIGHT

$18.70 $14.03
25 48157-07010 48157-07010 / Upper Insulator

Upper Insulator, LEFT

$18.70 $14.03
26 48158-33020 48158-33020 / Lower Insulator

Lower Insulator, RIGHT

$22.99 $17.24
26 48158-33020 48158-33020 / Lower Insulator

Lower Insulator, LEFT

$22.99 $17.24
27 48331-06011 48331-06011 / Strut Bumper

Bumper, RIGHT

$14.14 $10.61
27 48331-06011 48331-06011 / Strut Bumper

Bumper, LEFT

$14.14 $10.61
28 48609-07010 48609-07010 / Strut Mount

Strut Mount, RIGHT

$122.20 $91.65
28 48609-07010 48609-07010 / Strut Mount

Strut Mount, LEFT

$122.20 $91.65
29 48471-41010 48471-41010 / Upper Seat

Spring Seat, RIGHT

$42.87 $32.15
29 48471-41010 48471-41010 / Upper Seat

Spring Seat, LEFT

$42.87 $32.15
30 90903-63014 90903-63014 / Bearing

Spring Seat Bearing, LEFT

$39.82 $29.87
30 90903-63014 90903-63014 / Bearing

Spring Seat Bearing, RIGHT

$39.82 $29.87
31 48681-07010 48681-07010 / Suspension Support

Spring Seat Support

$8.85 $6.64
32 90179-10095 90179-10095 / Strut Mount Nut

Spring Seat Support

NUT, MOUNT

$1.72 $1.29
33 90080-17217 90080-17217 / Top Nut

Spring Seat Support

NUT, STRUT

$3.22 $2.42

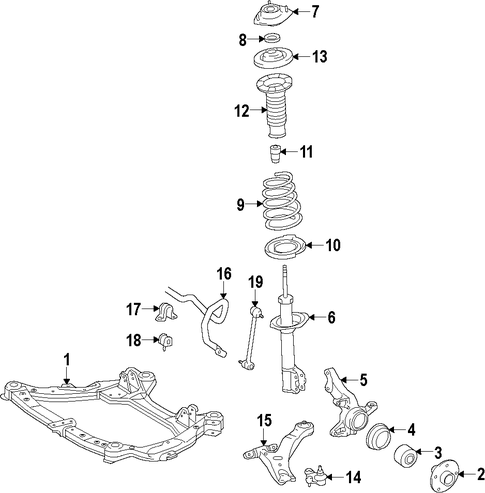

FRONT SUSPENSION/SUSPENSION COMPONENTS for 1996 Toyota Avalon #2
No. Part # Part # / Description List Price Price
1 51100-33030 51100-33030 / Engine Cradle

Cross-member

AVALON

$2,016.00 $1,512.00
3 90080-36133 90080-36133 / Front Wheel Bearing

AVALON

$31.43 $23.57
5 43212-33011 43212-33011 / Knuckle

AVALON; LEFT

$315.28 $236.46
5 43211-33011 43211-33011 / Knuckle

AVALON; RIGHT

$315.28 $236.46
6 48510-09045 48510-09045 / Strut

AVALON; RIGHT

$198.28 $148.71
6 48520-09035 48520-09035 / Strut

AVALON; LEFT

$198.28 $148.71
7 48609-07010 48609-07010 / Strut Mount

AVALON

$122.20 $91.65
8 90903-63014 90903-63014 / Bearing

Strut Bearing

AVALON

$39.82 $29.87
9 48131-33010 48131-33010 / Coil Spring

AVALON

$142.86 $107.15
10 48158-33020 48158-33020 / Lower Insulator

Lower Spring Insulator

AVALON

$22.99 $17.24
11 48331-06011 48331-06011 / Strut Bumper

Bumper

AVALON

$14.14 $10.61
12 48157-07010 48157-07010 / Upper Insulator

Dust Shield

AVALON

$18.70 $14.03
13 48471-41010 48471-41010 / Upper Seat

Spring Seat

AVALON

$42.87 $32.15
14 43330-39435 43330-39435 / Ball Joint

Lower Ball Joint

AVALON

$74.29 $55.72
15 48068-33020 48068-33020 / Lower Control Arm

AVALON; RIGHT

$378.23 $283.67
15 48069-33020 48069-33020 / Lower Control Arm

AVALON; LEFT

$378.23 $283.67
16 48811-33050 48811-33050 / Stabilizer Bar

AVALON

$144.44 $108.33
17 48824-07010 48824-07010 / Stabilizer Bar Bracket

Bracket

AVALON

$16.66 $12.50
18 48815-07010 48815-07010 / Stabilizer Bar Bushing

Bushings

AVALON

$6.72 $5.04
19 48820-33010 48820-33010 / Stabilizer Link

Link

AVALON

$101.43 $76.07
No. Part # Part # / Description List Price Price
N/A 48655-07010 48655-07010 / Lower Control Arm Bushing

Lower Control Arm Bushing, RIGHT

$47.87 $35.90
No. Part # Part # / Description List Price Price
N/A 48655-07010 48655-07010 / Lower Control Arm Bushing

Lower Control Arm Bushing, LEFT

$47.87 $35.90
