HVAC/EVAPORATOR COMPONENTS for 2015 Toyota Land Cruiser

Select EVAPORATOR COMPONENTS Part

2015 Toyota Land Cruiser

Change vehicle

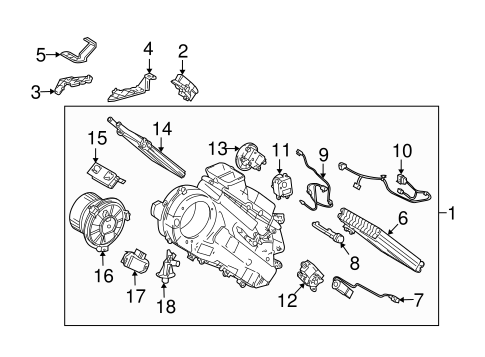

No. Part # Part # / Description List Price Price
1 87030-60030 87030-60030 / Evaporator Assembly

REAR

$2,332.14 $1,749.11
2 88578-60410 88578-60410 / Packing

REAR

$22.99 $17.24
3 87114-60040 87114-60040 / Cover

REAR, #1

$30.57 $22.93
4 87114-60030 87114-60030 / Cover

REAR, #2

$26.15 $19.61
5 87452-60020 87452-60020 / Bracket

REAR

$14.85 $11.14
6 88501-28360 88501-28360 / Evaporator Core

LAND CRUISER

$293.16 $219.87
7 88515-60220 88515-60220 / Expansion Valve

LAND CRUISER

$158.25 $118.69
8 88891-20240 88891-20240 / Expansion Valve Bracket

REAR

$1.26 $0.95
9 82212-60120 82212-60120 / Harness

REAR

$128.97 $96.73
10 88605-6A160 88605-6A160 / Wire Harness

REAR

$42.83 $32.12
11 87106-60210 87106-60210 / Servo

REAR, #1

$167.85 $125.89
12 87106-28170 87106-28170 / Servo

REAR, #2

$167.85 $125.89
13 87106-28180 87106-28180 / Servo

REAR, #3

$167.85 $125.89
14 87107-28300 87107-28300 / Heater Core

LAND CRUISER

$266.95 $200.21
15 87124-28540 87124-28540 / Heater Core Clamp

REAR

$3.19 $2.39
16 87103-28111 87103-28111 / Blower Assembly

REAR

$218.50 $163.88
16 87103-28111 87103-28111 / Blower Motor

LAND CRUISER

$218.50 $163.88
17 87165-28010 87165-28010 / Resistor

REAR

$203.57 $152.68
17 87165-28010 87165-28010 / Control Module

LAND CRUISER

$203.57 $152.68
18 88539-60280 88539-60280 / Drain Tube

REAR

$72.93 $54.70
No. Part # Part # / Description List Price Price
1 87050-60471 87050-60471 / Evaporator Assembly

FRONT, W/COLD AREA SPEC, W/COOLER BOX

$2,614.30 $1,960.73
1 87050-60491 87050-60491 / Evaporator Assembly

FRONT, W/O COLD AREA SPEC, W/COOLER BOX

$3,017.87 $2,263.40
1 87050-60501 87050-60501 / Evaporator Assembly

FRONT, W/O COLD AREA SPEC, W/O COOLER BOX

$1,942.85 $1,457.14
1 87050-60481 87050-60481 / Evaporator Assembly

FRONT, W/COLD AREA SPEC, W/O COOLER BOX

$1,539.28 $1,154.46
2 88891-60090 88891-60090 / Cover

FRONT

$24.94 $18.71
3 88501-60362 88501-60362 / Evaporator Core

LAND CRUISER

$308.68 $231.51
4 88515-50190 88515-50190 / Expansion Valve

LAND CRUISER

$92.40 $69.30
5 88578-60430 88578-60430 / Packing

FRONT

$21.32 $15.99
6 88620-60020 88620-60020 / Thermistor

FRONT

$46.43 $34.82
6 88620-60020 88620-60020 / Thermistor Probe

LAND CRUISER

$46.43 $34.82
6 88620-60020 88620-60020 / In-Car Sensor

LAND CRUISER; FRONT

$46.43 $34.82
7 88710-60A00 88710-60A00 / Tube Assembly

FRONT, W/O COOLER BOX

$105.95 $79.46
7 88710-60A10 88710-60A10 / Tube Assembly

FRONT, W/COOLER BOX

$709.49 $532.12
8 87107-60411 87107-60411 / Heater Core

LAND CRUISER; FROM 1/13

$392.31 $294.23
9 87710-50020 87710-50020 / Heater

FRONT

$450.32 $337.74
10 88650-60J32 88650-60J32 / Amplifier

FRONT, W/O COLD AREA SPEC

$640.96 $480.72
10 88650-60J42 88650-60J42 / Amplifier

FRONT, W/COLD AREA SPEC

$640.96 $480.72
