REAR SUSPENSION/REAR SUSPENSION for 2015 Toyota Camry

Select REAR SUSPENSION Part

2015 Toyota Camry

Change vehicle

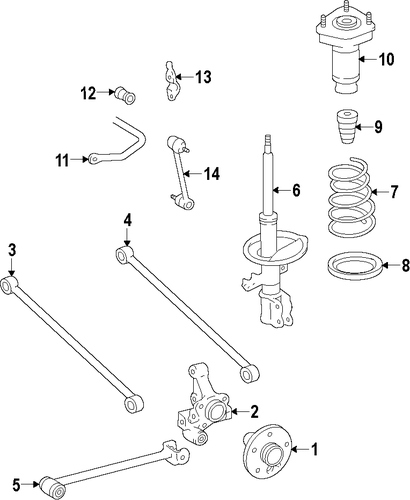

REAR SUSPENSION/REAR SUSPENSION for 2015 Toyota Camry #1
No. Part # Part # / Description List Price Price
N/A 51206-06091 51206-06091 / Cross-member

CAMRY HYBRID

$1,032.38 $774.29
1 42460-06070 42460-06070 / Hub & Bearing Assembly

CAMRY HYBRID; LEFT

$403.57 $302.68
1 42450-06110 42450-06110 / Hub & Bearing Assembly

CAMRY HYBRID; RIGHT

$403.57 $302.68
2 42304-06140 42304-06140 / Knuckle

CAMRY HYBRID; RIGHT

$360.71 $270.53
2 42305-06130 42305-06130 / Knuckle

CAMRY HYBRID; LEFT

$360.71 $270.53
3 48710-06140 48710-06140 / Front Arm

CAMRY HYBRID; LE, XLE

$135.70 $101.78
4 48730-06040 48730-06040 / Rear Arm

CAMRY HYBRID; RIGHT

$157.14 $117.86
4 48740-06040 48740-06040 / Rear Arm

CAMRY HYBRID; LEFT

$157.14 $117.86
5 487A0-06011 487A0-06011 / Trailing Arm

CAMRY HYBRID; LEFT

$157.14 $117.86
5 48780-06091 48780-06091 / Trailing Arm

CAMRY HYBRID; RIGHT

$157.14 $117.86
6 48530-09Z10 48530-09Z10 / Strut

CAMRY HYBRID; RIGHT

$170.42 $127.82
6 48540-09C20 48540-09C20 / Strut

CAMRY HYBRID; LEFT

$170.42 $127.82
7 48231-06800 48231-06800 / Coil Spring

CAMRY HYBRID

$68.61 $51.46
8 48258-06080 48258-06080 / Lower Spring Insulator

CAMRY HYBRID; RIGHT

$22.32 $16.74
8 48258-06090 48258-06090 / Lower Spring Insulator

CAMRY HYBRID; LEFT

$24.71 $18.53
9 48341-06050 48341-06050 / Bumper

CAMRY HYBRID

$12.38 $9.29
10 48750-06130 48750-06130 / Strut Mount

CAMRY HYBRID

$115.50 $86.63
11 48812-06200 48812-06200 / Stabilizer Bar

CAMRY HYBRID; LE, XLE

$71.69 $53.77
12 48818-06310 48818-06310 / Bushings

CAMRY HYBRID; LE, XLE

$11.41 $8.56
13 48832-06050 48832-06050 / Mounting Bracket

CAMRY HYBRID

$10.09 $7.57
14 48830-06030 48830-06030 / Link

CAMRY HYBRID

$96.43 $72.32

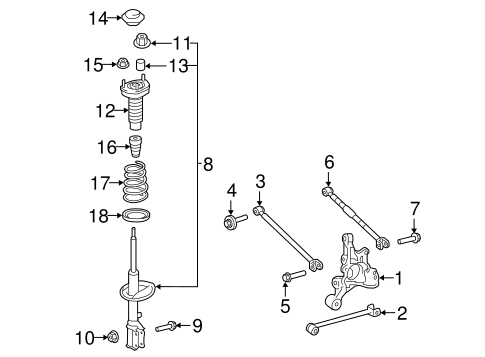

No. Part # Part # / Description List Price Price
1 42305-06130 42305-06130 / Knuckle, LEFT

$360.71 $270.53
1 42304-06140 42304-06140 / Knuckle, RIGHT

$360.71 $270.53
2 48780-06091 48780-06091 / Strut Rod, RIGHT

$157.14 $117.86
2 487A0-06011 487A0-06011 / Strut Rod, LEFT

$157.14 $117.86
3 48710-06140 48710-06140 / Ft Lateral Arm, RIGHT

LE, XLE

$135.70 $101.78
3 48710-06140 48710-06140 / Ft Lateral Arm, LEFT

LE, XLE

$135.70 $101.78
4 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt, LEFT

INNER

$27.87 $20.90
4 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt, RIGHT

INNER

$27.87 $20.90
5 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt, LEFT

OUTER

$10.20 $7.65
5 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt, RIGHT

OUTER

$10.20 $7.65
6 48740-06040 48740-06040 / Rear Lateral Arm, LEFT

$157.14 $117.86
6 48730-06040 48730-06040 / Rear Lateral Arm, RIGHT

$157.14 $117.86
7 90080-11672 90080-11672 / Rear Lateral Arm Mount Bolt, RIGHT

$10.20 $7.65
7 90080-11672 90080-11672 / Rear Lateral Arm Mount Bolt, LEFT

$10.20 $7.65
8 48540-09C20 48540-09C20 / Strut, LEFT

$170.42 $127.82
8 48530-09Z10 48530-09Z10 / Strut, RIGHT

$170.42 $127.82
9 90080-10335 90080-10335 / Strut Bolt, RIGHT

$12.24 $9.18
9 90080-10335 90080-10335 / Strut Bolt, LEFT

$12.24 $9.18
10 90178-A0027 90178-A0027 / Strut Nut, LEFT

$2.21 $1.66
10 90178-A0027 90178-A0027 / Strut Nut, RIGHT

$2.21 $1.66
11 90080-17217 90080-17217 / Top Nut, LEFT

$3.22 $2.42
11 90080-17217 90080-17217 / Top Nut, RIGHT

$3.22 $2.42
12 48750-06130 48750-06130 / Strut Mount, LEFT

$115.50 $86.63
12 48750-06130 48750-06130 / Strut Mount, RIGHT

$115.50 $86.63
13 90080-38148 90080-38148 / Strut Mount Collar, LEFT

$8.13 $6.10
13 90080-38148 90080-38148 / Strut Mount Collar, RIGHT

$8.13 $6.10
14 48753-06011 48753-06011 / Strut Mount Cover, LEFT

$4.37 $3.28
14 48753-06011 48753-06011 / Strut Mount Cover, RIGHT

$4.37 $3.28
15 90178-A0002 90178-A0002 / Strut Mount Nut, LEFT

$1.32 $0.99
15 90178-A0002 90178-A0002 / Strut Mount Nut, RIGHT

$1.32 $0.99
16 48341-06050 48341-06050 / Bumper, RIGHT

$12.38 $9.29
16 48341-06050 48341-06050 / Bumper, LEFT

$12.38 $9.29
17 48231-06800 48231-06800 / Spring, LEFT

$68.61 $51.46
17 48231-06800 48231-06800 / Spring, RIGHT

$68.61 $51.46
18 48258-06090 48258-06090 / Lower Insulator, LEFT

$24.71 $18.53
18 48258-06080 48258-06080 / Lower Insulator, RIGHT

$22.32 $16.74
