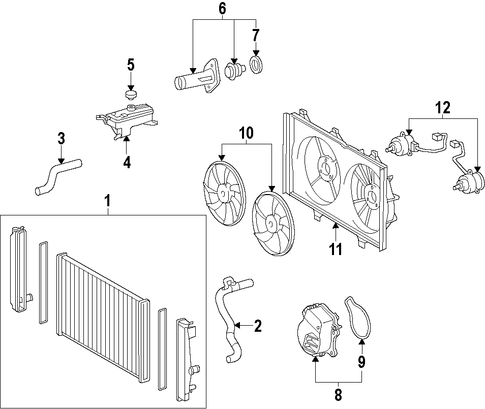

COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota Prius V

Select RADIATOR & COMPONENTS Part

2013 Toyota Prius V

Change vehicle

No. Part # Part # / Description List Price Price
1 16400-37260 16400-37260 / Radiator Assembly

$307.36 $230.52
2 16523-0T020 16523-0T020 / Radiator Assembly Upper Insulator, LEFT

$6.75 $5.06
2 16523-0T020 16523-0T020 / Radiator Assembly Upper Insulator, RIGHT

$6.75 $5.06
3 16533-28051 16533-28051 / Radiator Assembly Upper Support, RIGHT

$32.93 $24.70
3 16534-37010 16534-37010 / Radiator Assembly Upper Support, LEFT

$10.69 $8.02
4 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator, RIGHT

$9.25 $6.94
4 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator, LEFT

$9.25 $6.94
5 16417-21280 16417-21280 / Radiator Assembly Drain Plug

$5.29 $3.97
6 16492-21050 16492-21050 / Radiator Assembly O-Ring

$3.00 $2.25
7 16480-28080 16480-28080 / Reservoir Tank

$239.28 $179.46
8 90480-18010 90480-18010 / Reservoir Tank Grommet

$3.28 $2.46
9 90119-A0245 90119-A0245 / Reservoir Tank Screw

$0.89 $0.67
10 16475-37010 16475-37010 / Reservoir Cap

$25.51 $19.13
11 16571-37140 16571-37140 / Upper Hose

$19.53 $14.65
12 16577-37020 16577-37020 / Upper Pipe

$76.43 $57.32
13 16573-37050 16573-37050 / Hose

$6.00 $4.50
14 16572-37120 16572-37120 / Lower Hose

$19.53 $14.65
15 16031-37010 16031-37010 / Thermostat Hsng

$46.40 $34.80
16 90105-A0079 90105-A0079 / Thermostat Hsng Bolt

$0.92 $0.69
17 90126-06026 90126-06026 / Thermostat Hsng Stud

$0.83 $0.62
18 90178-A0023 90178-A0023 / Thermostat Hsng Nut

$0.92 $0.69
19 16326-37020 16326-37020 / Thermostat Hsng Gasket

$4.86 $3.65
20 16261-37081 16261-37081 / Overflow Hose

$6.74 $5.06
21 16264-37080 16264-37080 / By-Pass Hose

#1

$15.12 $11.34
22 16267-37030 16267-37030 / By-Pass Hose

#2

$19.43 $14.57
23 16281-37030 16281-37030 / By-Pass Hose

#3

$19.43 $14.57
COOLING SYSTEM/RADIATOR & COMPONENTS for 2013 Toyota Prius V #2
No. Part # Part # / Description List Price Price
1 16400-37260 16400-37260 / Radiator

PRIUS V

$307.36 $230.52
4 16480-28080 16480-28080 / Expansion Tank

PRIUS V

$239.28 $179.46
5 16475-37010 16475-37010 / Cap

EXPANSION TANK CAP; PRIUS V

$25.51 $19.13
6 16031-37010 16031-37010 / Water Inlet

PRIUS V

$46.40 $34.80
7 16326-37020 16326-37020 / Thermostat Gasket

PRIUS V

$4.86 $3.65
8 161A0-29015 161A0-29015 / Water Pump

PRIUS V

$582.98 $437.24
9 16271-37020 16271-37020 / Gasket

PRIUS V

$7.07 $5.30
10 16361-37010 16361-37010 / Fan Blade

PRIUS V; LEFT

$80.74 $60.56
10 16361-37020 16361-37020 / Fan Blade

PRIUS V; RIGHT

$103.75 $77.81
11 16711-37040 16711-37040 / Fan Shroud

PRIUS V

$105.88 $79.41
12 16363-37020 16363-37020 / Fan Motor

PRIUS V; LEFT

$218.72 $164.04
12 16363-37050 16363-37050 / Fan Motor

PRIUS V; RIGHT

$218.72 $164.04
