REAR SUSPENSION/REAR SUSPENSION for 2012 Toyota Highlander

Select REAR SUSPENSION Part

2012 Toyota Highlander

Change vehicle

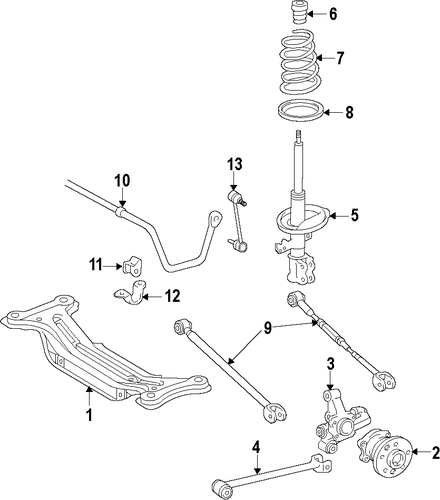

REAR SUSPENSION/REAR SUSPENSION for 2012 Toyota Highlander #1
No. Part # Part # / Description List Price Price
N/A 48760-48051 48760-48051 / Strut Mount

HIGHLANDER; LEFT

$115.50 $86.63
N/A 48750-48071 48750-48071 / Strut Mount

HIGHLANDER; RIGHT

$115.50 $86.63
1 51206-0E020 51206-0E020 / Cross-member

HIGHLANDER; AWD

$1,059.88 $794.91
1 51206-0E014 51206-0E014 / Cross-member

HIGHLANDER; FWD; TO 4/12

$616.22 $462.17
1 51206-0E015 51206-0E015 / Cross-member

HIGHLANDER; FWD; FROM 4/12

$912.35 $684.26
2 42460-0E030 42460-0E030 / Hub & Bearing Assembly

HIGHLANDER; FWD; LEFT

$589.30 $441.98
2 42410-0E050 42410-0E050 / Hub & Bearing Assembly

HIGHLANDER; AWD

$378.58 $283.94
2 42450-0E040 42450-0E040 / Hub & Bearing Assembly

HIGHLANDER; FWD; RIGHT

$589.30 $441.98
3 42304-0E050 42304-0E050 / Knuckle

HIGHLANDER; RIGHT; FWD

$323.21 $242.41
3 42305-0E050 42305-0E050 / Knuckle

HIGHLANDER; LEFT; FWD

$323.21 $242.41
3 42304-0T020 42304-0T020 / Knuckle

HIGHLANDER; RIGHT; AWD

$428.57 $321.43
3 42305-0T020 42305-0T020 / Knuckle

HIGHLANDER; LEFT; AWD

$428.57 $321.43
4 48780-48070 48780-48070 / Trailing Arm

HIGHLANDER; 3.5L; FWD

$135.01 $101.26
4 48780-48081 48780-48081 / Trailing Arm

HIGHLANDER; 3.5L; AWD

$158.92 $119.19
5 48540-A9370 48540-A9370 / Strut

HIGHLANDER; 3.5L; LEFT; FWD; MARK 48540-0E060

$179.39 $134.54
5 48530-A9720 48530-A9720 / Strut

HIGHLANDER; 3.5L; RIGHT; FWD; MARK 48530-0E060

$179.39 $134.54
5 48530-A9750 48530-A9750 / Strut

HIGHLANDER; 3.5L; RIGHT; AWD; MARK 48530-0E080

$168.92 $126.69
5 48540-A9400 48540-A9400 / Strut

HIGHLANDER; 3.5L; LEFT; AWD; MARK 48540-0E080

$168.92 $126.69
6 48341-0E030 48341-0E030 / Stopper

HIGHLANDER

$18.42 $13.82
7 48231-0E121 48231-0E121 / Coil Spring

HIGHLANDER; 3.5L; AWD; W/O LIMITED; W/O SPORT

$101.24 $75.93
7 48231-0E091 48231-0E091 / Coil Spring

HIGHLANDER; 3.5L; FWD; W/O LIMITED; W/O SPORT

$84.53 $63.40
8 48258-0E010 48258-0E010 / Lower Spring Insulator

HIGHLANDER

$14.11 $10.58
9 48710-48070 48710-48070 / Control Arm

HIGHLANDER; FRONT; AWD

$148.20 $111.15
9 48730-48160 48730-48160 / Control Arm

HIGHLANDER; REAR; AWD

$128.58 $96.44
9 48710-48060 48710-48060 / Control Arm

HIGHLANDER; FRONT; FWD

$158.92 $119.19
9 48730-0E080 48730-0E080 / Control Arm

HIGHLANDER; REAR; FWD; RIGHT

$157.14 $117.86
9 48740-0E050 48740-0E050 / Control Arm

HIGHLANDER; REAR; FWD; LEFT

$157.14 $117.86
10 48805-48140 48805-48140 / Stabilizer Bar

HIGHLANDER; AWD

$108.92 $81.69
10 48812-48170 48812-48170 / Stabilizer Bar

HIGHLANDER; FWD

$81.60 $61.20
11 48818-0E010 48818-0E010 / Bushings

HIGHLANDER; AWD

$8.99 $6.74
11 48818-06120 48818-06120 / Bushings

HIGHLANDER; FWD

$18.04 $13.53
12 48832-0E020 48832-0E020 / Mounting Bracket

HIGHLANDER; AWD; LEFT; NO.1

$14.19 $10.64
12 48832-0E040 48832-0E040 / Mounting Bracket

HIGHLANDER; AWD; RIGHT; NO.1

$20.69 $15.52
12 48832-0E030 48832-0E030 / Mounting Bracket

HIGHLANDER; AWD; LEFT; NO.2

$6.90 $5.18
12 48832-0E050 48832-0E050 / Mounting Bracket

HIGHLANDER; AWD; RIGHT; NO.2

$6.41 $4.81
12 48832-AA010 48832-AA010 / Mounting Bracket

HIGHLANDER; FWD

$10.83 $8.12
13 48830-06030 48830-06030 / Link

HIGHLANDER

$96.43 $72.32

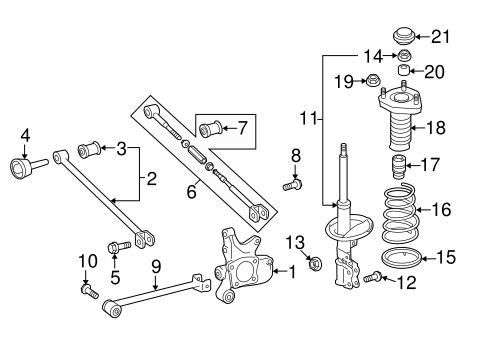

No. Part # Part # / Description List Price Price
1 42304-0E050 42304-0E050 / Knuckle, RIGHT

2WD, US BUILT

$323.21 $242.41
1 42305-0E050 42305-0E050 / Knuckle, LEFT

2WD, US BUILT

$323.21 $242.41
2 48710-48060 48710-48060 / Front Control Arm, RIGHT

2WD, US BUILT

$158.92 $119.19
2 48710-48060 48710-48060 / Front Control Arm, LEFT

2WD, US BUILT

$158.92 $119.19
4 90080-11674 90080-11674 / Front Control Arm Mount Bolt, RIGHT

2WD, US BUILT, INNER

$27.87 $20.90
4 90080-11674 90080-11674 / Front Control Arm Mount Bolt, LEFT

2WD, US BUILT, INNER

$27.87 $20.90
5 90080-11672 90080-11672 / Front Control Arm Mount Bolt, LEFT

2WD, US BUILT, OUTER

$10.20 $7.65
5 90080-11672 90080-11672 / Front Control Arm Mount Bolt, RIGHT

2WD, US BUILT, OUTER

$10.20 $7.65
6 48730-0E080 48730-0E080 / Rear Control Arm, RIGHT

2WD, US BUILT

$157.14 $117.86
6 48740-0E050 48740-0E050 / Rear Control Arm, LEFT

2WD, US BUILT

$157.14 $117.86
8 90080-11672 90080-11672 / Rear Control Arm Mount Bolt, RIGHT

2WD, US BUILT

$10.20 $7.65
9 48780-48070 48780-48070 / Strut Rod, RIGHT

2WD, US BUILT, 3.5 LITER

$135.01 $101.26
9 48780-48070 48780-48070 / Strut Rod, LEFT

2WD, US BUILT, 3.5 LITER

$135.01 $101.26
10 90080-11695 90080-11695 / Strut Rod Mount Bolt, LEFT

2WD, US BUILT

$8.22 $6.17
11 48530-A9720 48530-A9720 / Strut, RIGHT

2WD, US BUILT, 3.5 LITER

$179.39 $134.54
11 48540-A9370 48540-A9370 / Strut, LEFT

2WD, US BUILT, 3.5 LITER

$179.39 $134.54
14 90080-17217 90080-17217 / Top Nut, LEFT

2WD, US BUILT

$3.22 $2.42
15 48258-0E010 48258-0E010 / Insulator, RIGHT

2WD, US BUILT

$14.11 $10.58
16 48231-0E091 48231-0E091 / Spring, LEFT

2WD, US BUILT, 3.5 LITER, W/O LIMITED

$84.53 $63.40
16 48231-0E091 48231-0E091 / Spring, RIGHT

2WD, US BUILT, 3.5 LITER, W/O LIMITED

$84.53 $63.40
17 48341-0E030 48341-0E030 / Bumper, RIGHT

2WD, US BUILT

$18.42 $13.82
17 48341-0E030 48341-0E030 / Bumper, LEFT

2WD, US BUILT

$18.42 $13.82
18 48750-48071 48750-48071 / Strut Mount, RIGHT

2WD, US BUILT

$115.50 $86.63
18 48760-48051 48760-48051 / Strut Mount, LEFT

2WD, US BUILT

$115.50 $86.63
19 90080-17225 90080-17225 / Strut Mount Nut, RIGHT

2WD, US BUILT

$3.22 $2.42
20 90080-38148 90080-38148 / Collar, RIGHT

2WD, US BUILT

$8.13 $6.10
20 90080-38148 90080-38148 / Collar, LEFT

2WD, US BUILT

$8.13 $6.10
21 48753-06011 48753-06011 / Cover, LEFT

2WD, US BUILT

$4.37 $3.28
No. Part # Part # / Description List Price Price
1 42305-0T020 42305-0T020 / Knuckle, LEFT

4WD, US PARTS

$428.57 $321.43
1 42304-0T020 42304-0T020 / Knuckle, RIGHT

4WD, US PARTS

$428.57 $321.43
2 48710-48070 48710-48070 / Front Control Arm, LEFT

4WD, US PARTS

$148.20 $111.15
2 48710-48070 48710-48070 / Front Control Arm, RIGHT

4WD, US PARTS

$148.20 $111.15
4 90119-A0015 90119-A0015 / Front Control Arm Mount Bolt, LEFT

4WD, US PARTS, INNER

$5.86 $4.40
4 90119-A0015 90119-A0015 / Front Control Arm Mount Bolt, RIGHT

4WD, US PARTS, INNER

$5.86 $4.40
6 48730-48160 48730-48160 / Rear Control Arm, LEFT

4WD, US PARTS

$128.58 $96.44
6 48730-48160 48730-48160 / Rear Control Arm, RIGHT

4WD, US PARTS

$128.58 $96.44
8 90080-11672 90080-11672 / Rear Control Arm Mount Bolt, LEFT

4WD, US PARTS, OUTER

$10.20 $7.65
8 48409-48020 48409-48020 / Rear Control Arm Mount Bolt, LEFT

4WD, US PARTS, INNER

$15.46 $11.60
8 48409-48020 48409-48020 / Rear Control Arm Mount Bolt, RIGHT

4WD, US PARTS, INNER

$15.46 $11.60
9 48780-48081 48780-48081 / Strut Rod, LEFT

4WD, US PARTS

$158.92 $119.19
9 48780-48081 48780-48081 / Strut Rod, RIGHT

4WD, US PARTS

$158.92 $119.19
10 90080-11695 90080-11695 / Strut Rod Mount Bolt, RIGHT

4WD, US PARTS

$8.22 $6.17
11 48540-A9400 48540-A9400 / Strut, LEFT

4WD, US PARTS, ALL

$168.92 $126.69
11 48530-A9750 48530-A9750 / Strut, RIGHT

4WD, US PARTS, ALL

$168.92 $126.69
12 90080-10335 90080-10335 / Strut Bolt, LEFT

4WD, US PARTS

$12.24 $9.18
12 90080-10335 90080-10335 / Strut Bolt, RIGHT

4WD, US PARTS

$12.24 $9.18
13 90178-A0027 90178-A0027 / Strut Nut, LEFT

4WD, US PARTS

$2.21 $1.66
13 90178-A0027 90178-A0027 / Strut Nut, RIGHT

4WD, US PARTS

$2.21 $1.66
14 90080-17217 90080-17217 / Top Nut, RIGHT

4WD, US PARTS

$3.22 $2.42
15 48258-0E010 48258-0E010 / Insulator, LEFT

4WD, US PARTS

$14.11 $10.58
16 48231-0E121 48231-0E121 / Spring, RIGHT

4WD, US PARTS, W/O LIMITED

$101.24 $75.93
16 48231-0E121 48231-0E121 / Spring, LEFT

4WD, US PARTS, W/O LIMITED

$101.24 $75.93
17 48341-0E030 48341-0E030 / Bumper

4WD, US PARTS

$18.42 $13.82
19 90080-17225 90080-17225 / Strut Mount Nut, LEFT

4WD, US PARTS

$3.22 $2.42
21 48753-06011 48753-06011 / Cover, RIGHT

4WD, US PARTS

$4.37 $3.28
