BODY/REAR SEAT COMPONENTS for 2009 Scion xB

Select REAR SEAT COMPONENTS Part

2009 Scion xB

Change vehicle

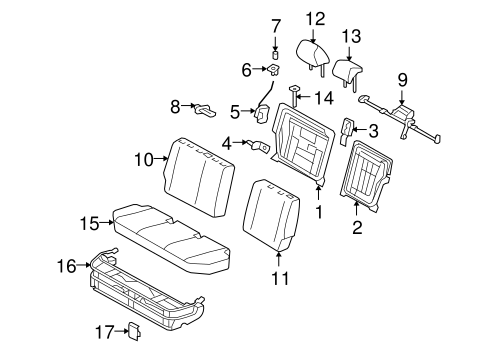

No. Part # Part # / Description List Price Price
1 71017-12890 71017-12890 / Seat Back Frame, RIGHT

$275.00 $206.25
2 71018-12440 71018-12440 / Seat Back Frame, LEFT

$185.73 $139.30
3 72996-12320-B0 72996-12320-B0 / Seat Back Frame Rear Cover

$11.49 $8.62
4 71303-12190 71303-12190 / Hinge, RIGHT

$21.55 $16.16
4 71303-12190 71303-12190 / Hinge, LEFT

$21.55 $16.16
5 72640-12310 72640-12310 / Lock Assembly, LEFT

$59.65 $44.74
5 72630-12341 72630-12341 / Lock Assembly, RIGHT

$58.93 $44.20
6 72646-12090-B0 72646-12090-B0 / Lock Assembly Grommet, LEFT

$5.83 $4.37
6 72646-12090-B0 72646-12090-B0 / Lock Assembly Grommet, RIGHT

$5.83 $4.37
7 72661-35010-B1 72661-35010-B1 / Lock Button, RIGHT

$7.24 $5.43
7 72661-35010-B1 72661-35010-B1 / Lock Button, LEFT

$7.24 $5.43
8 72601-12250 72601-12250 / Striker, RIGHT

$41.78 $31.34
8 72602-12080 72602-12080 / Striker, LEFT

$36.78 $27.59
9 73705-12100 73705-12100 / Seat Crossmember

$187.13 $140.35
10 71603-12040-B2 71603-12040-B2 / Seat Back Pad, RIGHT

$502.70 $377.03
11 71604-12040-B1 71604-12040-B1 / Seat Back Pad, LEFT

$381.97 $286.48
12 71940-12A81-B0 71940-12A81-B0 / Headrest, Outer, LEFT

$435.73 $326.80
12 71940-12A81-B0 71940-12A81-B0 / Headrest, Outer, RIGHT

$435.73 $326.80
13 71960-12541-B0 71960-12541-B0 / Headrest, Center

$349.64 $262.23
14 71931-47010-B2 71931-47010-B2 / Headrest Guide

NON LOCKING

$9.22 $6.92
14 71930-44020-B0 71930-44020-B0 / Headrest Guide

LOCKING

$15.08 $11.31
15 71601-12061-B0 71601-12061-B0 / Seat Cushion

$704.77 $528.58
16 71407-12170-B0 71407-12170-B0 / Cushion Frame

$400.01 $300.01
17 72999-12020-B0 72999-12020-B0 / Cushion Frame Hole Cover

OUTER

$8.07 $6.05
17 72927-12010-B0 72927-12010-B0 / Cushion Frame Hole Cover

INNER

$5.83 $4.37
