STEERING/STEERING GEAR & LINKAGE for 2006 Toyota Sequoia

Select STEERING GEAR & LINKAGE Part

2006 Toyota Sequoia

Change vehicle

STEERING/STEERING GEAR & LINKAGE for 2006 Toyota Sequoia #1
No. Part # Part # / Description List Price Price
N/A 44311-0C020 44311-0C020 / Power Steering Pulley

SEQUOIA

$163.23 $122.42
N/A 04445-0C010 04445-0C010 / Seal Kit

SEQUOIA

$178.23 $133.67
N/A 44360-0C030 44360-0C030 / Reservoir

SEQUOIA

$237.50 $178.13
N/A 44420-0C011 44420-0C011 / Power Steering Oil Cooler

SEQUOIA

$104.64 $78.48
N/A 44410-0C072 44410-0C072 / Power Steering Pressure Hose

SEQUOIA

$660.73 $495.55
N/A 44310-0C030 44310-0C030 / Power Steering Pump

SEQUOIA

$397.11 $297.83
N/A 04446-06040 04446-06040 / Seal Kit

SEQUOIA

$40.37 $30.28
1 45047-09090 45047-09090 / Outer Tie Rod

SEQUOIA; LEFT

$63.54 $47.66
1 45046-09210 45046-09210 / Outer Tie Rod

SEQUOIA; RIGHT

$63.54 $47.66
2 45536-0C010 45536-0C010 / Tie Rod Boot

SEQUOIA; RIGHT

$24.88 $18.66
2 45535-0C010 45535-0C010 / Tie Rod Boot

SEQUOIA; LEFT

$24.88 $18.66
3 45503-09240 45503-09240 / Inner Tie Rod

SEQUOIA

$211.79 $158.84
4 44240-0C021 44240-0C021 / Steering Gear Housing

SEQUOIA

$525.00 $393.75
5 90365-19001 90365-19001 / Pinion Bearings

TUNDRA, SEQUOIA; UPPER

$36.52 $27.39
5 90364-25014 90364-25014 / Pinion Bearings

TUNDRA, SEQUOIA; CENTER

$19.02 $14.27
5 90363-15020 90363-15020 / Pinion Bearings

TUNDRA, SEQUOIA; LOWER

$25.86 $19.40
6 90080-31016 90080-31016 / Pinion Shaft Seal

SEQUOIA

$6.52 $4.89
7 44201-0C021 44201-0C021 / Pinion Shaft

SEQUOIA

$814.27 $610.70
9 44250-0C041 44250-0C041 / Steering Gear

SEQUOIA

$736.04 $552.03

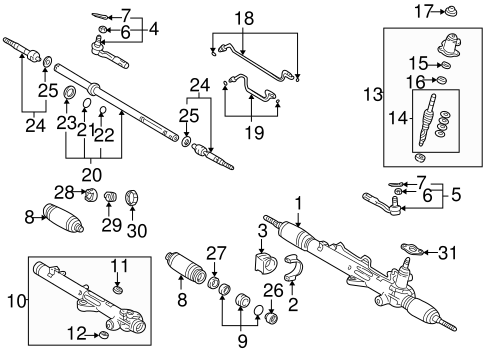

No. Part # Part # / Description List Price Price
1 44250-0C041 44250-0C041 / Gear Assembly

$736.04 $552.03
2 45515-35050 45515-35050 / Gear Assembly Mount Bracket, LEFT

$49.28 $36.96
2 45515-35050 45515-35050 / Gear Assembly Mount Bracket, RIGHT

$49.28 $36.96
3 45517-34020 45517-34020 / Gear Assembly Insulator, RIGHT

$33.04 $24.78
3 45517-34020 45517-34020 / Gear Assembly Insulator, LEFT

$33.04 $24.78
4 45046-09210 45046-09210 / Outer Tie Rod, RIGHT

$63.54 $47.66
5 45047-09090 45047-09090 / Outer Tie Rod, LEFT

$63.54 $47.66
6 90171-14042 90171-14042 / Outer Tie Rod Nut, LEFT

$3.33 $2.50
6 90171-14042 90171-14042 / Outer Tie Rod Nut, RIGHT

$3.33 $2.50
7 95381-03225 95381-03225 / Outer Tie Rod Cotter Pin, LEFT

$1.03 $0.77
7 95381-03225 95381-03225 / Outer Tie Rod Cotter Pin, RIGHT

$1.03 $0.77
8 45535-0C010 45535-0C010 / Boot, LEFT

$24.88 $18.66
8 45536-0C010 45536-0C010 / Boot, RIGHT

$24.88 $18.66
9 44205-0C010 44205-0C010 / Bushing Kit

$37.15 $27.86
10 44240-0C021 44240-0C021 / Housing

$525.00 $393.75
11 90364-25014 90364-25014 / Housing Bearing

UPPER

$19.02 $14.27
12 90363-15020 90363-15020 / Housing Bearing

LOWER

$25.86 $19.40
13 44210-0C021 44210-0C021 / Control Valve

$625.27 $468.95
14 44201-0C021 44201-0C021 / Pinion

$814.27 $610.70
15 90080-31016 90080-31016 / Pinion Seal

$6.52 $4.89
16 90365-19001 90365-19001 / Pinion Bearing

$36.52 $27.39
17 45222-0C010 45222-0C010 / Dust Cover

$6.21 $4.66
18 44418-0C010 44418-0C010 / Pressure Line

RIGHT TURN

$35.25 $26.44
19 44419-0C010 44419-0C010 / Pressure Line

LEFT TURN

$35.25 $26.44
20 44204-0C011 44204-0C011 / Rack

$525.00 $393.75
21 90080-30044 90080-30044 / Rack O-Ring

#1

$3.76 $2.82
22 90080-52103 90080-52103 / Rack O-Ring

#2

$1.12 $0.84
23 90080-56069 90080-56069 / Rack O-Ring

#3

$1.81 $1.36
24 45503-09240 45503-09240 / Inner Tie Rod, RIGHT

$211.79 $158.84
24 45503-09240 45503-09240 / Inner Tie Rod, LEFT

$211.79 $158.84
25 90080-21012 90080-21012 / Inner Tie Rod Washer, RIGHT

$1.21 $0.91
25 90080-21012 90080-21012 / Inner Tie Rod Washer, LEFT

$1.21 $0.91
26 90080-31052 90080-31052 / Oil Seal

$19.19 $14.39
27 44275-0C010 44275-0C010 / Stopper

$32.32 $24.24
28 45504-34030 45504-34030 / Guide

$71.43 $53.57
29 90080-50295 90080-50295 / Spring

$2.70 $2.03
30 45524-34020 45524-34020 / Spring Cap

$15.72 $11.79
31 44218-12020 44218-12020 / Gasket

$3.12 $2.34
