HVAC/AUXILIARY HEATER & AC for 2006 Toyota Land Cruiser

Select AUXILIARY HEATER & AC Part

2006 Toyota Land Cruiser

Change vehicle

No. Part # Part # / Description List Price Price
1 84119-60110 84119-60110 / Rheostat

$159.29 $119.47
1 84119-60110 84119-60110 / Instrument Light Rheostat

LAND CRUISER

$159.29 $119.47
2 84870-60030 84870-60030 / Mirror Switch

LAND CRUISER

$168.23 $126.17
4 84727-53020 84727-53020 / Switch

SHIFT LOCK CONTROL

$57.15 $42.86
5 84835-60040 84835-60040 / Switch, RIGHT

QUARTER WINDOW

$96.08 $72.06
5 84835-60030 84835-60030 / Switch, LEFT

QUARTER WINDOW

$96.08 $72.06
5 84835-60040 84835-60040 / Window Switch

LAND CRUISER; RIGHT

$96.08 $72.06
5 84835-60030 84835-60030 / Window Switch

LAND CRUISER; LEFT

$96.08 $72.06
7 55902-60110 55902-60110 / Heater Control

$328.58 $246.44
8 88610-60131-B1 88610-60131-B1 / AC Switch

STONE

$477.45 $358.09
8 88610-60131-A1 88610-60131-A1 / AC Switch

LAND CRUISER

$477.45 $358.09
9 85500-12240 85500-12240 / Lighter

$38.84 $29.13
10 85515-60010 85515-60010 / Lighter Stay

$10.69 $8.02
11 85520-89101 85520-89101 / Element

$24.53 $18.40
12 85513-02010 85513-02010 / Element Bezel

$8.82 $6.62
14 84450-12200 84450-12200 / Ignition Switch

LAND CRUISER

$102.49 $76.87
15 69057-60551 69057-60551 / Cylinder & Keys

$138.37 $103.78
15 69057-60551 69057-60551 / Ignition Lock Cylinder

LAND CRUISER

$138.37 $103.78
16 84052-33040 84052-33040 / Key Alarm Switch

$27.64 $20.73

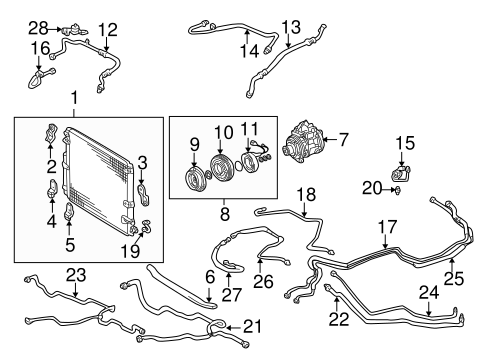

No. Part # Part # / Description List Price Price
1 88460-60903 88460-60903 / Condenser Assembly

W/REAR AC

$423.02 $317.27
1 88460-60903 88460-60903 / Condenser

LAND CRUISER; W/REAR AC

$423.02 $317.27
2 88688-6A420 88688-6A420 / Mount Bracket, RIGHT

W/REAR AC, UPPER

- -
3 88688-60851 88688-60851 / Mount Bracket, LEFT

W/REAR AC, UPPER

- -
4 88688-60790 88688-60790 / Mount Bracket, RIGHT

W/REAR AC, LOWER

- -
5 88688-6A190 88688-6A190 / Mount Bracket, LEFT

W/REAR AC, LOWER

- -
6 88578-60100 88578-60100 / Mount Bracket Lower Seal

W/REAR AC

$30.00 $22.50
7 88320-60681-84 88320-60681-84 / Compressor

W/REAR AC

$566.79 $425.09
8 88410-60410 88410-60410 / Clutch

W/REAR AC

$221.76 $166.32
9 88403-06050 88403-06050 / Hub

W/REAR AC

$98.87 $74.15
12 88711-60471 88711-60471 / Discharge Hose

W/REAR AC

$158.06 $118.55
13 88704-60230 88704-60230 / Suction Hose

LAND CRUISER

$121.36 $91.02
14 88717-6A141 88717-6A141 / Suction Pipe

W/REAR AC

$132.86 $99.65
16 88715-60112 88715-60112 / AC Line

W/REAR AC, TO CONDENSER

$48.36 $36.27
17 88726-60531 88726-60531 / AC Line

W/REAR AC, AT EVAPORATOR, FRONT

$106.71 $80.03
18 88726-60740 88726-60740 / AC Line

W/REAR AC, AT EVAPORATOR, REAR

$68.27 $51.20
19 88726-60462 88726-60462 / AC Line

W/REAR AC, AT CONDENSER

$65.85 $49.39
20 88645-60030 88645-60030 / Pressure Switch

W/REAR AC

$131.78 $98.84
21 88717-6A200 88717-6A200 / Suction Pipe

W/REAR AC, TO REAR AC UNIT, #1

$326.25 $244.69
22 88717-6A220 88717-6A220 / Suction Pipe

W/REAR AC, TO REAR AC UNIT, #2

$298.73 $224.05
23 88726-60630 88726-60630 / Discharge Pipe

W/REAR AC, TO REAR AC UNIT, #1

$112.06 $84.05
24 88726-60650 88726-60650 / Discharge Pipe

W/REAR AC, TO REAR AC UNIT, #2

$82.74 $62.06
25 88726-60521 88726-60521 / AC Tube

W/REAR AC, REAR CONDENSER, #1

$110.05 $82.54
26 88726-60580 88726-60580 / AC Tube

W/REAR AC, REAR CONDENSER, #2

$58.38 $43.79
27 88726-60620 88726-60620 / AC Tube

W/REAR AC, REAR CONDENSER, #3

$48.36 $36.27
28 88718-60880 88718-60880 / Mount

W/REAR AC, DISCHARGE HOSE

$40.00 $30.00
