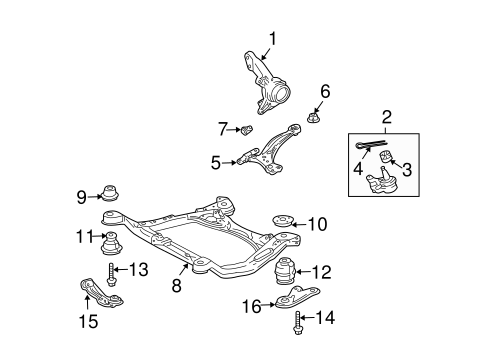

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2006 Toyota Highlander

Select SUSPENSION COMPONENTS Part

2006 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 43211-58020 43211-58020 / Knuckle, RIGHT

$348.24 $261.18
1 43212-58020 43212-58020 / Knuckle, LEFT

$348.24 $261.18
2 43330-29615 43330-29615 / Lower Ball Joint, RIGHT

$82.12 $61.59
2 43340-29215 43340-29215 / Lower Ball Joint, LEFT

$82.12 $61.59
3 90080-17214 90080-17214 / Lower Ball Joint Nut, LEFT

$3.22 $2.42
3 90080-17214 90080-17214 / Lower Ball Joint Nut, RIGHT

$3.22 $2.42
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin, LEFT

$1.03 $0.77
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin, RIGHT

$1.03 $0.77
5 48068-0E010 48068-0E010 / Control Arm, RIGHT

$231.63 $173.72
5 48069-0E010 48069-0E010 / Control Arm, LEFT

$231.63 $173.72
6 90080-17223 90080-17223 / Control Arm Nut, RIGHT

$1.64 $1.23
6 90080-17223 90080-17223 / Control Arm Nut, LEFT

$1.64 $1.23
7 48657-06010 48657-06010 / Stopper, LEFT

$10.11 $7.58
7 48657-06010 48657-06010 / Stopper, RIGHT

$10.11 $7.58
8 51100-48061 51100-48061 / Engine Cradle

$1,613.49 $1,210.12
9 52213-0E010 52213-0E010 / Engine Cradle Stopper

FRONT

$41.83 $31.37
10 52216-06030 52216-06030 / Engine Cradle Stopper

REAR

$29.97 $22.48
11 52211-0E010 52211-0E010 / Engine Cradle Cushion

FRONT

$83.29 $62.47
12 52217-06010 52217-06010 / Engine Cradle Cushion, LEFT

REAR

$91.80 $68.85
12 52215-06030 52215-06030 / Engine Cradle Cushion, RIGHT

REAR

$99.30 $74.48
13 90080-11723 90080-11723 / Engine Cradle Front Bolt

$18.27 $13.70
14 90080-11722 90080-11722 / Engine Cradle Rear Bolt, RIGHT

$16.32 $12.24
14 90080-11722 90080-11722 / Engine Cradle Rear Bolt, LEFT

$16.32 $12.24
15 51036-0E011 51036-0E011 / Engine Cradle Front Bracket, LEFT

$111.19 $83.39
15 51035-0E011 51035-0E011 / Engine Cradle Front Bracket, RIGHT

$111.19 $83.39
16 51024-48030 51024-48030 / Engine Cradle Rear Bracket, LEFT

$105.22 $78.92
16 51023-48030 51023-48030 / Engine Cradle Rear Bracket, RIGHT

$95.25 $71.44

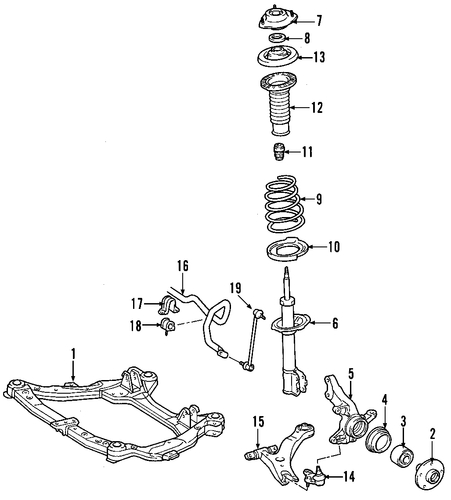

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2006 Toyota Highlander #2
No. Part # Part # / Description List Price Price
1 51100-48061 51100-48061 / Cross-member

HIGHLANDER HYBRID

$1,613.49 $1,210.12
2 43502-AA021 43502-AA021 / Front Hub

HIGHLANDER HYBRID

$154.69 $116.02
3 90080-36193 90080-36193 / Front Hub Bearing

HIGHLANDER HYBRID

$91.28 $68.46
4 43246-28020 43246-28020 / Hub Seals

HIGHLANDER HYBRID

$17.04 $12.78
5 43211-58020 43211-58020 / Knuckle

HIGHLANDER HYBRID; RIGHT

$348.24 $261.18
5 43212-58020 43212-58020 / Knuckle

HIGHLANDER HYBRID; LEFT

$348.24 $261.18
6 48510-49885 48510-49885 / Strut

HIGHLANDER HYBRID; RIGHT

$176.71 $132.53
6 48520-80020 48520-80020 / Strut

HIGHLANDER HYBRID; LEFT

$176.71 $132.53
7 48609-0E010 48609-0E010 / Strut Mount

HIGHLANDER HYBRID

$102.06 $76.55
8 90903-63014 90903-63014 / Strut Bearing

HIGHLANDER HYBRID

$39.82 $29.87
9 48131-48530 48131-48530 / Coil Spring

HIGHLANDER HYBRID

$112.28 $84.21
10 48158-0E010 48158-0E010 / Lower Spring Insulator

HIGHLANDER HYBRID

$28.10 $21.08
11 48331-0E010 48331-0E010 / Stopper

HIGHLANDER HYBRID

$20.89 $15.67
12 48157-48030 48157-48030 / Upper Spring Insulator

HIGHLANDER HYBRID

$28.10 $21.08
13 48471-41012 48471-41012 / Spring Seat

HIGHLANDER HYBRID

$33.19 $24.89
14 43340-09010 43340-09010 / Lower Ball Joint

HIGHLANDER HYBRID; LEFT

$65.53 $49.15
14 43330-29615 43330-29615 / Lower Ball Joint

HIGHLANDER HYBRID; RIGHT

$82.12 $61.59
15 48069-0E010 48069-0E010 / Lower Control Arm

HIGHLANDER HYBRID; LEFT

$231.63 $173.72
15 48068-0E010 48068-0E010 / Lower Control Arm

HIGHLANDER HYBRID; RIGHT

$231.63 $173.72
16 48811-48060 48811-48060 / Stabilizer Bar

HIGHLANDER HYBRID

$126.51 $94.88
17 48824-0E010 48824-0E010 / Mounting Bracket

HIGHLANDER HYBRID

$25.31 $18.98
18 48815-0E010 48815-0E010 / Bushings

HIGHLANDER HYBRID

$13.36 $10.02
19 48820-06040 48820-06040 / Link

HIGHLANDER HYBRID

$81.08 $60.81
No. Part # Part # / Description List Price Price
N/A 51227-48040 51227-48040 / Damper

REAR

$93.58 $70.19
No. Part # Part # / Description List Price Price
N/A 51227-48090 51227-48090 / Damper

FRONT

$97.86 $73.40
