ELECTRICAL/BULBS - CHASSIS for 2005 Toyota Sienna

Select BULBS - CHASSIS Part

2005 Toyota Sienna

Change vehicle

ELECTRICAL/BULBS - CHASSIS for 2005 Toyota Sienna #1
No. Part # Part # / Description List Price Price
1 67690-08110-B0 67690-08110-B0 / Door Trim Panel, LEFT

TRIM CODE C, STONE

$482.16 $361.62
1 67680-08110-B0 67680-08110-B0 / Door Trim Panel, RIGHT

TRIM CODE C, STONE

$482.16 $361.62
1 67690-08091-E0 67690-08091-E0 / Door Trim Panel, LEFT

TRIM CODE A, FAWN

$482.16 $361.62
1 67690-08091-B0 67690-08091-B0 / Door Trim Panel, LEFT

TRIM CODE A, STONE

$482.16 $361.62
1 67690-08110-E0 67690-08110-E0 / Door Trim Panel, LEFT

TRIM CODE C, FAWN

$482.16 $361.62
1 67680-08091-E0 67680-08091-E0 / Door Trim Panel, RIGHT

TRIM CODE A, FAWN

$482.16 $361.62
1 67680-08110-E0 67680-08110-E0 / Door Trim Panel, RIGHT

TRIM CODE C, FAWN

$482.16 $361.62
1 67680-08091-B0 67680-08091-B0 / Door Trim Panel, RIGHT

TRIM CODE A, STONE

$482.16 $361.62
2 90159-A0064 90159-A0064 / Door Trim Panel Screw, LEFT

$0.78 $0.59
2 90159-A0064 90159-A0064 / Door Trim Panel Screw, RIGHT

$0.78 $0.59
3 90189-04200 90189-04200 / Door Trim Panel Grommet, RIGHT

$1.03 $0.77
3 90189-04200 90189-04200 / Door Trim Panel Grommet, LEFT

$1.03 $0.77
4 90467-10161 90467-10161 / Door Trim Panel Clip, LEFT

$1.26 $0.95
4 90467-10161 90467-10161 / Door Trim Panel Clip, RIGHT

$1.26 $0.95
5 68173-08010 68173-08010 / Belt Weather-strip, RIGHT

$30.69 $23.02
5 68174-08010 68174-08010 / Belt Weather-strip, LEFT

$30.69 $23.02
6 65907-08010 65907-08010 / Sunshade, RIGHT

$196.79 $147.59
6 65908-08010 65908-08010 / Sunshade, LEFT

$196.79 $147.59
7 65988-08010 65988-08010 / Sunshade Hook, LEFT

$5.92 $4.44
7 65988-08010 65988-08010 / Sunshade Hook, RIGHT

$5.92 $4.44
8 67679-08010-B0 67679-08010-B0 / Sunshade Bezel, RIGHT

DARK STONE

$46.43 $34.82
8 67699-08010-E0 67699-08010-E0 / Sunshade Bezel, LEFT

SANDAL WOOD

$46.43 $34.82
8 67699-08010-B0 67699-08010-B0 / Sunshade Bezel, LEFT

DARK STONE

$46.43 $34.82
8 67679-08010-E0 67679-08010-E0 / Sunshade Bezel, RIGHT

SANDAL WOOD

$46.43 $34.82
9 67677-08020-E0 67677-08020-E0 / Upper Cover, RIGHT

FAWN

$80.71 $60.53
9 67678-08020-E0 67678-08020-E0 / Upper Cover, LEFT

FAWN

$80.71 $60.53
9 67677-08020-B0 67677-08020-B0 / Upper Cover, RIGHT

STONE

$80.71 $60.53
9 67678-08020-B0 67678-08020-B0 / Upper Cover, LEFT

STONE

$80.71 $60.53
10 67667-08020 67667-08020 / Window Molding, RIGHT

$46.43 $34.82
10 67668-08020 67668-08020 / Window Molding, LEFT

$46.43 $34.82
11 68174-08020 68174-08020 / Inner Weather-strip, LEFT

$10.60 $7.95
11 68173-08020 68173-08020 / Inner Weather-strip, RIGHT

$10.60 $7.95
12 90084-46035 90084-46035 / Inner Weather-strip Fastener, RIGHT

$0.63 $0.47
12 90084-46035 90084-46035 / Inner Weather-strip Fastener, LEFT

$0.63 $0.47
13 67749-08010 67749-08010 / Inner Weather-strip Clip, LEFT

$1.32 $0.99
13 67749-08010 67749-08010 / Inner Weather-strip Clip, RIGHT

$1.32 $0.99
14 81230-0C020 81230-0C020 / Courtesy Lamp, RIGHT

$19.54 $14.66
14 81230-0C020 81230-0C020 / Courtesy Lamp, LEFT

$19.54 $14.66
15 81231-0C010 81231-0C010 / Lens, LEFT

$5.98 $4.49
15 81231-0C010 81231-0C010 / Lens, RIGHT

$5.98 $4.49
16 00234-00194 00234-00194 / Bulb, LEFT

$0.57 $0.43
16 00234-00194 00234-00194 / Bulb, RIGHT

$0.57 $0.43
16 00234-00194 00234-00194 / Exterior Bulbs

SIENNA; REAR COMBINATION; 3.8W

$0.57 $0.43
17 48141-AC010 48141-AC010 / Retainer, LEFT

$4.71 $3.53
17 48141-AC010 48141-AC010 / Retainer, RIGHT

$4.71 $3.53

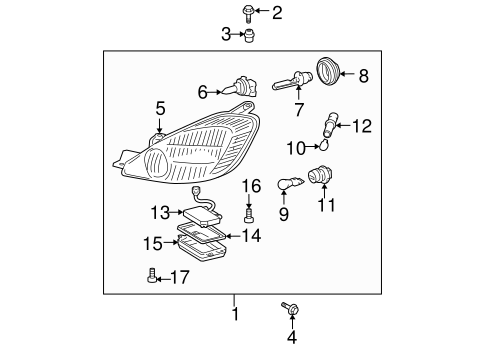

ELECTRICAL/BULBS - CHASSIS for 2005 Toyota Sienna #2
No. Part # Part # / Description List Price Price
1 81110-AE020 81110-AE020 / Headlamp Assembly, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$1,105.29 $828.97
1 81150-AE020 81150-AE020 / Headlamp Assembly, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$1,105.29 $828.97
1 81150-AE020 81150-AE020 / Composite Assembly

SIENNA; W/HID; LEFT

$1,105.29 $828.97
1 81110-AE020 81110-AE020 / Composite Assembly

SIENNA; W/HID; RIGHT

$1,105.29 $828.97
2 90159-50353 90159-50353 / Headlamp Assembly Screw, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$0.89 $0.67
3 90189-05152 90189-05152 / Headlamp Assembly Grommet, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$1.01 $0.76
4 90109-A0002 90109-A0002 / Headlamp Assembly Bolt, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$0.83 $0.62
5 81170-AE020 81170-AE020 / Lens & Housing, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$442.12 $331.59
5 81130-AE020 81130-AE020 / Lens & Housing, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$442.12 $331.59
5 81130-AE020 81130-AE020 / Composite Headlamp

SIENNA; W/HID; RIGHT

$442.12 $331.59
5 81170-AE020 81170-AE020 / Composite Headlamp

SIENNA; W/HID; LEFT

$442.12 $331.59
6 90981-13046 90981-13046 / High Beam Bulb, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$23.73 $17.80
6 90981-13046 90981-13046 / Headlamp Bulb

SIENNA; W/O HID; HIGH BEAM

$23.73 $17.80
7 90981-20002 90981-20002 / Hid Bulb, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$175.00 $131.25
7 90981-20002 90981-20002 / Hid Bulb, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$175.00 $131.25
7 90981-20002 90981-20002 / Headlamp Bulb

SIENNA; W/HID; LOW BEAM

$175.00 $131.25
8 81139-AE020 81139-AE020 / Socket Cover, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$10.46 $7.85
8 81139-AE020 81139-AE020 / Socket Cover, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$10.46 $7.85
9 90081-AD005 90081-AD005 / Signal Lamp Bulb, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

- -
9 90081-AD005 90081-AD005 / Signal Lamp Bulb, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

- -
10 00234-00192 00234-00192 / Marker Lamp Bulb, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$1.04 $0.78
11 90069-81003 90069-81003 / Socket, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05, SIGNAL BULB

$10.46 $7.85
11 90069-81003 90069-81003 / Socket, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05, SIGNAL BULB

$10.46 $7.85
12 81138-22680 81138-22680 / Socket, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05, MARKER BULB

$15.31 $11.48
13 85967-08010 85967-08010 / Control Module, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$232.16 $174.12
13 85967-08010 85967-08010 / Control Module, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$232.16 $174.12
13 85967-08010 85967-08010 / Control Module

SIENNA

$232.16 $174.12
14 81117-07050 81117-07050 / Control Module Packing, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$11.44 $8.58
14 81117-07050 81117-07050 / Control Module Packing, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$11.44 $8.58
15 81189-07050 81189-07050 / Control Module Cover, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05

$9.83 $7.37
15 81189-07050 81189-07050 / Control Module Cover, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05

$9.83 $7.37
16 81136-07050 81136-07050 / Control Module Screw, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05, UPPER

$1.75 $1.31
16 81136-07050 81136-07050 / Control Module Screw, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05, UPPER

$1.75 $1.31
17 81136-AE020 81136-AE020 / Control Module Screw, RIGHT

W/HIGH INTENSITY DISCHARGE, 2004-05, LOWER

$2.33 $1.75
17 81136-AE020 81136-AE020 / Control Module Screw, LEFT

W/HIGH INTENSITY DISCHARGE, 2004-05, LOWER

$2.33 $1.75

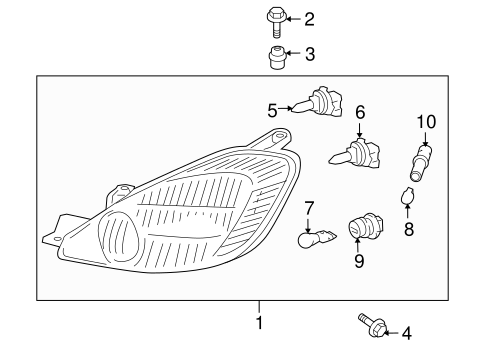

No. Part # Part # / Description List Price Price
1 81110-AE010 81110-AE010 / Headlamp Assembly, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$327.49 $245.62
1 81150-AE010 81150-AE010 / Headlamp Assembly, LEFT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$327.49 $245.62
1 81110-AE010 81110-AE010 / Composite Assembly

SIENNA; W/O HID; RIGHT

$327.49 $245.62
1 81150-AE010 81150-AE010 / Composite Assembly

SIENNA; W/O HID; LEFT

$327.49 $245.62
2 90159-50353 90159-50353 / Headlamp Assembly Screw, LEFT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$0.89 $0.67
3 90189-05152 90189-05152 / Headlamp Assembly Grommet, LEFT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$1.01 $0.76
4 90109-A0002 90109-A0002 / Headlamp Assembly Bolt, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$0.83 $0.62
5 90981-13046 90981-13046 / High Beam Bulb, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$23.73 $17.80
6 90981-13047 90981-13047 / Low Beam Bulb, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$23.73 $17.80
6 90981-13047 90981-13047 / Low Beam Bulb, LEFT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$23.73 $17.80
6 90981-13047 90981-13047 / Headlamp Bulb

SIENNA; W/O HID; LOW BEAM

$23.73 $17.80
7 90981-AD005 90981-AD005 / Signal Lamp Bulb, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$6.38 $4.79
7 90981-AD005 90981-AD005 / Signal Lamp Bulb, LEFT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$6.38 $4.79
7 90981-AD005 90981-AD005 / Exterior Bulbs

SIENNA; FRONT TURN SIGNAL

$6.38 $4.79
8 00234-00192 00234-00192 / Marker Lamp Bulb, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05

$1.04 $0.78
8 00234-00192 00234-00192 / Exterior Bulbs

SIENNA; FRONT PARK LAMP

$1.04 $0.78
10 81138-22680 81138-22680 / Socket, RIGHT

W/O HIGH INTENSITY DISCHARGE, 2004-05, MARKER BULB

$15.31 $11.48
