COOLING SYSTEM/RADIATOR & COMPONENTS for 2004 Scion xA

Select RADIATOR & COMPONENTS Part

2004 Scion xA

Change vehicle

COOLING SYSTEM/RADIATOR & COMPONENTS for 2004 Scion xA #1
No. Part # Part # / Description List Price Price
N/A 90080-87010 90080-87010 / Fan Relay

XA; NO.1

$28.85 $21.64
N/A 85928-52011 85928-52011 / Resistor

XA

$26.86 $20.15
N/A 90084-98032 90084-98032 / Fan Relay

XA; NO.2

$55.71 $41.78
1 16400-21071 16400-21071 / Radiator

XA; AUTO TRANS

$308.37 $231.28
1 16400-21121 16400-21121 / Radiator

XA; MANUAL TRANS

$272.28 $204.21
4 16401-31520 16401-31520 / Radiator Cap

XA

$17.27 $12.95
5 16321-21020 16321-21020 / Thermostat Housing

XA

$18.56 $13.92
6 16325-62010 16325-62010 / Gasket

XA

$6.35 $4.76
7 90916-03093 90916-03093 / Thermostat

XA

$24.13 $18.10
9 16271-21021 16271-21021 / Gasket

XA

$5.60 $4.20
10 16361-23050 16361-23050 / Fan Blade

XA; TO 11/03

$64.06 $48.05
10 16361-21050 16361-21050 / Fan Blade

XA; FROM 11/03

$57.97 $43.48
11 16363-0D110 16363-0D110 / Fan Motor

XA; TO 7/03

$206.25 $154.69
11 16361-21050 16361-21050 / Fan Motor

XA; FROM 7/03

$57.97 $43.48
12 16711-21030 16711-21030 / Fan Shroud

XA

$103.06 $77.30

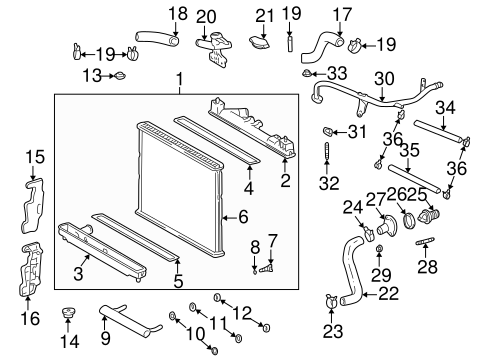

No. Part # Part # / Description List Price Price
1 16400-21071 16400-21071 / Radiator Assembly

AUTO TRANS

$308.37 $231.28
1 16400-21121 16400-21121 / Radiator Assembly

MANUAL TRANS

$272.28 $204.21
2 16441-21070 16441-21070 / Tank

UPPER

$127.86 $95.90
3 16461-21060 16461-21060 / Tank

LOWER, MANUAL TRANS

$114.64 $85.98
3 16461-21070 16461-21070 / Tank

LOWER, AUTO TRANS

$114.64 $85.98
4 16442-21070 16442-21070 / Tank Upper Seal

$40.71 $30.53
5 16462-21070 16462-21070 / Tank Lower Seal

$40.71 $30.53
6 16403-21070 16403-21070 / Core

AUTO TRANS

$181.53 $136.15
7 23322-54010 23322-54010 / Drain Valve

$7.44 $5.58
8 16492-21050 16492-21050 / Drain Valve O-Ring

$3.00 $2.25
9 16491-23090 16491-23090 / Trans Cooler

$326.11 $244.58
10 16492-62060 16492-62060 / Trans Cooler O-Ring

$9.65 $7.24
11 16493-74520 16493-74520 / Trans Cooler Washer

$1.47 $1.10
12 16406-74520 16406-74520 / Trans Cooler Support

$2.61 $1.96
13 16523-23010 16523-23010 / Upper Insulator, LEFT

$7.99 $5.99
13 16523-23010 16523-23010 / Upper Insulator, RIGHT

$7.99 $5.99
14 90480-40016 90480-40016 / Lower Insulator, RIGHT

$11.64 $8.73
14 90480-40016 90480-40016 / Lower Insulator, LEFT

$11.64 $8.73
15 53285-52111 53285-52111 / Side Seal, RIGHT

$42.87 $32.15
16 53286-52070 53286-52070 / Side Seal, LEFT

$45.71 $34.28
17 16571-21020 16571-21020 / Center Hose

$19.61 $14.71
18 16573-21010 16573-21010 / Upper Hose

$13.51 $10.13
19 90467-33006 90467-33006 / Upper Hose Clamp

$5.11 $3.83
20 16502-21010 16502-21010 / Filler

ENGINE COOLANT

$24.22 $18.17
21 16401-31520 16401-31520 / Filler Cap

$17.27 $12.95
22 16572-21020 16572-21020 / Lower Hose

$18.52 $13.89
23 90467-34004 90467-34004 / Lower Hose Clamp

FRONT

$5.26 $3.95
24 90467-33006 90467-33006 / Lower Hose Clamp

REAR

$5.11 $3.83
25 90916-03093 90916-03093 / Thermostat

$24.13 $18.10
26 16325-62010 16325-62010 / Thermostat Gasket

$6.35 $4.76
27 16321-21020 16321-21020 / Thermostat Hsng

$18.56 $13.92
28 90126-06019 90126-06019 / Thermostat Hsng Stud

$1.72 $1.29
29 90179-06299 90179-06299 / Thermostat Hsng Nut

$0.89 $0.67
30 16268-21022 16268-21022 / By-Pass Pipe

$42.50 $31.88
31 16258-21021 16258-21021 / By-Pass Pipe Gasket

$3.94 $2.96
32 90080-12001 90080-12001 / By-Pass Pipe Stud

$1.12 $0.84
33 90179-06299 90179-06299 / By-Pass Pipe Nut

$0.89 $0.67
34 16261-21040 16261-21040 / By-Pass Hose

SHORT

$6.82 $5.12
35 99555-10185 99555-10185 / By-Pass Hose

LONG

$4.36 $3.27
36 96135-51300 96135-51300 / By-Pass Hose Clamp

$3.25 $2.44
