COOLING SYSTEM/RADIATOR & COMPONENTS for 2003 Toyota Highlander

Select RADIATOR & COMPONENTS Part

2003 Toyota Highlander

Change vehicle

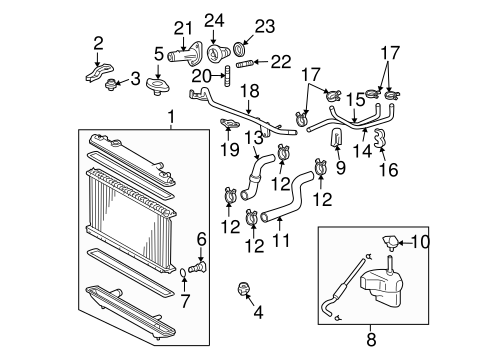

COOLING SYSTEM/RADIATOR & COMPONENTS for 2003 Toyota Highlander #1
No. Part # Part # / Description List Price Price
N/A 90987-02009 90987-02009 / Fan Relay

HIGHLANDER; #1, #3

$42.15 $31.61
N/A 90987-04003 90987-04003 / Fan Relay

HIGHLANDER; #2

$24.99 $18.74
1 16400-28240 16400-28240 / Radiator

HIGHLANDER; 2.4L; W/O HEAVY DUTY

$441.42 $331.07
1 16400-28260 16400-28260 / Radiator

HIGHLANDER; 2.4L; W/HEAVY DUTY

$487.84 $365.88
5 90916-A3003 90916-A3003 / Thermostat

HIGHLANDER

$24.05 $18.04
6 16325-62010 16325-62010 / Thermostat Gasket

HIGHLANDER

$6.35 $4.76
7 16321-0H011 16321-0H011 / Thermostat Housing

HIGHLANDER; 2.4L

$27.67 $20.75
8 16470-20070 16470-20070 / Reservoir

HIGHLANDER

$100.79 $75.59
11 16361-20070 16361-20070 / Fan Blade

HIGHLANDER; 2.4L; LEFT; W/HEAVY DUTY

$64.06 $48.05
11 16361-20080 16361-20080 / Fan Blade

HIGHLANDER; 2.4L; RIGHT; W/HEAVY DUTY

$88.40 $66.30
11 88453-33010 88453-33010 / Fan Blade

HIGHLANDER; 2.4L; RIGHT; W/O HEAVY DUTY

$17.81 $13.36
11 16361-74140 16361-74140 / Fan Blade

HIGHLANDER; 2.4L; LEFT; W/O HEAVY DUTY

$64.06 $48.05
12 16363-74280 16363-74280 / Fan Motor

HIGHLANDER; 2.4L; W/O HEAVY DUTY; LEFT

$226.38 $169.79
12 16363-20360 16363-20360 / Fan Motor

HIGHLANDER; 2.4L; W/HEAVY DUTY; LEFT

$268.60 $201.45
12 16363-74290 16363-74290 / Fan Motor

HIGHLANDER; 2.4L; W/O HEAVY DUTY; RIGHT

$226.38 $169.79
13 16711-28190 16711-28190 / Fan Shroud

HIGHLANDER; 2.4L; W/O HEAVY DUTY

$116.60 $87.45
13 16711-20120 16711-20120 / Fan Shroud

HIGHLANDER; 2.4L; W/HEAVY DUTY

$116.60 $87.45
No. Part # Part # / Description List Price Price
1 16400-28240 16400-28240 / Radiator Assembly

2.4 LITER, WARRANTY, W/O HD COOLING

$441.42 $331.07
1 16400-28260 16400-28260 / Radiator Assembly

2.4 LITER, WARRANTY, W/HD COOLING

$487.84 $365.88
1 16410-AZ047 16410-AZ047 / Radiator Assembly

2.4 LITER, SERVICE

$170.27 $127.70
2 16533-20010 16533-20010 / Radiator Assembly Mount Bracket, RIGHT

2.4 LITER

$21.78 $16.34
2 16533-20010 16533-20010 / Radiator Assembly Mount Bracket, LEFT

2.4 LITER

$21.78 $16.34
3 16523-74010 16523-74010 / Radiator Assembly Upper Insulator, LEFT

2.4 LITER

$8.27 $6.20
3 16523-74010 16523-74010 / Radiator Assembly Upper Insulator, RIGHT

2.4 LITER

$8.27 $6.20
4 16535-03050 16535-03050 / Radiator Assembly Lower Insulator, RIGHT

2.4 LITER

$12.10 $9.08
4 16535-03050 16535-03050 / Radiator Assembly Lower Insulator, LEFT

2.4 LITER

$12.10 $9.08
5 16401-31520 16401-31520 / Radiator Cap

2.4 LITER

$17.27 $12.95
6 23322-54010 23322-54010 / Drain Plug

2.4 LITER

$7.44 $5.58
7 16492-21050 16492-21050 / Drain Plug O-Ring

2.4 LITER

$3.00 $2.25
8 16470-20070 16470-20070 / Reservoir

2.4 LITER

$100.79 $75.59
9 16611-74170 16611-74170 / Reservoir Bracket

2.4 LITER

$15.75 $11.81
10 16405-20050 16405-20050 / Reservoir Cap

2.4 LITER

$29.31 $21.98
11 16571-28110 16571-28110 / Upper Hose

2.4 LITER

$26.18 $19.64
12 90466-35001 90466-35001 / Upper Hose Clamp

2.4 LITER

$9.14 $6.86
13 16572-28070 16572-28070 / Lower Hose

2.4 LITER

$21.57 $16.18
14 16261-28020 16261-28020 / By-Pass Hose

2.4 LITER, #1

$10.51 $7.88
15 16264-28020 16264-28020 / By-Pass Hose

2.4 LITER, #2

$10.51 $7.88
16 90464-00558 90464-00558 / By-Pass Hose Retainer

2.4 LITER

$3.39 $2.54
17 96135-51300 96135-51300 / By-Pass Hose Clamp

2.4 LITER

$3.25 $2.44
18 16268-28010 16268-28010 / By-Pass Pipe

2.4 LITER

$42.50 $31.88
19 16258-0H010 16258-0H010 / By-Pass Pipe Gasket

2.4 LITER

$1.38 $1.04
20 90080-12001 90080-12001 / By-Pass Pipe Stud

2.4 LITER

$1.12 $0.84
21 16321-0H011 16321-0H011 / Thermostat Hsng

2.4 LITER

$27.67 $20.75
22 90126-06022 90126-06022 / Thermostat Hsng Stud

2.4 LITER

$1.72 $1.29
23 16325-62010 16325-62010 / Thermostat Hsng Gasket

2.4 LITER

$6.35 $4.76
24 90916-A3003 90916-A3003 / Thermostat

2.4 LITER

$24.05 $18.04
