ELECTRICAL/REAR DOOR for 2003 Toyota Echo

Select REAR DOOR Part

2003 Toyota Echo

Change vehicle

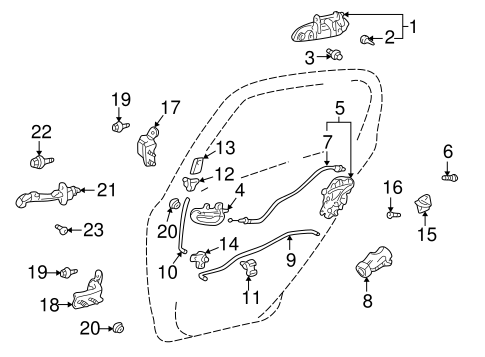

ELECTRICAL/REAR DOOR for 2003 Toyota Echo #1
No. Part # Part # / Description List Price Price
1 69230-52010 69230-52010 / Handle, Outside, RIGHT

PRIMER

$68.61 $51.46
1 69230-52020-J4 69230-52020-J4 / Handle, Outside, RIGHT

DARK BLUE, FROM 1/01

$95.45 $71.59
1 69230-52020-A1 69230-52020-A1 / Handle, Outside, RIGHT

WHITE, FROM 1/01

$95.45 $71.59
1 69230-52020-E0 69230-52020-E0 / Handle, Outside, RIGHT

BEIGE

$95.45 $71.59
1 69240-52020-A1 69240-52020-A1 / Handle, Outside, LEFT

WHITE, FROM 1/01

$95.45 $71.59
1 69240-52020-E0 69240-52020-E0 / Handle, Outside, LEFT

BEIGE

$95.45 $71.59
1 69240-52020-J4 69240-52020-J4 / Handle, Outside, LEFT

DARK BLUE, FROM 1/01

$95.45 $71.59
1 69230-52020-C0 69230-52020-C0 / Handle, Outside, RIGHT

BLACK

$95.45 $71.59
1 69240-52010 69240-52010 / Handle, Outside, LEFT

PRIMER

$68.61 $51.46
1 69240-52020-C0 69240-52020-C0 / Handle, Outside, LEFT

BLACK

$95.45 $71.59
1 69230-52020-B2 69230-52020-B2 / Handle, Outside, RIGHT

GRAY

$95.45 $71.59
1 69230-52020-H1 69230-52020-H1 / Handle, Outside, RIGHT

AQUA

$95.45 $71.59
1 69240-52020-H1 69240-52020-H1 / Handle, Outside, LEFT

AQUA

$95.45 $71.59
1 69230-52020-B3 69230-52020-B3 / Handle, Outside, RIGHT

SILVER

$95.45 $71.59
1 69240-52020-B2 69240-52020-B2 / Handle, Outside, LEFT

GRAY

$95.45 $71.59
1 69230-52020-D4 69230-52020-D4 / Handle, Outside, RIGHT

RED

$95.45 $71.59
1 69240-52020-B3 69240-52020-B3 / Handle, Outside, LEFT

SILVER

$95.45 $71.59
1 69240-52020-D4 69240-52020-D4 / Handle, Outside, LEFT

RED

$95.45 $71.59
1 69240-52020-G0 69240-52020-G0 / Handle, Outside, LEFT

GREEN

$95.45 $71.59
1 69230-52020-G0 69230-52020-G0 / Handle, Outside, RIGHT

GREEN

$95.45 $71.59
2 90541-04018 90541-04018 / Handle, Outside Cushion, LEFT

$1.12 $0.84
2 90541-04018 90541-04018 / Handle, Outside Cushion, RIGHT

$1.12 $0.84
3 90105-06260 90105-06260 / Handle, Outside Bolt, RIGHT

$0.89 $0.67
3 90105-06260 90105-06260 / Handle, Outside Bolt, LEFT

$0.89 $0.67
4 69205-52040-B0 69205-52040-B0 / Handle, Inside, RIGHT

GRAY, W/O CHROME

$35.08 $26.31
5 69340-52160 69340-52160 / Lock Assembly, LEFT

POWER LOCKS

$113.58 $85.19
5 69340-52010 69340-52010 / Lock Assembly, LEFT

MANUAL LOCKS

$147.86 $110.90
5 69330-52010 69330-52010 / Lock Assembly, RIGHT

MANUAL LOCKS

$147.86 $110.90
5 69330-52150 69330-52150 / Lock Assembly, RIGHT

POWER LOCKS

$113.58 $85.19
5 69330-52010 69330-52010 / Lock

ECHO; MANUAL; RIGHT

$147.86 $110.90
5 69340-52010 69340-52010 / Lock

ECHO; MANUAL; LEFT

$147.86 $110.90
5 69330-52150 69330-52150 / Lock

ECHO; POWER; RIGHT

$113.58 $85.19
5 69340-52160 69340-52160 / Lock

ECHO; POWER; LEFT

$113.58 $85.19
6 90148-A0005 90148-A0005 / Lock Assembly Screw, LEFT

$0.92 $0.69
6 90148-A0005 90148-A0005 / Lock Assembly Screw, RIGHT

$0.92 $0.69
7 69730-52010 69730-52010 / Lock Cable, LEFT

$10.60 $7.95
7 69730-52010 69730-52010 / Lock Cable, RIGHT

$10.60 $7.95
8 69140-52030 69140-52030 / Actuator, LEFT

W/CHILD LOCK

$138.92 $104.19
8 69130-52010 69130-52010 / Actuator, RIGHT

W/O CHILD LOCK

$126.42 $94.82
8 69140-52010 69140-52010 / Actuator, LEFT

W/O CHILD LOCK

$126.42 $94.82
8 69130-52030 69130-52030 / Actuator, RIGHT

W/CHILD LOCK

$138.92 $104.19
8 69130-52010 69130-52010 / Lock Actuator

ECHO; RIGHT

$126.42 $94.82
8 69140-52010 69140-52010 / Lock Actuator

ECHO; LEFT

$126.42 $94.82
9 69738-52010 69738-52010 / Lock Rod, LEFT

LOCK TO BELLCRANK

$10.03 $7.52
9 69737-52010 69737-52010 / Lock Rod, RIGHT

LOCK TO BELLCRANK

$10.03 $7.52
10 69715-52010 69715-52010 / Lock Rod, RIGHT

BELLCRANK TO KNOB

$9.88 $7.41
10 69716-52010 69716-52010 / Lock Rod, LEFT

BELLCRANK TO KNOB

$9.88 $7.41
11 69749-12030 69749-12030 / Lock Rod Clamp, RIGHT

$3.33 $2.50
11 69749-12030 69749-12030 / Lock Rod Clamp, LEFT

$3.33 $2.50
12 69736-12130 69736-12130 / Lock Rod Guide, LEFT

$9.88 $7.41
12 69736-12130 69736-12130 / Lock Rod Guide, RIGHT

$9.88 $7.41
13 69741-02020-B0 69741-02020-B0 / Lock Knob, RIGHT

GRAY

- -
13 69741-87003-E1 69741-87003-E1 / Lock Knob, LEFT

SANDAL WOOD

$3.51 $2.63
14 69753-10010 69753-10010 / Bellcrank, RIGHT

$9.51 $7.13
14 69753-10010 69753-10010 / Bellcrank, LEFT

$9.51 $7.13
15 69410-47010 69410-47010 / Striker, RIGHT

$22.73 $17.05
15 69410-47010 69410-47010 / Striker, LEFT

$22.73 $17.05
16 90080-14055 90080-14055 / Striker Screw, RIGHT

$0.83 $0.62
16 90080-14055 90080-14055 / Striker Screw, LEFT

$0.83 $0.62
17 68760-02050 68760-02050 / Hinge, LEFT

UPPER

$53.59 $40.19
17 68750-02050 68750-02050 / Hinge, RIGHT

UPPER

$53.59 $40.19
18 68770-52011 68770-52011 / Hinge, RIGHT

LOWER

$53.59 $40.19
18 68780-52011 68780-52011 / Hinge, LEFT

LOWER

$53.59 $40.19
20 90178-A0008 90178-A0008 / Hinge Nut, LEFT

$1.52 $1.14
20 90178-A0008 90178-A0008 / Hinge Nut, RIGHT

$1.52 $1.14
21 68630-52010 68630-52010 / Door Check, RIGHT

$90.71 $68.03
21 68640-52010 68640-52010 / Door Check, LEFT

$90.71 $68.03
22 90080-10185 90080-10185 / Door Check Bolt, LEFT

$0.89 $0.67
22 90080-10185 90080-10185 / Door Check Bolt, RIGHT

$0.89 $0.67
23 90153-80002 90153-80002 / Door Check Screw, RIGHT

$1.01 $0.76
23 90153-80002 90153-80002 / Door Check Screw, LEFT

$1.01 $0.76

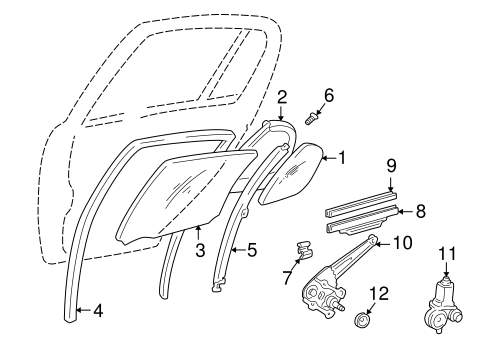

No. Part # Part # / Description List Price Price
1 68124-52050 68124-52050 / Fixed Glass, LEFT

TOYOTA

$35.96 $26.97
1 68123-52050 68123-52050 / Fixed Glass, RIGHT

TOYOTA

$35.96 $26.97
2 68188-52030 68188-52030 / Weatherstrip, RIGHT

$26.72 $20.04
2 68189-52030 68189-52030 / Weatherstrip, LEFT

$26.72 $20.04
3 68113-52060 68113-52060 / Movable Glass, RIGHT

TOYOTA

$93.43 $70.07
3 68114-52060 68114-52060 / Movable Glass, LEFT

TOYOTA

$93.43 $70.07
4 68152-52040 68152-52040 / Run Channel, LEFT

$101.80 $76.35
4 68142-52040 68142-52040 / Run Channel, RIGHT

$101.80 $76.35
5 67407-52040 67407-52040 / Division Bar, RIGHT

$69.99 $52.49
5 67408-52040 67408-52040 / Division Bar, LEFT

$69.99 $52.49
6 90151-50026 90151-50026 / Division Bar Screw, RIGHT

$0.89 $0.67
6 90151-50026 90151-50026 / Division Bar Screw, LEFT

$0.89 $0.67
7 67216-52010 67216-52010 / Glass Stop, LEFT

$3.48 $2.61
7 67216-52010 67216-52010 / Glass Stop, RIGHT

$3.48 $2.61
8 69905-52010 69905-52010 / Channel, RIGHT

$16.26 $12.20
8 69906-52020 69906-52020 / Channel, LEFT

$16.26 $12.20
9 69975-0R020 69975-0R020 / Filler, RIGHT

$8.50 $6.38
9 69975-0R020 69975-0R020 / Filler, LEFT

$8.50 $6.38
10 69830-52020 69830-52020 / Regulator, RIGHT

MANUAL WINDOWS

$81.33 $61.00
10 69804-52010 69804-52010 / Regulator, LEFT

POWER WINDOWS

$81.33 $61.00
10 69803-52010 69803-52010 / Regulator, RIGHT

POWER WINDOWS

$81.33 $61.00
10 69840-52020 69840-52020 / Regulator, LEFT

MANUAL WINDOWS

$81.33 $61.00
10 69830-52020 69830-52020 / Window Regulator

ECHO; MANUAL; RIGHT

$81.33 $61.00
10 69803-52010 69803-52010 / Window Regulator

ECHO; POWER; RIGHT

$81.33 $61.00
10 69840-52020 69840-52020 / Window Regulator

ECHO; MANUAL; LEFT

$81.33 $61.00
10 69804-52010 69804-52010 / Window Regulator

ECHO; POWER; LEFT

$81.33 $61.00
11 85720-52010 85720-52010 / Window Motor, RIGHT

$327.17 $245.38
11 85710-52020 85710-52020 / Window Motor, LEFT

$327.17 $245.38
11 85710-52020 85710-52020 / Window Motor

ECHO; LEFT

$327.17 $245.38
11 85720-52010 85720-52010 / Window Motor

ECHO; RIGHT

$327.17 $245.38
12 69285-22010-08 69285-22010-08 / Plate, RIGHT

$2.50 $1.88
12 69285-22010-08 69285-22010-08 / Plate, LEFT

$2.50 $1.88

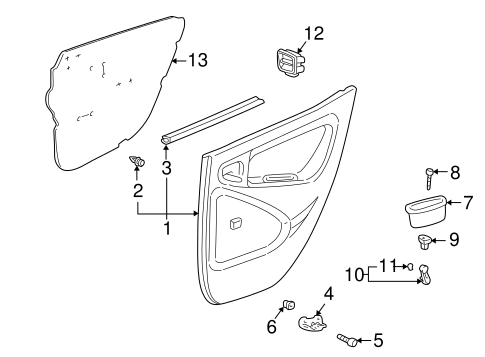

ELECTRICAL/REAR DOOR for 2003 Toyota Echo #3
No. Part # Part # / Description List Price Price
1 67640-52180-B2 67640-52180-B2 / Door Trim Panel, LEFT

W/MANUAL WINDOWS, GRAY

$257.41 $193.06
1 67630-52180-B2 67630-52180-B2 / Door Trim Panel, RIGHT

W/MANUAL WINDOWS, GRAY

$304.99 $228.74
1 67640-52160-E0 67640-52160-E0 / Door Trim Panel, LEFT

W/POWER WINDOWS, SANDAL WOOD

$302.92 $227.19
1 67640-52160-B2 67640-52160-B2 / Door Trim Panel, LEFT

W/POWER WINDOWS, GRAY

$360.71 $270.53
1 67630-52160-E0 67630-52160-E0 / Door Trim Panel, RIGHT

W/POWER WINDOWS, SANDAL WOOD

$302.92 $227.19
1 67630-52160-B2 67630-52160-B2 / Door Trim Panel, RIGHT

W/POWER WINDOWS, GRAY

$302.92 $227.19
1 67630-52180-E0 67630-52180-E0 / Door Trim Panel, RIGHT

W/MANUAL WINDOWS, SANDAL WOOD

$304.99 $228.74
1 67640-52180-E0 67640-52180-E0 / Door Trim Panel, LEFT

W/MANUAL WINDOWS, SANDAL WOOD

$257.41 $193.06
2 67771-12050 67771-12050 / Door Trim Panel Retainer, LEFT

$2.07 $1.55
2 67771-12050 67771-12050 / Door Trim Panel Retainer, RIGHT

$2.07 $1.55
3 68174-52051 68174-52051 / Weatherstrip, LEFT

$10.71 $8.03
3 68173-52051 68173-52051 / Weatherstrip, RIGHT

$10.71 $8.03
4 67625-52010 67625-52010 / Mount Bracket, LEFT

$7.64 $5.73
4 67625-52010 67625-52010 / Mount Bracket, RIGHT

$7.64 $5.73
5 90168-60006 90168-60006 / Mount Bracket Screw, LEFT

$0.35 $0.26
5 90168-60006 90168-60006 / Mount Bracket Screw, RIGHT

$0.35 $0.26
6 90189-06018 90189-06018 / Mount Bracket Nut, LEFT

$1.55 $1.16
6 90189-06018 90189-06018 / Mount Bracket Nut, RIGHT

$1.55 $1.16
7 74814-52010-B2 74814-52010-B2 / Pull Pocket, LEFT

GRAY

$13.25 $9.94
7 74813-52010-B2 74813-52010-B2 / Pull Pocket, RIGHT

GRAY

$13.25 $9.94
7 74813-52010-E0 74813-52010-E0 / Pull Pocket, RIGHT

SANDAL WOOD

$13.25 $9.94
7 74814-52010-E0 74814-52010-E0 / Pull Pocket, LEFT

SANDAL WOOD

$13.25 $9.94
8 90164-50032 90164-50032 / Pull Pocket Screw, RIGHT

$0.86 $0.65
8 90164-50032 90164-50032 / Pull Pocket Screw, LEFT

$0.86 $0.65
9 90084-18002 90084-18002 / Pull Pocket Nut, LEFT

$1.32 $0.99
9 90084-18002 90084-18002 / Pull Pocket Nut, RIGHT

$1.32 $0.99
10 69260-52030-B4 69260-52030-B4 / Regulator Handle, LEFT

GRAY

$17.99 $13.49
10 69260-52030-E2 69260-52030-E2 / Regulator Handle, LEFT

SANDAL WOOD

$17.99 $13.49
10 69260-52030-B4 69260-52030-B4 / Regulator Handle, RIGHT

GRAY

$17.99 $13.49
10 69260-52030-E2 69260-52030-E2 / Regulator Handle, RIGHT

SANDAL WOOD

$17.99 $13.49
11 90520-01274 90520-01274 / Regulator Handle Snap Ring, RIGHT

$1.35 $1.01
11 90520-01274 90520-01274 / Regulator Handle Snap Ring, LEFT

$1.35 $1.01
12 84810-52040-B0 84810-52040-B0 / Window Switch, LEFT

GRAY

$79.99 $59.99
12 84810-52040-B0 84810-52040-B0 / Window Switch, RIGHT

GRAY

$79.99 $59.99
12 84810-52010-B1 84810-52010-B1 / Window Switch, RIGHT

SANDAL WOOD

$81.43 $61.07
12 84810-52010-B1 84810-52010-B1 / Window Switch, LEFT

SANDAL WOOD

$81.43 $61.07
12 84810-52040-B0 84810-52040-B0 / Window Switch

ECHO

$79.99 $59.99
13 67841-52030 67841-52030 / Water Deflector, LEFT

$16.29 $12.22
13 67841-52030 67841-52030 / Water Deflector, RIGHT

$16.29 $12.22
