ELECTRICAL/SENDERS for 1999 Toyota Sienna

Select SENDERS Part

1999 Toyota Sienna

Change vehicle

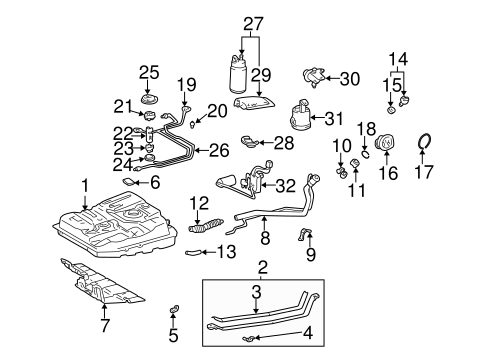

No. Part # Part # / Description List Price Price
1 77001-08010 77001-08010 / Fuel Tank

- -
2 77601-45010 77601-45010 / Mount Strap, LEFT

$94.64 $70.98
2 77601-45010 77601-45010 / Mount Strap, RIGHT

$94.64 $70.98
3 77681-45010 77681-45010 / Mount Strap Insulator, RIGHT

$37.93 $28.45
3 77681-45010 77681-45010 / Mount Strap Insulator, LEFT

$37.93 $28.45
4 77613-16030 77613-16030 / Mount Strap Bracket, RIGHT

#1

$2.99 $2.24
4 77613-16030 77613-16030 / Mount Strap Bracket, LEFT

#1

$2.99 $2.24
5 77614-45010 77614-45010 / Mount Strap Bracket

#2

$15.26 $11.45
6 77651-28020 77651-28020 / Mount Strap Cushion

$5.72 $4.29
7 77641-08020 77641-08020 / Tank Shield

W/O DUAL DOORS

$220.35 $165.26
7 77641-08010 77641-08010 / Tank Shield

W/DUAL DOORS

$195.35 $146.51
8 77201-08900 77201-08900 / Filler Neck

$348.21 $261.16
10 77219-06010 77219-06010 / Filler Neck Upper Cover

$2.38 $1.79
11 77248-06010 77248-06010 / Filler Neck Holder

$4.68 $3.51
12 77213-08010 77213-08010 / Connector Hose

$56.09 $42.07
13 95311-13022 95311-13022 / Breather Tube

$10.40 $7.80
14 77310-48020 77310-48020 / Filler Cap

$29.36 $22.02
15 77316-06010 77316-06010 / Filler Cap Gasket

$19.60 $14.70
16 77291-08010 77291-08010 / Pocket

- -
17 77391-45010 77391-45010 / Pocket O-Ring

OUTER

$4.51 $3.38
18 77391-02040 77391-02040 / Pocket O-Ring

INNER

$2.90 $2.18
19 77340-45010 77340-45010 / Cut-Off Valve

#1

$56.09 $42.07
20 77380-26010 77380-26010 / Cut-Off Valve

#2

$15.08 $11.31
20 77380-26010 77380-26010 / Fuel Tank Vent Valve

SIENNA

$15.08 $11.31
21 77024-06010 77024-06010 / Plate

FUEL SUCTION

$46.78 $35.09
22 77174-06010 77174-06010 / Plate Support

UPPER

$12.58 $9.44
23 77175-06010 77175-06010 / Plate Support

LOWER

$12.58 $9.44
24 77169-33010 77169-33010 / Plate Gasket

$8.50 $6.38
25 77168-33030 77168-33030 / Plate Upper Plate

$30.74 $23.06
26 77209-08010 77209-08010 / Tube

FUEL PUMP

$33.47 $25.10
27 23221-0A030 23221-0A030 / Fuel Pump

$379.44 $284.58
28 23218-0C010 23218-0C010 / Fuel Pump Cushion

$3.28 $2.46
29 23217-0F010 23217-0F010 / Filter

$11.90 $8.93
30 23280-74170 23280-74170 / Pressure Reg

$187.51 $140.63
30 23280-74170 23280-74170 / Fuel Pressure Regulator

SIENNA

$187.51 $140.63
31 23300-74280 23300-74280 / Fuel Filter

SIENNA; FOR FUEL TANK

$32.14 $24.11
32 83320-45010 83320-45010 / Sending Unit

$172.51 $129.38
32 83320-45010 83320-45010 / Fuel Gauge Sending Unit

SIENNA

$172.51 $129.38
No. Part # Part # / Description List Price Price
N/A 83420-AA010 83420-AA010 / Temp Sending Unit

SIENNA

$31.10 $23.33
No. Part # Part # / Description List Price Price
N/A 83530-0E010 83530-0E010 / Oil Pressure Sending Unit

SIENNA; FASCO

$47.78 $35.84
