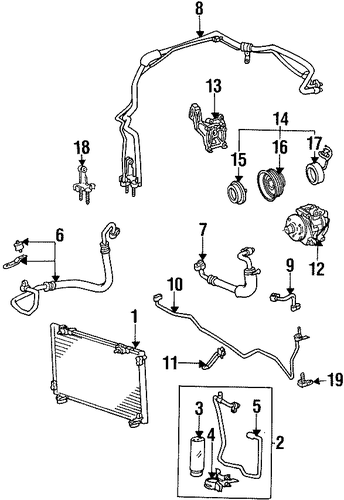

HVAC/CONDENSER, COMPRESSOR & LINES for 1998 Toyota Celica

Select CONDENSER, COMPRESSOR & LINES Part

1998 Toyota Celica

Change vehicle

No. Part # Part # / Description List Price Price
1 88510-2B480 88510-2B480 / Evaporator Assembly

2.2 LITER, DEALER INSTALLED

- -
1 88510-2B390 88510-2B390 / Evaporator Assembly

2.2 LITER, FACTORY INSTALLED

- -
2 88501-20381 88501-20381 / Evaporator Core

CELICA

$349.54 $262.16
3 99365-81110-78 99365-81110-78 / Upper Cover

$28.83 $21.62
4 87116-14010 87116-14010 / Upper Cover Clip

$0.63 $0.47
5 87138-20150 87138-20150 / Resistor

CELICA; DEALER AC

$95.71 $71.78
5 87138-20300 87138-20300 / Resistor

CELICA; FACTORY AC

$103.58 $77.69
6 88578-20470 88578-20470 / Packing

HEATER SIDE

$9.52 $7.14
6 88578-20570 88578-20570 / Packing

BLOWER SIDE

- -
7 88625-60050 88625-60050 / Thermistor

ALL

$8.47 $6.35
8 88626-28010 88626-28010 / Thermistor Holder

$2.32 $1.74
9 88515-22240 88515-22240 / Expansion Valve

DEALER INSTALLED

$92.58 $69.44
10 88605-2D290 88605-2D290 / Wire Harness

2.2 LITER

$56.56 $42.42
11 88710-20510 88710-20510 / Tube Assembly

$94.92 $71.19
12 88539-20260 88539-20260 / Drain Hose

- -
13 88650-2B280 88650-2B280 / Amplifier

2.2 LITER

$222.70 $167.03
14 88502-20260 88502-20260 / Lower Cover

$109.73 $82.30
15 88891-20180 88891-20180 / Lower Cover Lower Plate

- -
16 88326-20050 88326-20050 / Cover Plate

- -
No. Part # Part # / Description List Price Price
1 88460-20470 88460-20470 / Condenser

FACTORY INSTALLED

$393.55 $295.16
1 88460-20490 88460-20490 / Condenser

DEALER INSTALLED

$389.71 $292.28
3 88471-20050 88471-20050 / Dehydrator

W/O PIPE & BRACKET

$71.95 $53.96
3 88471-20050 88471-20050 / Drier

CELICA

$71.95 $53.96
4 88472-20170 88472-20170 / Dehydrator Bracket

$29.99 $22.49
5 88706-20130 88706-20130 / Pipe

$74.09 $55.57
6 88703-20120 88703-20120 / Discharge Hose

2.2 LITER

$190.15 $142.61
7 88712-2B440 88712-2B440 / Suction Hose

2.2 LITER

- -
8 88716-2D310 88716-2D310 / Pipe

EVAPORATOR

$85.69 $64.27
9 88706-20170 88706-20170 / Lines

AT RECEIVER

$41.67 $31.25
10 88706-20140 88706-20140 / Lines

RECEIVER TO PIPE, DEALER INSTALLED

$91.43 $68.57
11 88718-2B700 88718-2B700 / Lines Holder

- -
12 88320-2B240-84 88320-2B240-84 / Compressor

2.2 LITER, ALL

$447.14 $335.36
14 88410-33070 88410-33070 / Clutch

2.2 LITER

$839.30 $629.48
15 88403-06050 88403-06050 / Hub

$98.87 $74.15
15 88403-06050 88403-06050 / Clutch Plate & Hub Assembly

CELICA

$98.87 $74.15
16 88412-33050 88412-33050 / Rotor

2.2 LITER

$340.09 $255.07
16 88412-33050 88412-33050 / Pulley

CELICA; GT

$340.09 $255.07
17 88411-2B090 88411-2B090 / Coil

2.2 LITER

$115.10 $86.33
17 88411-2B090 88411-2B090 / Clutch Coil

CELICA; GT

$115.10 $86.33
18 88688-2D360 88688-2D360 / Bracket

EVAPORATOR PIPE

$21.97 $16.48
19 88718-2B710 88718-2B710 / Bracket

RECV'R TO PIPE LINE

$8.97 $6.73
No. Part # Part # / Description List Price Price
N/A 88360-2B020 88360-2B020 / Shaft Seals

CELICA

$75.98 $56.99
N/A 88711-2B130 88711-2B130 / Discharge Hose

CELICA; GT

$137.59 $103.19
No. Part # Part # / Description List Price Price
N/A 88335-2B030 88335-2B030 / Gasket Kit

CELICA; GT; ALL

$54.41 $40.81
