ELECTRICAL/HEADLAMP COMPONENTS for 1997 Toyota Previa

Select HEADLAMP COMPONENTS Part

1997 Toyota Previa

Change vehicle

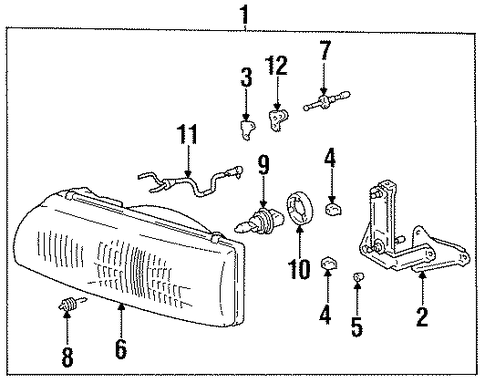

No. Part # Part # / Description List Price Price
1 81150-28300 81150-28300 / Headlamp Assembly, LEFT

W/O FOG LAMPS

$258.72 $194.04
1 81110-28300 81110-28300 / Headlamp Assembly, RIGHT

W/O FOG LAMPS

$258.72 $194.04
1 81110-28300 81110-28300 / Composite Assembly

PREVIA; RIGHT

$258.72 $194.04
1 81150-28300 81150-28300 / Composite Assembly

PREVIA; LEFT

$258.72 $194.04
2 81159-28310 81159-28310 / Headlamp Assembly Bracket, LEFT

W/O FOG LAMPS, OUTER

$21.92 $16.44
3 81118-95D01 81118-95D01 / Headlamp Assembly Bracket, LEFT

W/O FOG LAMPS, INNER

$4.57 $3.43
4 81128-22630 81128-22630 / Headlamp Assembly Retainer, RIGHT

W/O FOG LAMPS, UPPER

$2.64 $1.98
5 90075-10805 90075-10805 / Headlamp Assembly Retainer, LEFT

W/O FOG LAMPS, LOWER

$1.15 $0.86
6 81130-28300 81130-28300 / Lens & Housing, RIGHT

W/O FOG LAMPS

$218.68 $164.01
6 81170-28300 81170-28300 / Lens & Housing, LEFT

W/O FOG LAMPS

$214.39 $160.79
6 81170-28300 81170-28300 / Composite Headlamp

PREVIA; LEFT

$214.39 $160.79
6 81130-28300 81130-28300 / Composite Headlamp

PREVIA; RIGHT

$218.68 $164.01
7 90075-00005 90075-00005 / Lens & Housing Screw, LEFT

W/O FOG LAMPS

$0.98 $0.74
7 90075-00005 90075-00005 / Lens & Housing Screw, RIGHT

W/O FOG LAMPS

$0.98 $0.74
8 90075-25505 90075-25505 / Spring, LEFT

W/O FOG LAMPS

$5.09 $3.82
9 90084-98033 90084-98033 / Headlamp Bulb, LEFT

W/O FOG LAMPS

$29.68 $22.26
9 90084-98033 90084-98033 / Headlamp Bulb, RIGHT

W/O FOG LAMPS

$29.68 $22.26
9 90084-98033 90084-98033 / Headlamp Bulb

PREVIA

$29.68 $22.26
11 81125-95D01 81125-95D01 / Cable

W/O FOG LAMPS

$28.42 $21.32
12 81169-95D01 81169-95D01 / Bearing, LEFT

W/O FOG LAMPS

$6.69 $5.02

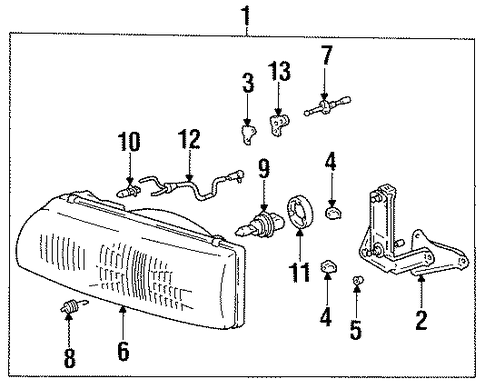

No. Part # Part # / Description List Price Price
1 81110-28310 81110-28310 / Headlamp Assembly, RIGHT

W/FOG LAMPS

$316.02 $237.02
1 81150-28310 81150-28310 / Headlamp Assembly, LEFT

W/FOG LAMPS

$316.02 $237.02
2 81119-28310 81119-28310 / Headlamp Assembly Bracket, RIGHT

W/FOG LAMPS, OUTER

$21.72 $16.29
2 81159-95D01 81159-95D01 / Headlamp Assembly Bracket, LEFT

W/FOG LAMPS, OUTER

$22.07 $16.55
3 81118-95D01 81118-95D01 / Headlamp Assembly Bracket, RIGHT

W/FOG LAMPS, INNER

$4.57 $3.43
4 81128-22630 81128-22630 / Headlamp Assembly Retainer, LEFT

W/FOG LAMPS, UPPER

$2.64 $1.98
5 90075-10805 90075-10805 / Headlamp Assembly Retainer, RIGHT

W/FOG LAMPS, LOWER

$1.15 $0.86
6 81170-28310 81170-28310 / Lens & Housing, LEFT

W/FOG LAMPS

$260.37 $195.28
6 81130-28310 81130-28310 / Lens & Housing, RIGHT

W/FOG LAMPS

$260.37 $195.28
8 90075-25505 90075-25505 / Spring, RIGHT

W/FOG LAMPS

$5.09 $3.82
10 90981-13027 90981-13027 / Fog Lamp Bulb, LEFT

W/FOG LAMPS

$23.73 $17.80
10 90981-13027 90981-13027 / Fog Lamp Bulb, RIGHT

W/FOG LAMPS

$23.73 $17.80
11 90075-99095 90075-99095 / Retainer Ring, RIGHT

W/FOG LAMPS

$7.01 $5.26
11 90075-99095 90075-99095 / Retainer Ring, LEFT

W/FOG LAMPS

$7.01 $5.26
13 81129-95D01 81129-95D01 / Bearing, RIGHT

W/FOG LAMPS

$6.75 $5.06
No. Part # Part # / Description List Price Price
N/A 81192-28010 81192-28010 / Headlamp Bulb Seal, LEFT

W/O FOG LAMPS

$1.58 $1.19
N/A 81192-28010 81192-28010 / Headlamp Bulb Seal, RIGHT

W/FOG LAMPS

$1.58 $1.19
N/A 81192-28020 81192-28020 / Fog Lamp Bulb Seal, LEFT

W/FOG LAMPS

$9.97 $7.48
N/A 81192-28020 81192-28020 / Fog Lamp Bulb Seal, RIGHT

W/FOG LAMPS

$9.97 $7.48
No. Part # Part # / Description List Price Price
N/A 90075-99094 90075-99094 / Socket Cover

W/FOG LAMPS

$11.03 $8.27
N/A 90075-99094 90075-99094 / Socket Cover, RIGHT

W/O FOG LAMPS

$11.03 $8.27
N/A 90075-99094 90075-99094 / Socket Cover, LEFT

W/O FOG LAMPS

$11.03 $8.27
