FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 1996 Toyota Land Cruiser

Select FUEL SYSTEM COMPONENTS Part

1996 Toyota Land Cruiser

Change vehicle

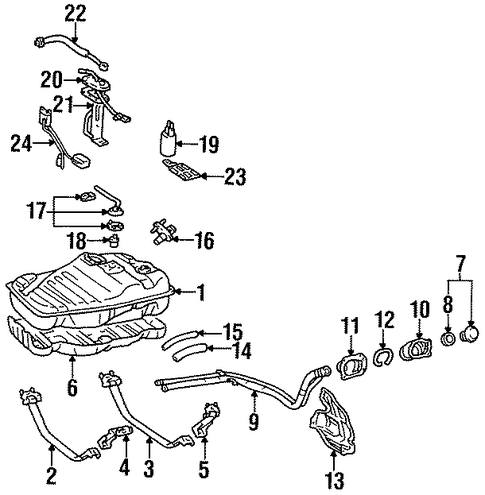

No. Part # Part # / Description List Price Price
1 77001-69036 77001-69036 / Fuel Tank

$896.99 $672.74
2 77601-60150 77601-60150 / Fuel Tank Mount Strap, RIGHT

$92.14 $69.11
3 77602-60060 77602-60060 / Fuel Tank Mount Strap, LEFT

$100.36 $75.27
4 77603-60010 77603-60010 / Fuel Tank Bracket, RIGHT

$50.71 $38.03
5 77604-60010 77604-60010 / Fuel Tank Bracket, LEFT

$50.71 $38.03
6 77606-60070 77606-60070 / Skid Plate

$403.57 $302.68
7 77310-35080 77310-35080 / Filler Cap

$29.36 $22.02
8 77316-16010 77316-16010 / Filler Cap Gasket

$16.41 $12.31
9 77201-60350 77201-60350 / Filler Pipe

$337.78 $253.34
10 77293-60050 77293-60050 / Filler Pipe Shield

UPPER

$16.29 $12.22
11 77290-60010 77290-60010 / Filler Pipe Shield

LOWER

$20.97 $15.73
12 77391-60010 77391-60010 / Filler Pipe Ring

$2.36 $1.77
13 77277-60020 77277-60020 / Protector

$44.28 $33.21
14 77213-60090 77213-60090 / Connector Hose

$28.76 $21.57
15 95311-13022 95311-13022 / Breather Tube

$10.40 $7.80
16 77011-60030 77011-60030 / Connector Pipe

$46.43 $34.82
17 77018-60030 77018-60030 / Vent Tube

$41.78 $31.34
18 77380-26010 77380-26010 / Cut-Off Valve

$15.08 $11.31
19 23221-66040 23221-66040 / Fuel Pump

$342.86 $257.15
20 23206-66010 23206-66010 / Fuel Pump Bracket

$103.58 $77.69
21 77169-60010 77169-60010 / Fuel Pump Gasket

$13.56 $10.17
22 23091-61020 23091-61020 / Fuel Pump Tube

$87.86 $65.90
23 23217-16490 23217-16490 / Filter

$13.36 $10.02
24 83320-69055 83320-69055 / Fuel Gauge

$162.51 $121.88
24 83320-69055 83320-69055 / Fuel Gauge Sending Unit

LAND CRUISER

$162.51 $121.88
No. Part # Part # / Description List Price Price
N/A 77178-35030 77178-35030 / Connector Pipe Gasket

$4.08 $3.06
N/A 23209-74080 23209-74080 / Injector

LAND CRUISER

$178.15 $133.61
N/A 23280-75010 23280-75010 / Fuel Pressure Regulator

LAND CRUISER

$150.01 $112.51
No. Part # Part # / Description List Price Price
N/A 78180-60280 78180-60280 / Throttle Cable

LAND CRUISER

$154.29 $115.72
N/A 22270-66011 22270-66011 / Idle Speed Control

LAND CRUISER

$578.21 $433.66
N/A 90987-02004-83 90987-02004-83 / Relay

CIRCUIT OPENING; LAND CRUISER

$11.84 $8.88
